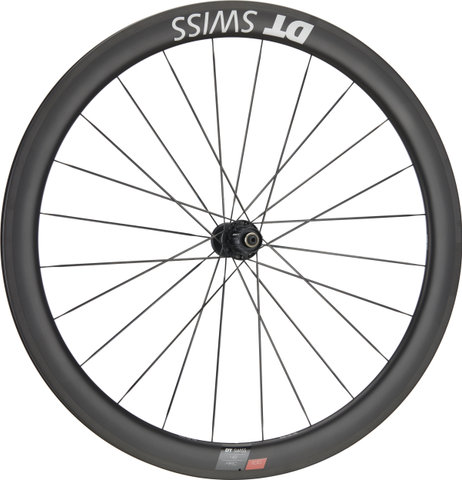

DT Swiss ARC 1100 DICUT 48 Carbon Rim Brake 28" Wheelset
DT Swiss ARC 1100 DICUT 48 rim brake 28" wheelset- high-performance with improved aerodynamics
The ARC 1100 DICUT wheelset from DT Swiss gives your road bike with rim brakes improved aerodynamics. The carbon rim has been redesigned, resulting in an increased rim inner width. Consequently, more comfortable tyre widths of 25 to 28 mm can be ridden on aero or time trial bikes without increasing the rolling resistance. With a 48 mm rim depth the air resistance from the front is low. You also benefit from a light sailing effect during crosswinds. Optimum steering control is achieved by using the streamlined 180 hub and Aerolite II spokes, as the drag created by the wheels is reduced. The Aerolite II straight pull spokes are flat forged and sit securely in the hub with a T-shaped spoke head. The freehub is a Ratchet-EXP freehub with 36 teeth. Idling at the start is kept to a minimum, and leg power is immediately converted into propulsion.
Specifications:
- Application:
- Road, Triathlon & Time Trial
- Wheel Size:
- 28"
- Tyre Type:
- clincher tyre
- Number of Spokes:
- 20 (front), 24 (rear)
- Brake Type:
- rim brake
- Tubeless System:
- Tubeless Ready

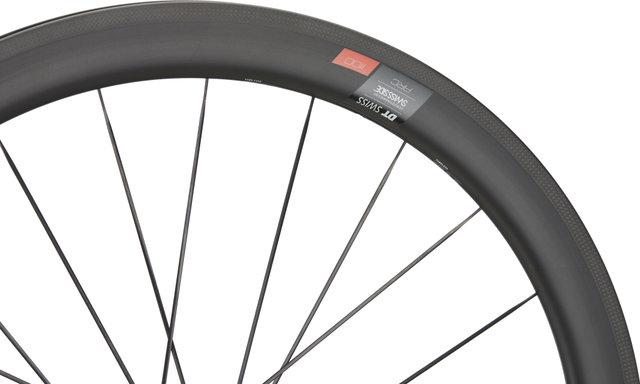

Technical Information - Rim:
- Rim Flange:
- with hook
- Dimensions (ETRTO):
- 17-622
- Inner Width:
- 17 mm
- Outer Width:
- 25 mm
- Depth:
- 48 mm
- Valve Hole Diameter:
- SV/Presta (6.5 mm)
- Rim Material:
- carbon

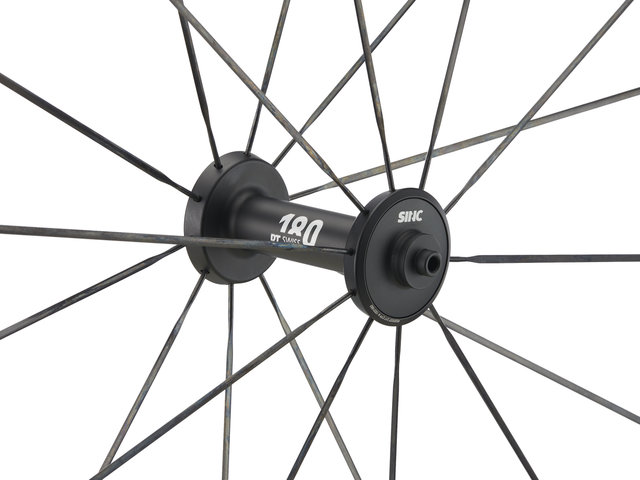

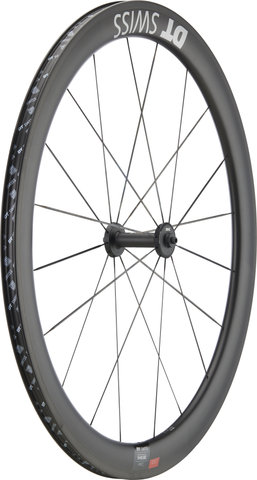

Technical Information - Front Hub:
- Type:
- 180 straight pull
- Over Locknut Dimension:
- 9 x 100 mm quick release
- Bearings:
- Ceramic bearings (SINC)
- Body Material:
- aluminium

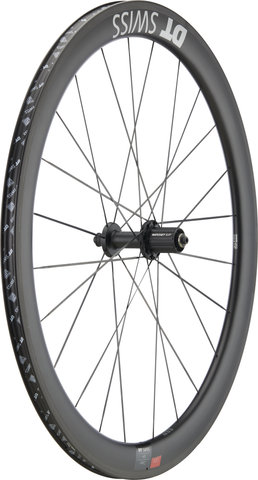

Technical Information - Rear Hub:
- Type:
- 180 straight pull
- Over Locknut Dimension:
- 10 x 130 mm quick release
- Bearings:
- Ceramic bearings (SINC)
- Body Material:
- aluminium
- Freehub Body Material:
- aluminium
- Freehub Body:
- Ratchet EXP 36
Technical Information - Lacing:

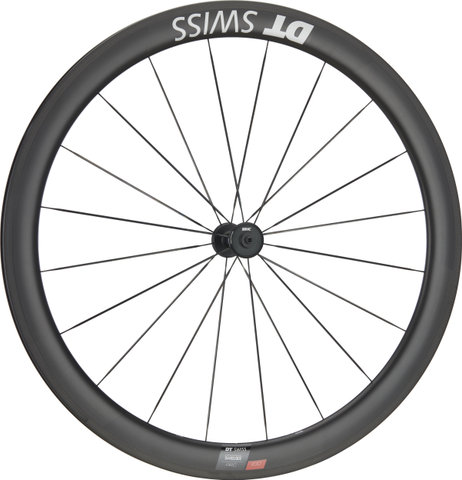

- Front Lacing Pattern:
- radial
- Rear Lacing Pattern:
- radial (L), 2-cross (R)
- Spoke Type:
- DT Aero Comp II T-Head, DT Aerolite II T-Head
- Spoke Material:
- stainless steel
- Nipple Type:
- DT Pro Lock Hidden
- Nipple Material:
- aluminium
Approved For:
- Weight Limit:
- 100 kg (system weight)
- Air Pressure (max.):
- see user manual (Tire Pressure and Dimension)
- Recommended Tyre Width:
- see user manual (Tire Pressure and Dimension)
Technology:
Intended use - Category 1Suitable for predominantly paved surfaces.

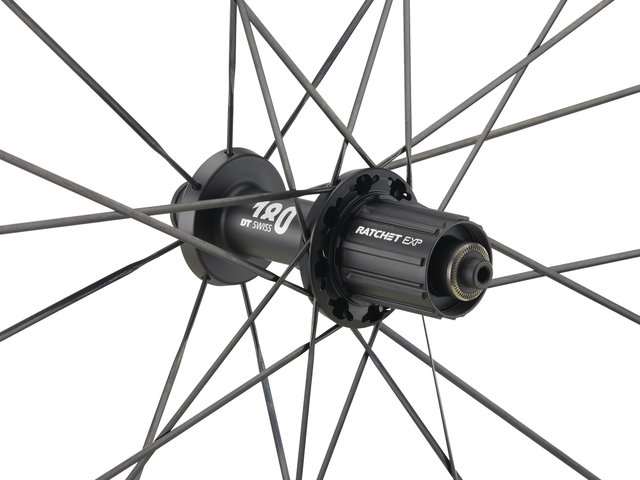

Ratchet EXP
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.
Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.
Models:
28" set (front 9x100 + rear 10x130) Shimano:- Freehub:
- Shimano Road
- Gearing:
- 8-/9-/10-/11-/12-speed
- Note:
- Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.
- Manufacturer Numbers:
- WARC110AAQXCA19309 + WARC110HRQJCA19310

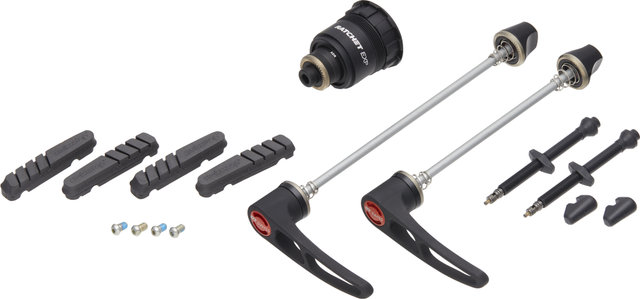

Contents:

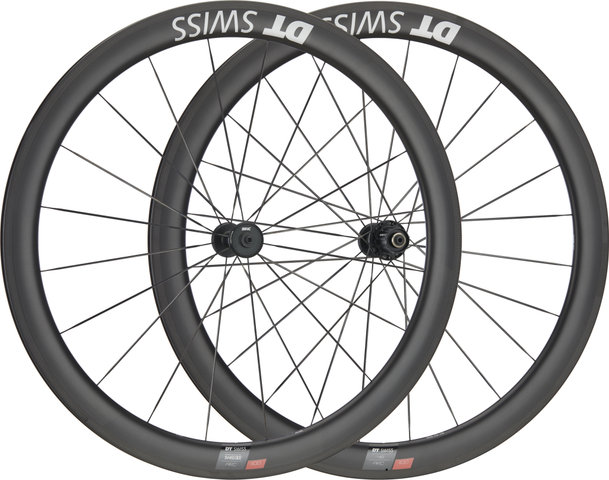

- 1 x DT Swiss ARC 1100 DICUT 48 Carbon rim brake wheelset (front wheel and rear wheel)
- 1 x DT Swiss SRAM XDR freehub body
- 2 pair of Swissstop Black Prince rim brake pads

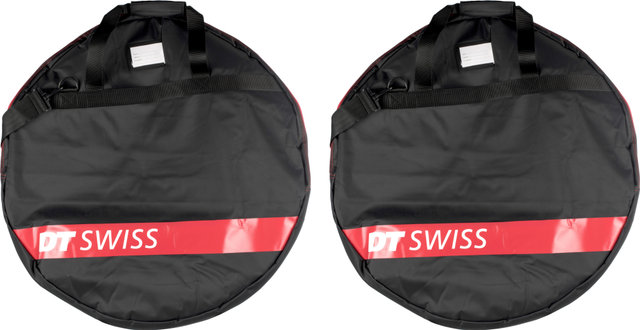

- 2 x DT Swiss wheel bags
- 2 x DT Swiss tubeless valves
- 2 x rolls DT Swiss tubeless rim tape
