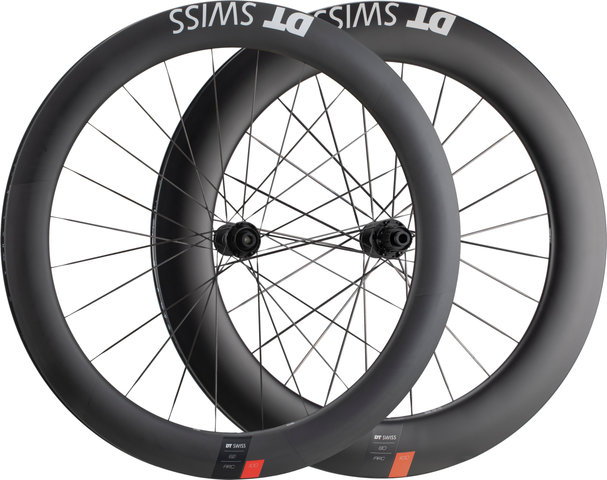

DT Swiss ARC 1100 DICUT 62/80 Carbon Disc Centre Lock 28" Wheelset

DT Swiss ARC 1100 DICUT 62/80 Carbon Disc Centre Lock 28" wheelset - aerodynamic fine-tuning for the road bike

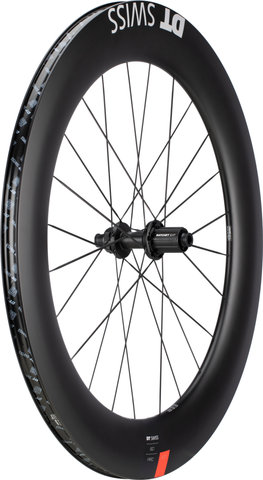

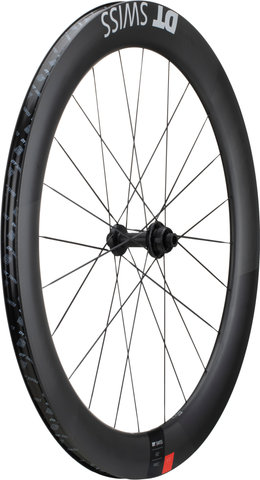

With the ARC 1100 DICUT wheelset from DT Swiss you can optimise the aerodynamics of your road bike. The rim depth of the front wheel is 62 mm. The rear wheel measures a rim depth of a whole 80 mm. With a rim depth of 62 mm, the air resistance from the front is still low enough to provide good steering control. At a depth of 80 mm at the rear you benefit from a strong sailing effect during crosswinds. The redesign of the carbon rim has resulted in a larger inner rim width. The 20 mm which were gained, allow more comfortable tyre widths of 25 - 28 mm to be used on aero or time trial bikes. At the same time, the rolling resistance remains low. The 180 hub and the new Aerolite II spokes optimise the aerodynamics of the wheels. The Aerolite II spokes are flat forged and have a T-shaped spoke head, which makes them sit securely in the hub. The freehub is a Ratchet EXP freehub with 36 teeth. Unwanted idling at the start is thus kept to a minimum and your leg power is immediately converted into forward drive.

Specifications:

Application:

Road, Triathlon & Time Trial

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

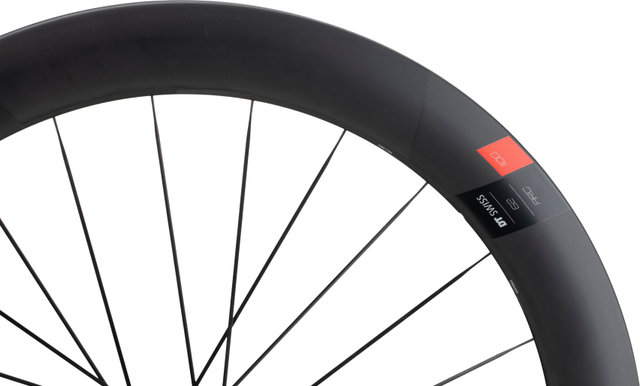

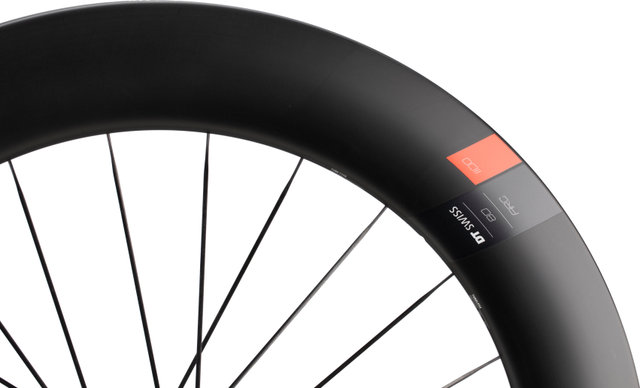

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

20-622

Inner Width:

20 mm

Outer Width:

27 mm (front), 32 mm (rear)

Depth:

62 mm (front), 80 mm (rear)

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

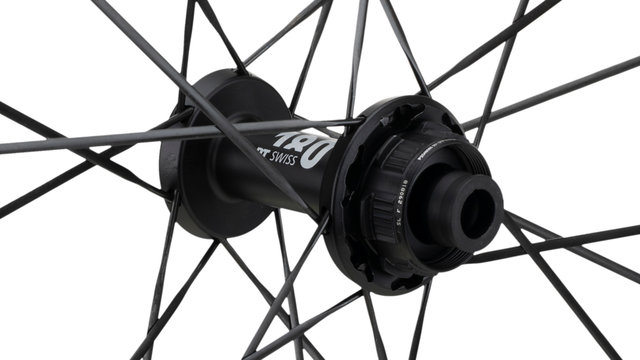

Technical Information - Front Hub:

Type:

180 straight pull

Over Locknut Dimension:

12 x 100 mm thru-axle, convertible to 9 x 100 mm quick release

Bearings:

Ceramic bearings (SINC)

Body Material:

aluminium

Technical Information - Rear Hub:

Type:

180 straight pull

Over Locknut Dimension:

12 x 142 mm thru-axle, convertible to 10 x 135 mm quick release

Bearings:

Ceramic bearings (SINC)

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Ratchet EXP 36

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

DT Aerolite II T-Head

Spoke Material:

stainless steel

Nipple Type:

DT Pro Lock Hidden

Nipple Size:

12 mm (length) / 2 mm (diameter)

Nipple Material:

aluminium

Approved For:

Weight Limit:

110 kg (system weight)

Air Pressure (max.):

8.5 bars

Recommended Tyre Width:

25 - 34 mm

Technology:

Intended use - Category 1:
Suitable for predominantly paved surfaces.

SINC:
Robust steel bearing rings are combined with ceramic balls. This means that the rolling resistance is low. The rolling resistance is further reduced by the seal on the outside and a protective ring on the inside. Furthermore, the combination of materials prevents corrosion between the ring and balls. This increases the durability of the ball bearings.

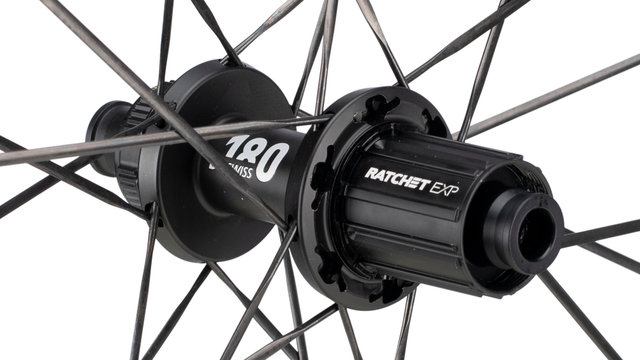

Ratchet EXP:
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

Pro Lock:
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Colour Index:

black:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.

Manufacturer Numbers:

WARC110AIDXCA12564 + WARC110NIDJCA12558

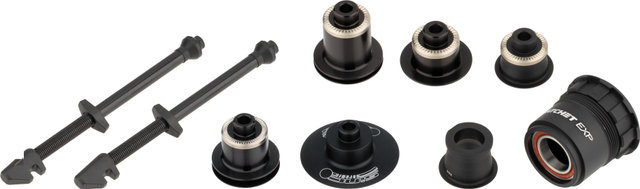

Contents:

• 1 x DT Swiss ARC 1100 DICUT carbon wheelset (front and rear wheel)
• 1 x DT Swiss SRAM XDR freehub body
• 2 x DT Swiss wheel bags
• 2 x DT Swiss 5 mm end cap sets
• 2 x DT Swiss tubeless valves
• 2 x rolls DT Swiss tubeless rim tape
