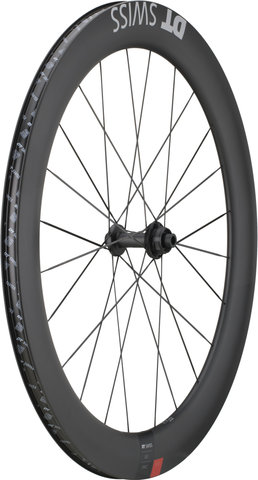

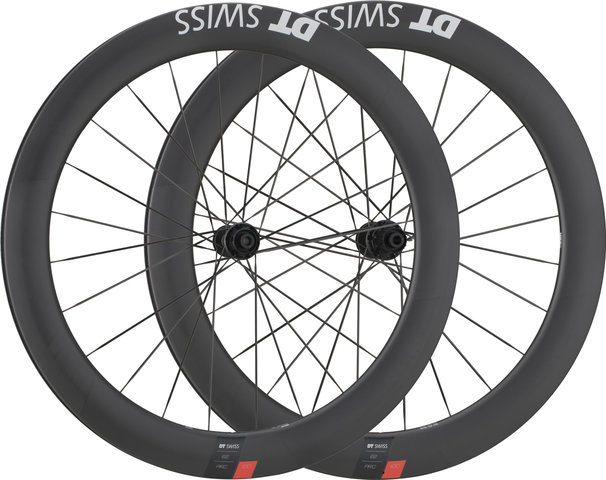

DT Swiss ARC 1100 DICUT 62 Carbon Center Lock Disc 28" Wheelset

DT Swiss ARC 1100 DICUT 62 Carbon Disc Centre Lock 28" wheelset - Aero wheels of medium depth

The ARC 1100 DICUT wheelset from DT Swiss gives your aero or time trial bike improved aerodynamics. The 62 mm deep carbon DICUT rim has received an optimised design. This gives it more inside rim width. Through this change, more comfortable, wider tyres from 25 to 28 mm can also be used on your road bike without increasing the rolling resistance. Despite a rim depth of 62 mm, the steering behaviour can be controlled safely. You also benefit from a noticeable sailing effect during crosswinds. The good steering control is achieved, among other things, by the aerodynamic 180 hub and new Aerolite II spokes. They are able to reduce the air resistance caused by the rotation of the wheels. The flat forged Aerolite II straight pull spokes have a T-shaped spoke head which sits securely in the hub. Due to the advanced freehub technology, from the Ratchet EXP 36 tooth freehub, uncomfortable idling is kept to a minimum so that your pedalling power is immediately available when you push your legs into the pedals.

Specifications:

Application:

Road, Triathlon & Time Trial

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

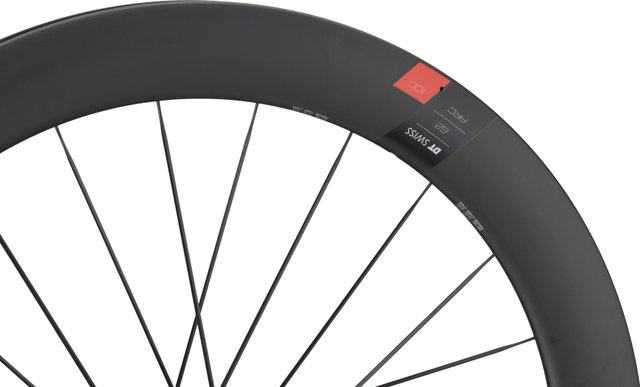

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

20-622

Inner Width:

20 mm

Outer Width:

27 mm

Depth:

62 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

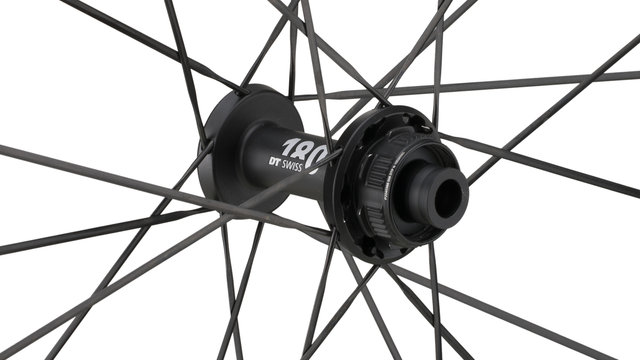

Technical Information - Front Hub:

Type:

180 straight pull

Over Locknut Dimension:

12 x 100 mm thru-axle, convertible to 9 x 100 mm quick release

Bearings:

Ceramic bearings (SINC)

Body Material:

aluminium

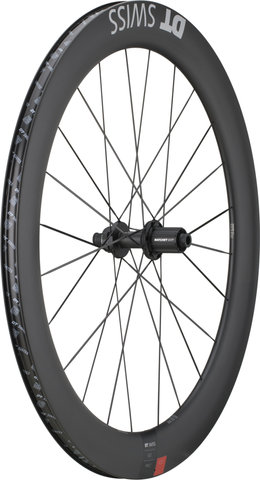

Technical Information - Rear Hub:

Type:

180 straight pull

Over Locknut Dimension:

12 x 142 mm thru-axle, convertible to 10 x 135 mm quick release

Bearings:

Ceramic bearings (SINC)

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Ratchet EXP 36

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

DT Aerolite II T-Head

Spoke Material:

stainless steel

Nipple Type:

DT Pro Lock Hidden

Nipple Size:

12 mm (length) / 2 mm (diameter)

Nipple Material:

aluminium

Approved For:

Weight Limit:

110 kg (system weight)

Air Pressure (max.):

8.5 bars

Recommended Tyre Width:

25 - 34 mm

Technology:

Intended use - Category 1
Suitable for predominantly paved surfaces.

SINC
Robust steel bearing rings are combined with ceramic balls. This means that the rolling resistance is low. The rolling resistance is further reduced by the seal on the outside and a protective ring on the inside. Furthermore, the combination of materials prevents corrosion between the ring and balls. This increases the durability of the ball bearings.

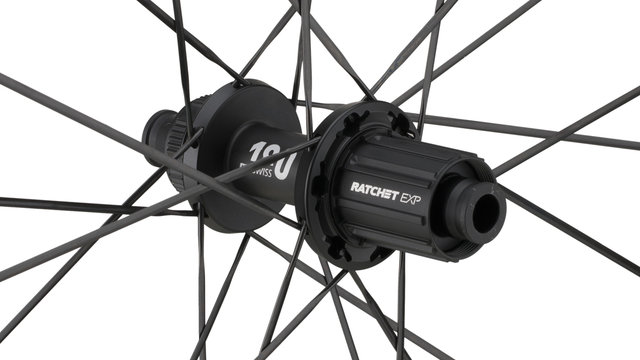

Ratchet EXP
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Colour Info:

black:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.

Manufacturer Numbers:

WARC110AIDXCA12564 + WARC110NIDJCA12565

Contents:

• 1 x DT Swiss ARC 1100 DICUT carbon wheelset (front and rear wheel)
• 1 x DT Swiss SRAM XDR freehub body
• 2 x DT Swiss wheel bags
• 2 x DT Swiss tubeless valves
• 2 x rolls DT Swiss tubeless rim tape
