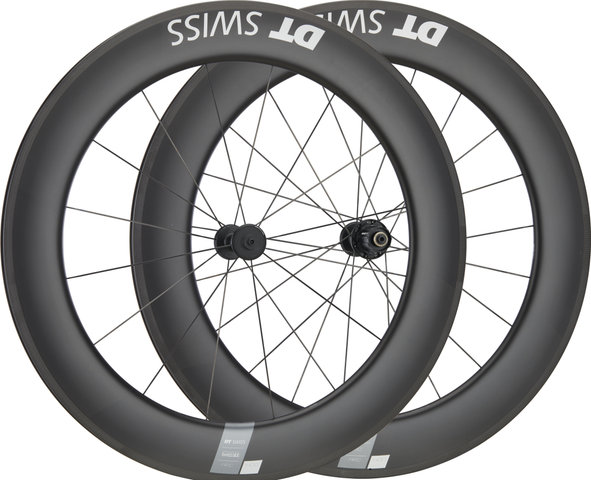

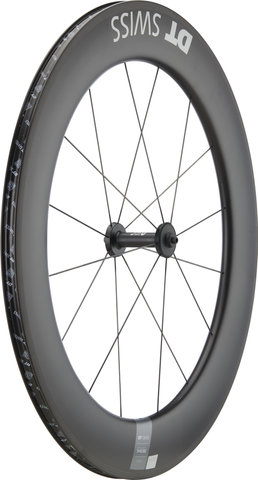

DT Swiss ARC 1400 DICUT 80 Carbon Rim Brake 28" Wheelset

DT Swiss ARC 1400 DICUT 80 Carbon rim brake 28" wheelset - noticeably strong sailing effect

Using the ARC 1400 DICUT wheelset from DT Swiss you can optimise the aerodynamics of your triathlon or time trial bike with rim brakes. The 80 mm deep DICUT carbon rim has undergone a redesign which has allowed the rim to be enlarged. This means that wider and more comfortable 25 to 28 mm tyres can be used on aero bikes without increasing rolling resistance. The streamlined 240 hub forms the heart of the wheels and is connected to the rim by Aero Comp straight pull spokes with T-shaped spoke heads. The whole wheel has been designed in such a way that there is a clearly noticeable sailing effect in crosswinds. It is even possible to achieve a negative air resistance, which pushes the road bike forward. To help you get the most out of your leg power, the rear wheel features the advanced Ratchet-EXP freehubs. It has 36 teeth, which ensure direct power transmission. Unwanted idling during the start is kept as short as possible.

Specifications:

Application:

Road, Triathlon & Time Trial

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

16 (front), 21 (rear)

Brake Type:

rim brake

Tubeless System:

Tubeless Ready

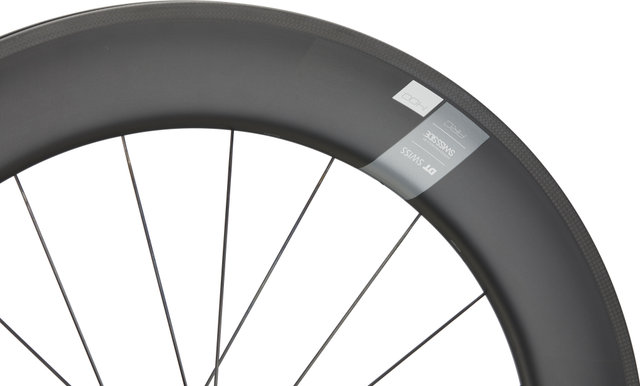

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

17-622

Inner Width:

17 mm

Outer Width:

28 mm

Depth:

80 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

carbon

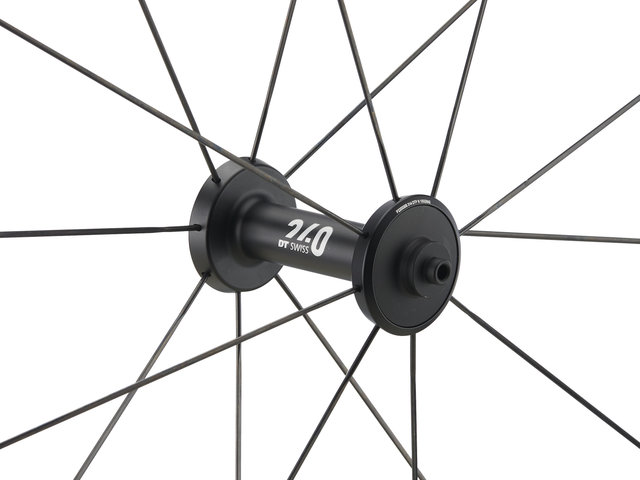

Technical Information - Front Hub:

Type:

240 straight pull

Over Locknut Dimension:

9 x 100 mm quick release

Bearings:

steel bearings

Body Material:

aluminium

Technical Information - Rear Hub:

Type:

240 straight pull

Over Locknut Dimension:

10 x 130 mm quick release

Bearings:

steel bearings

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Ratchet EXP 36

Technical Information - Lacing:

Front Lacing Pattern:

radial

Rear Lacing Pattern:

radial (L), 2-cross (R)

Spoke Type:

DT Aero Comp T-Head

Spoke Material:

stainless steel

Nipple Type:

DT Pro Lock Hidden

Nipple Material:

aluminium

Approved For:

Weight Limit:

100 kg (system weight)

Air Pressure (max.):

see user manual (Tire Pressure and Dimension)

Recommended Tyre Width:

see user manual (Tire Pressure and Dimension)

Technology:

Intended use - Category 1
Suitable for predominantly paved surfaces.

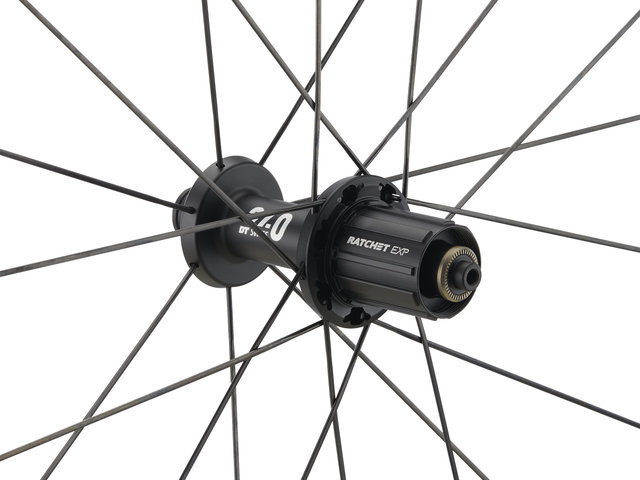

Ratchet EXP
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Models:

28" set (front 9x100 + rear 10x130) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.

Manufacturer Numbers:

WARC140AAQXCA19317 + WARC140HRQICA19318

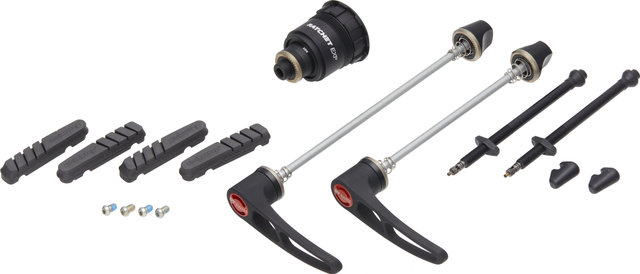

Contents:

• 1 x DT Swiss ARC 1400 DICUT 80 Carbon rim brake wheelset (front wheel and rear wheel)
• 1 x DT Swiss SRAM XDR freehub body
• 2 pair of Swissstop Black Prince rim brake pads
• 2 x DT Swiss tubeless valves
• 2 x rolls DT Swiss tubeless rim tape
