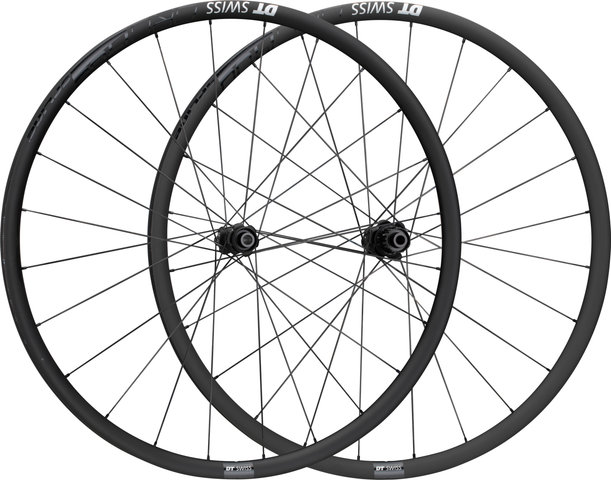

DT Swiss CRC 1400 SPLINE Center Lock Disc 24 28" Wheelset

The DT Swiss CRC SPLINE Center Lock Disc wheelset - carbon for cyclocross racing

The CRC 1400 SPLINE® DB 24 - a wheelset for all challenges off the beaten path. No matter if you're cross racing, gravel adventure or a weekly cross ride with colleagues, these wheels are a lot of fun on your bike. The tubeless ready carbon rim with 240s hub combines reliability & outstanding performance in tough, off-road cross-country use. Optimised for use with extra wide tubeless tyres, the combination of low weight, comfort and grip is sure to win you over. Time for new adventures off the beaten path!

Specifications:

Application:

Cyclocross

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

Freehub Compatibility:

Shimano Freehub:

8/9/10/11-speed Shimano/SRAM (Road)

Note:

To convert to 11-/12-speed SRAM XDR, an XDR freehub body is required.

Technical Information - Rim:

Dimensions (ETRTO):

23-622

Inner Width:

23 mm

Outer Width:

28 mm

Depth:

24 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

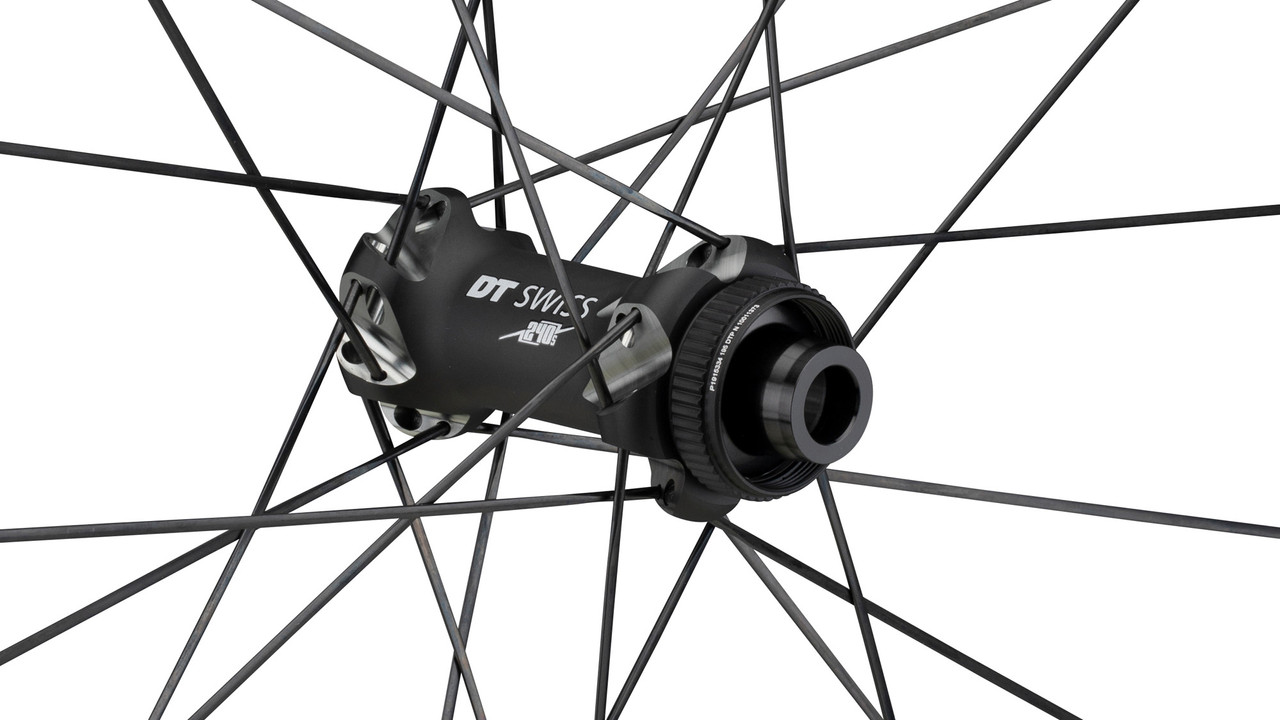

Technical Information - Front Hub:

Type:

240s

Over Locknut Dimension:

12 x 100 mm thru-axle

Body Material:

aluminium

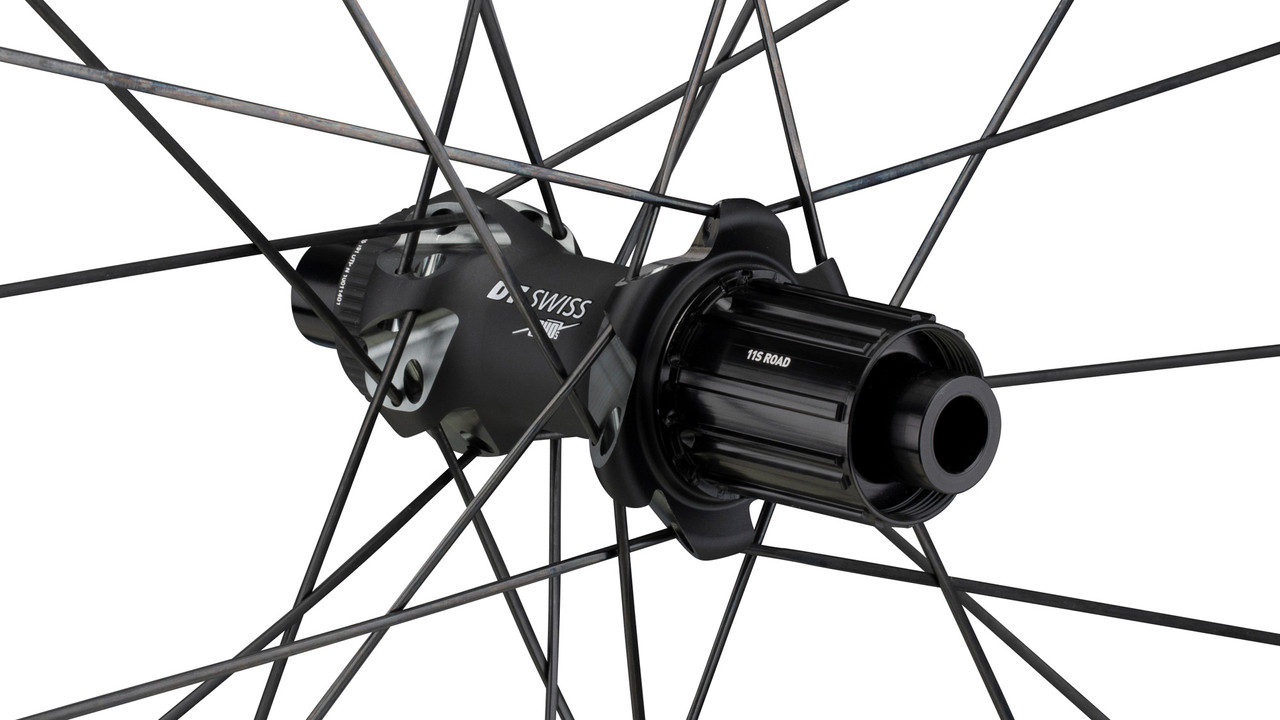

Technical Information - Rear Hub:

Type:

240s

Over Locknut Dimension:

12 x 142 mm thru-axle

Body Material:

aluminium

Freehub Body:

DT Swiss Ratchet System® (36 T)

Technical Information - Lacing:

Front Lacing Pattern:

1-cross

Rear Lacing Pattern:

1-cross

Spoke Type:

DT Aero Comp® / straight pull

Spoke Material:

steel

Nipple Type:

DT Pro Lock Squorx ProHead

Nipple Material:

aluminium

Approved For:

Weight Limit:

130 kg (system weight)

Air Pressure (max.):

7.8 bars

Recommended Tyre Width:

28 - 62 mm (1.1 - 2.5" )

Technology:

Pro Lock
The screw-locking system injected into the nipples enables the construction of extremely durable wheels.

SPLINE®
The SPLINE® line features new and lightweight straight pull hubs with well-known DT Swiss technology, straight spokes as well as stable rims. The combination of reliable and ideally matched components makes every SPLINE® wheel the perfect training and competition partner.

Straight Pull
In order to achieve an ideal ratio of weight and stability, many DT Swiss wheels use different forms of straight pull spokes. Straight pull spokes do not need a spoke bend and thus eliminate a weak point. Nevertheless, they can be trued and replaced with standard tools.

Tubeless Ready
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

Manufacturer Numbers:

WCRC140AIDXCA07129 + WCRC140NIDJCA07130

Contents:

• 1 x DT Swiss CRC 1400 SPLINE® DB 24 wheelset (front and rear wheel)
• 2 x DT Swiss road 32 mm tubeless valves
• 2 x roll DT Swiss 25 mm rim tape
