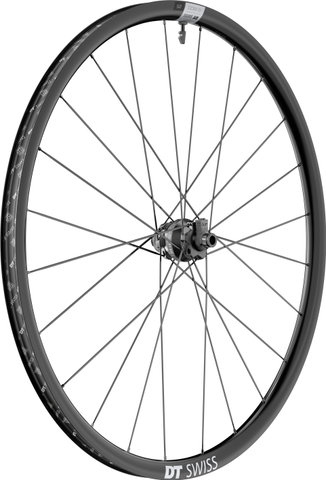

DT Swiss DT Swiss G 1800 SPLINE DYN 25 Center Lock Disc 28" Wheel

Information regarding the return of batteries and electrical equipment:

You can find information on the return and disposal of used batteries, accumulators, and electrical equipment here.

Specifications:

Application:

Gravel

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

Technical Information – Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

24-622

Inner Width:

24 mm

Depth:

25 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

Technical Information – Front Dynamo Hub:

Type:

DT Swiss 350 hub with Shutter Precision PL-7 Generator

Over Locknut Dimension:

12 x 100 mm thru-axle

Output:

6V/3W (according to StVZO)

Efficiency:

72 % at 15 km/h

Body Material:

aluminium

Wire Connector:

plug, 2-poles

Street Use in Germany:

yes

Technical Information – Lacing:

Lacing Pattern:

2-cross

Spoke Type:

DT Swiss Aero Competition, Wide-Straightpull

Spoke Material:

stainless steel

Approved For:

Weight Limit (Rim):

130 kg system weight (bike + rider + equipment)

Features:

• 28" -wheel with dynamo hub
• Aero spokes by DT Swiss

Manufacturer Number:
W0G1800AIDXSA27425

Contents:

• 1 x DT Swiss G 1800 Spline DYN 25 Center Lock Disc 28“ wheel (front)
• 1 x Dynamo connector
• 1 x Tubeless valve
