DT Swiss E 1800 SPLINE 23 Center Lock Disc 28" Wheelset

DT Swiss E 1800 SPLINE 23 Disc Center Lock 28" wheelset - comfort and fun on endurance rides

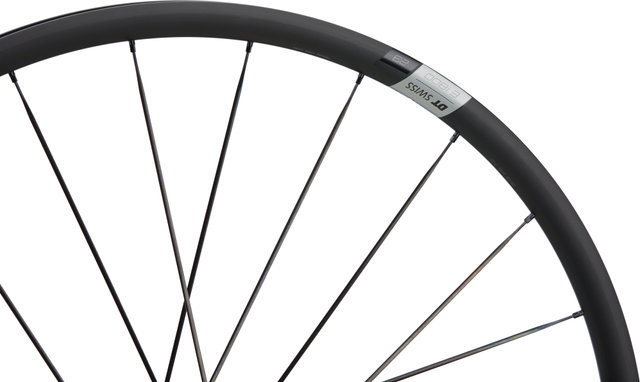

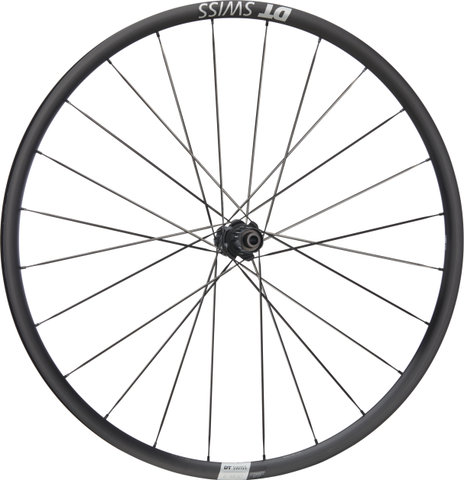

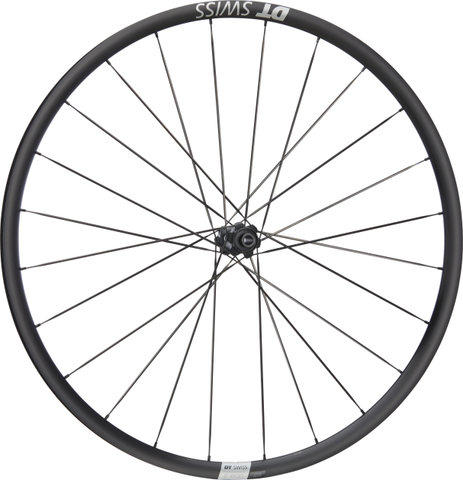

The E 1800 SPLINE 23 wheelset from DT Swiss has 23 mm high aluminium rims and is suitable for experience-oriented, fast endurance rides on a road bike. The internal rim width of 22 mm allows the mounting of tyres up to 34 mm wide, which results in more comfort and stability with low tyre pressure. Of course, you can also ride the wheels without a tube, thanks to the tubeless compatibility of the rims. These were joined together using the sleeve-joint method for extra strength and fitted with a hook on the rim flange, which stabilises the tyre bead. The 370 SPLINE hubs are designed for center-lock brake rotors and straightpull spokes. The rear wheel has a Ratchet LN freehub with an 18-tooth disc and an engagement angle of only 20°. Wear is therefore particularly low and unwanted idling is minimised, which increases your speed. The flat forged DT New Aero II spokes come with self-locking aluminium Pro-Lock Squorx nipples, which in turn contribute to the durability of the E 1800 wheelset.

Specifications:

Application:

Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

Technical Information - Rim:

Type:

DT Swiss E 1800

Rim Flange:

with hook

Dimensions (ETRTO):

22-622

Inner Width:

22 mm

Outer Width:

26 mm

Depth:

23 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

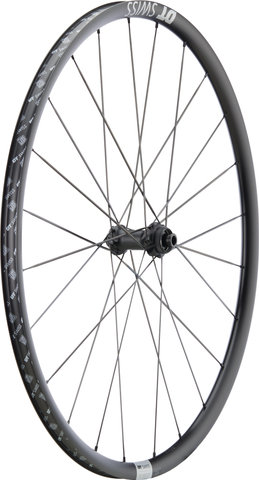

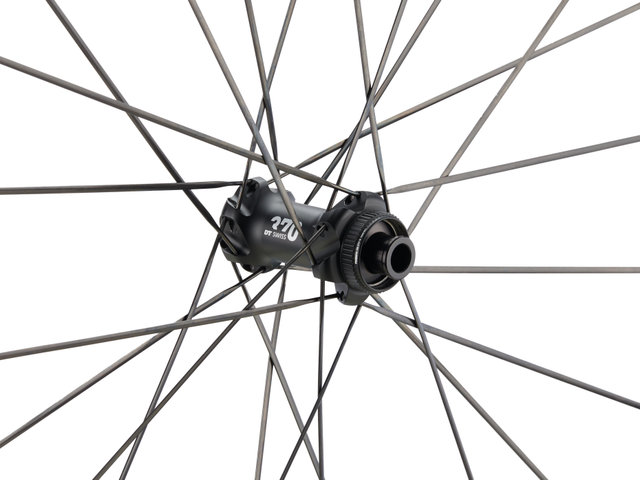

Technical Information - Front Hub:

Type:

DT Swiss 370 SPLINE

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

standard ball bearing 6902

Body Material:

aluminium

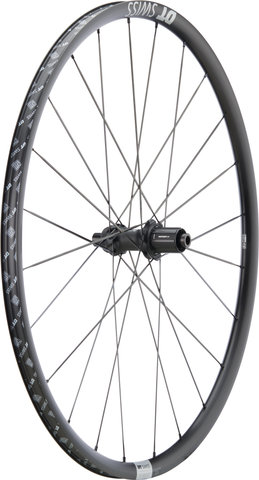

Technical Information - Rear Hub:

Type:

DT Swiss 370 SPLINE

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

standard ball bearing 6902

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Ratchet LN 18

Technical Information - Lacing:

Front Lacing Pattern:

2-cross (1:1)

Rear Lacing Pattern:

2-cross (1:1)

Spoke Type:

DT Swiss New Aero II / Straightpull

Spoke Size:

297 mm/298 mm (front l/r), 298 mm/294 mm (rear l/r)

Spoke Material:

stainless steel (18/10)

Nipple Type:

DT Swiss Pro Lock / Squorx Pro Head

Nipple Size:

15 mm (length) / 2 mm (diameter)

Nipple Material:

aluminium

Approved For:

Weight Limit:

120 kg (system weight)

Air Pressure (max.):

see manufacturer's specifications

Recommended Tyre Width:

see manufacturer's specifications

Features:

• road wheelset with 23 mm high aluminium rims for endurance rides
• 22 mm jaw width for more comfort in combination with wide tyres
• sturdy sleeve joint rim, tubeless compatible and with hooks
• reliable ratchet freehub system for efficient propulsion
• straightpull spokes with improved aerodynamic shape due to flat forging process
• nipple with thread lock for even more safety and durability

Technology:

Intended use: Category 2
Suitable for use on predominantly paved and partially unpaved ground with a slight slope and a temporary loss of ground contact as well as drops of up to 15 cm.

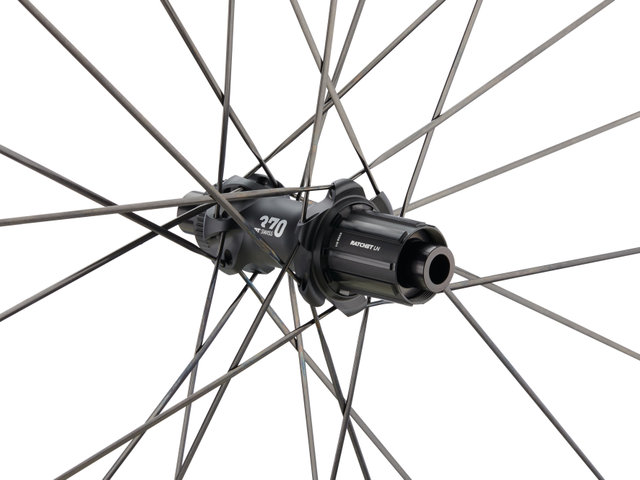

Ratchet LN
The Ratchet LN freehub is used to convert DT Swiss 370 hubs with pawls to a ratchet freehub. The advantage, compared to pawls, is the significantly larger contact surface with improved frictional connection. The seal attached to the freehub body, and not to the hub shell as usual, makes the freehub body easily replaceable. The modular design allows free selection of the engagement angle (18, 24, 36 or 54 teeth) and of the freehub body.

SPLINE
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Colour Info:

black:

• Rims: black with grey decals
• Hubs: black
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 8-/9-/10-speed cassettes on a Shimano road rotor requires a 1.85 mm spacer.

Manufacturer Numbers:

W0E1800AIDXSA21215 + W0E1800NIDMSA21217

28" set (front 12x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Manufacturer Numbers:

W0E1800AIDXSA21215 + W0E1800NID1SA21218

Contents:

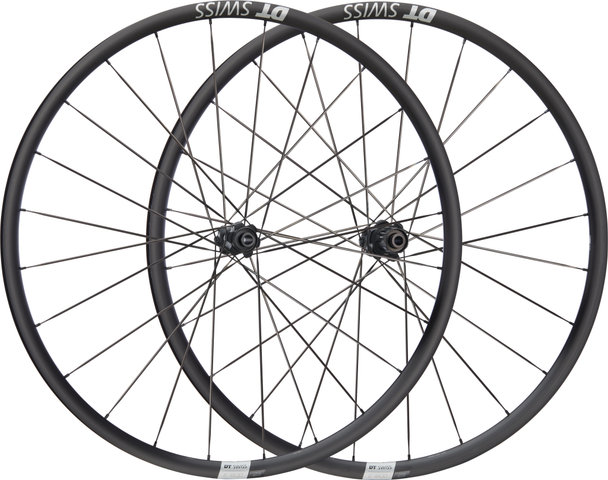

• 1 x DT Swiss E 1800 SPLINE 23 Disc Center Lock 28" wheelset (front wheel and rear wheel)

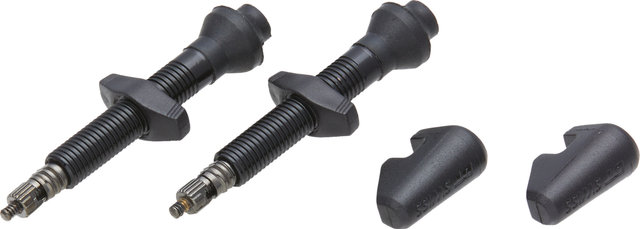

• 2 x DT Swiss 18 - 25 mm aluminium tubeless valves
• 2 x DT Swiss Tubeless 25 mm rim tape (installed)
