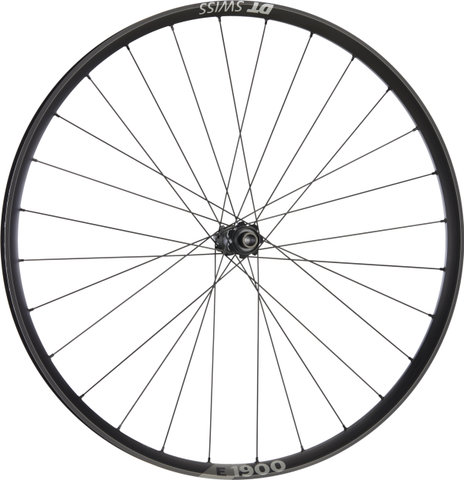

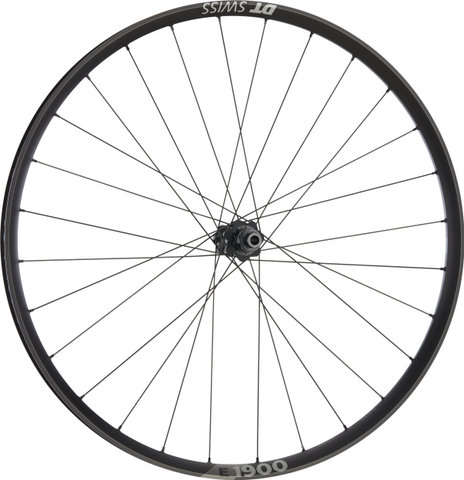

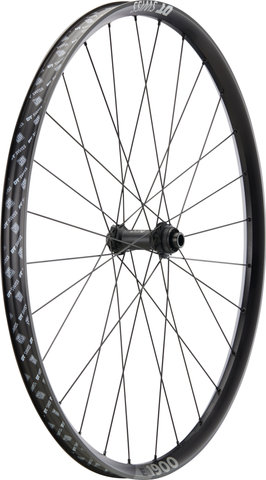

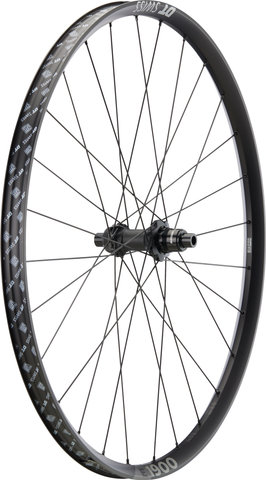

DT Swiss E 1900 SPLINE 30 Boost Center Lock Disc 29" Wheelset

The DT Swiss E 1900 SPLINE 30 Center Lock Disc 29" wheelset for Enduro bikes with Boost

The E 1900 SPLINE wheelset from DT Swiss fits 29" Enduro bikes with Boost standard. The rims have an inner width of 30 mm, which makes them ideal for wide tubeless tyres. If you're looking to enter into enduro, the wheels with 370 SPLINE hub for Center Lock brake rotors are exactly the right choice. You benefit from the Ratchet LN freehub with 18 teeth. The engagement angle of 20° means that wear is particularly low and unwanted idling is minimised. The straight pull spokes are combined with Pro-Lock Squorx nipples, which, in conjunction with the Sleeved Joint rim, results in stable wheels. This means nothing stands in the way of long days on MTB tours or in the bike park.

Specifications:

Application:

Enduro

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

Center Lock Disc (Boost)

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

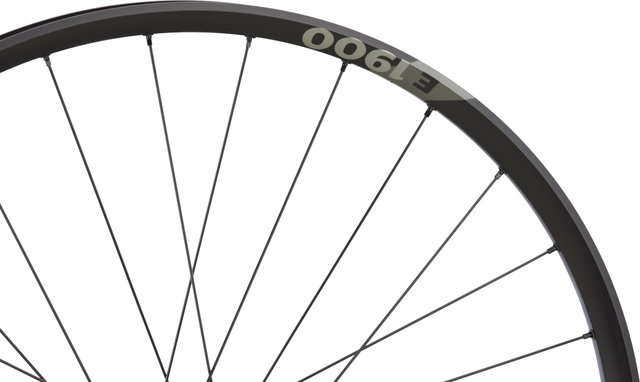

Technical Information - Rim:

Type:

E 532

Rim Flange:

with hook

Dimensions (ETRTO):

30-622

Inner Width:

30 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

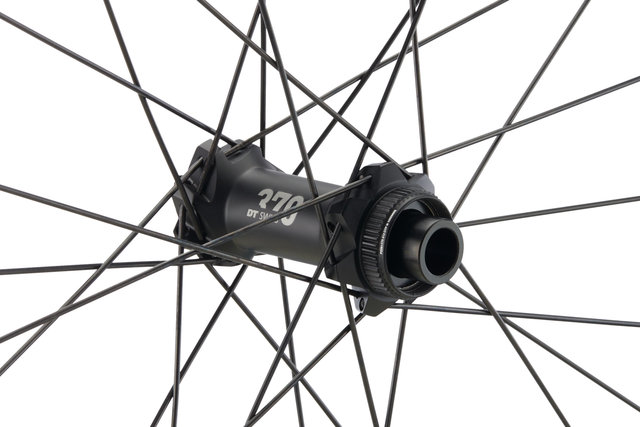

Technical Information - Front Hub:

Type:

370 SPLINE

Over Locknut Dimension:

15 x 110 mm thru-axle

Body Material:

aluminium

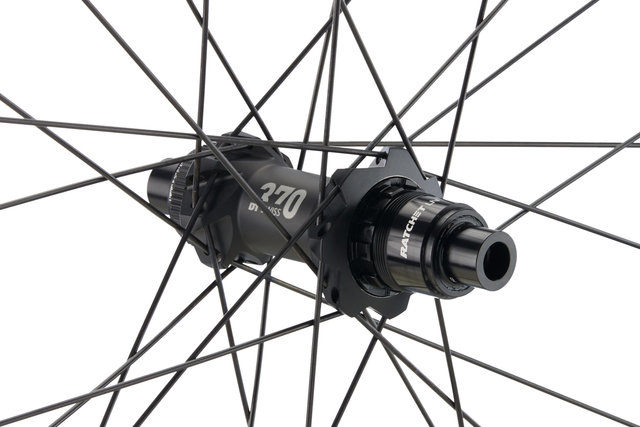

Technical Information - Rear Hub:

Type:

370 SPLINE

Over Locknut Dimension:

12 x 148 mm thru-axle

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Ratchet LN 18

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Champion, straight pull

Spoke Material:

steel

Nipple Type:

DT Pro Lock Squorx

Nipple Material:

aluminium

Approved For:

Weight Limit:

130 kg (system weight)

Air Pressure (max.):

see user manual (Tire Pressure and Dimension)

Recommended Tyre Width:

see user manual (Tire Pressure and Dimension)

Technology:

Intended use - Category 4
Suitable for use in very rough terrain with jumps of up to approx. 120 cm in height and speeds of up to 40 km/h. Very good riding technique is required. The components must be checked for damage after each ride.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Ratchet LN
The Ratchet LN freehub is used to convert DT Swiss 370 hubs with pawls to a ratchet freehub. The advantage, compared to pawls, is the significantly larger contact surface with improved frictional connection. The seal attached to the freehub body, and not to the hub shell as usual, makes the freehub body easily replaceable. The modular design allows free selection of the engagement angle (18, 24, 36 or 54 teeth) and of the freehub body.

SPLINE
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Colour Info:

black:

• Rims: black with grey decals
• Hubs: black
• Spokes: black
• Nipples: black

Models:

29" set (front 15x110 Boost + rear 12x148 Boost) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Numbers:

W0E1900BEIXSA18815 (front) + W0E1900TEDLSA18817 (rear)

29" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Numbers:

W0E1900BEIXSA18815 (front) + W0E1900TED2SA18816 (rear)

29" set (front 15x110 Boost + rear 12x148 Boost) SRAM XD:

Freehub:

SRAM XD

Gearing:

11-/12-speed

Manufacturer Numbers:

W0E1900BEIXSA18815 (front) + W0E1900TEDRSA18818 (rear)

Contents:

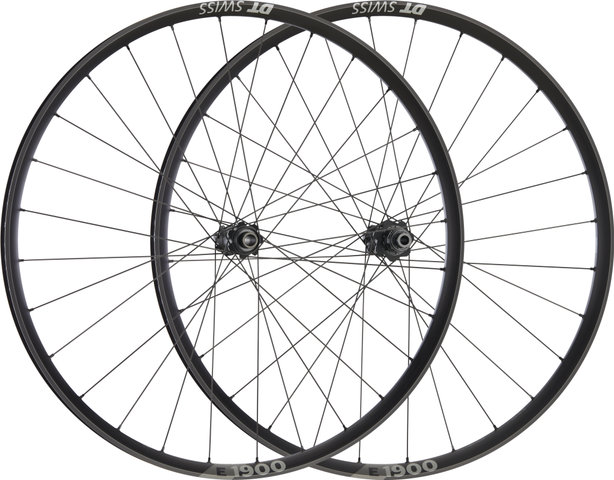

• 1 x DT Swiss E 1900 SPLINE 29" 30 Boost Center Lock Disc Wheelset (front and rear wheel)

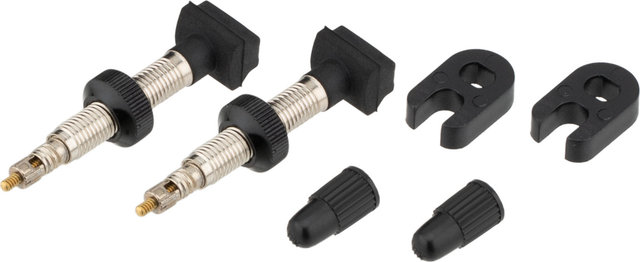

• 2 x DT Swiss tubeless valves
• 2 x rolls DT Swiss tubeless rim tape
