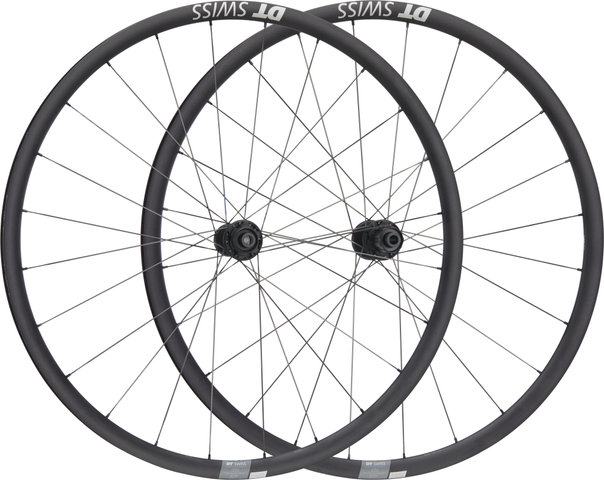

DT Swiss ER 1400 DICUT 25 Disc Center Lock 28" Wheelset

The DT Swiss ER 1400 DICUT 25 Center Lock Disc 28" wheelset - for endurance rides

The ER 1400 DICUT 25 Center Lock Disc 28" wheelset by DT Swiss is suitable for your endurance road bike. With the 25 mm deep rim you are fast in the hills and on the flat. The construction consists of an aerodynamic 240 DICUT hub with straight-pull spokes, Pro Lock nipples as well as a robust rim. This means that you can also master bumps such as cobblestone sectors without any problems. The precise Ratchet EXP freehub is particularly low-wear and has 36 engagement points. This means that you immediately gain propulsion when you push the pedals hard. In addition, maintenance of the ratchet system is particularly easy, as you can disassemble the freehub without tools.

Specifications:

Application:

Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

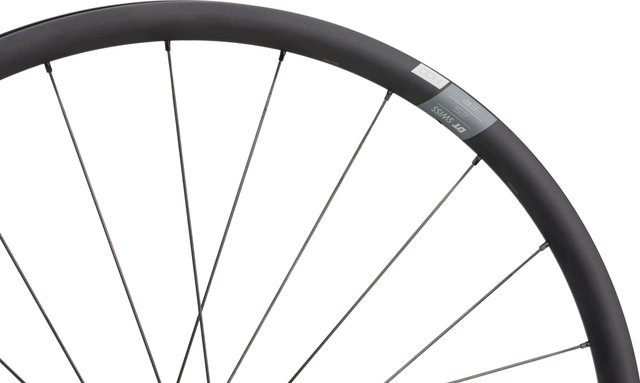

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

22-622

Inner Width:

22 mm

Depth:

25 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

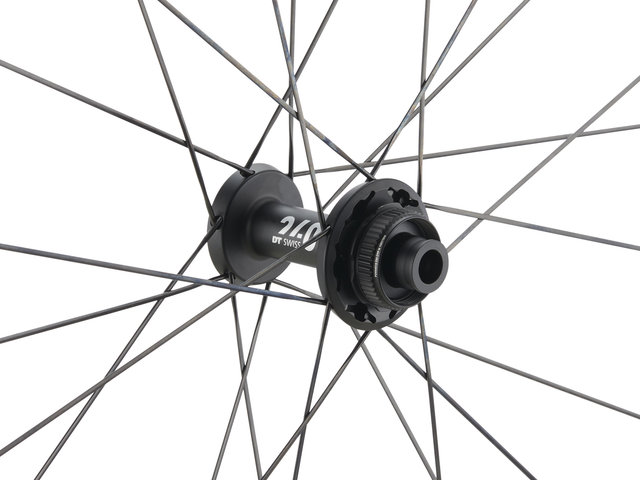

Technical Information - Front Hub:

Type:

240 straight pull

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

steel bearings

Body Material:

aluminium

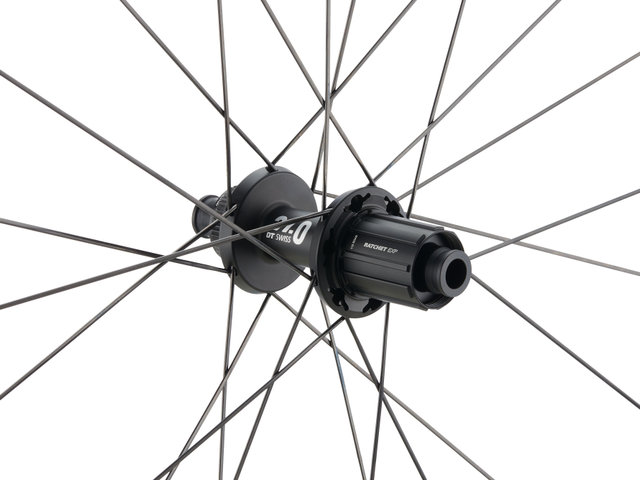

Technical Information - Rear Hub:

Type:

240 straight pull

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

steel bearings

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Ratchet EXP 36

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

front: DT Aero / straight pull, rear: DT Aero Comp / straight pull

Spoke Material:

stainless steel

Nipple Type:

DT Pro Lock Squorx ProHead

Nipple Material:

aluminium

Approved For:

Weight Limit:

120 kg (system weight)

Air Pressure (max.):

see user manual (Tire Pressure and Dimension)

Recommended Tyre Width:

28 mm - 34 mm

Technology:

Intended use: Category 2
Suitable for use on predominantly paved and partially unpaved ground with a slight slope and a temporary loss of ground contact as well as drops of up to 15 cm.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Ratchet EXP
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

SPLINE
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 8-/9-/10-speed cassettes on a Shimano road rotor requires a 1.85 mm spacer.

Manufacturer Numbers:

WER1400AIDXSA20984 + WER1400NIDISA20985

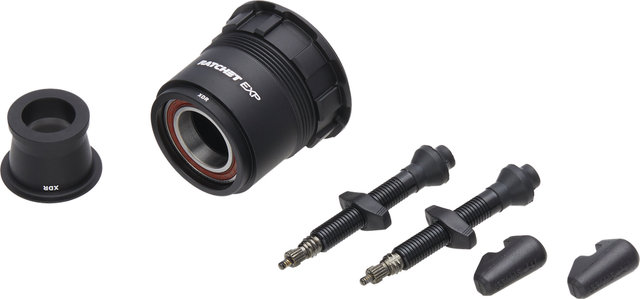

Contents:

• 1 x DT Swiss ER 1400 DICUT 23 Center Lock Disc 28" wheelset (front and rear wheel)
• 2 x rolls DT Swiss rim tape (applied)
• 2 x DT Swiss tubeless valves
• 1 x DT Swiss SRAM XDR freehub
