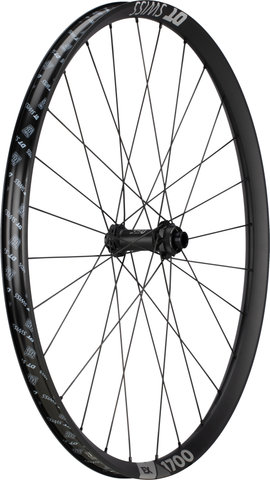

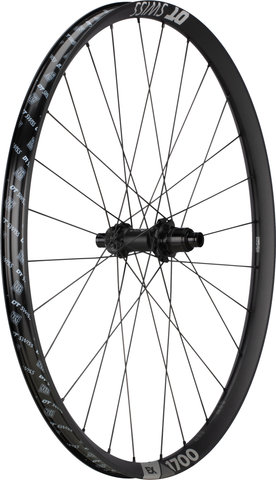

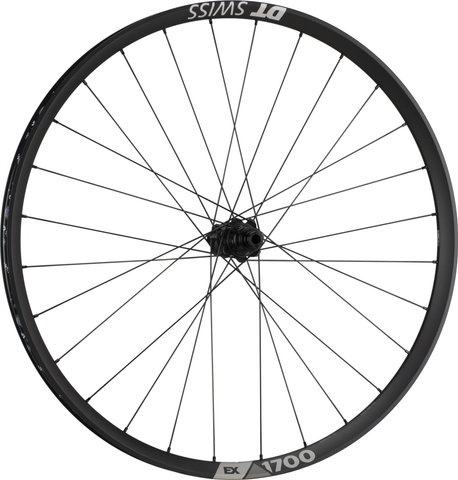

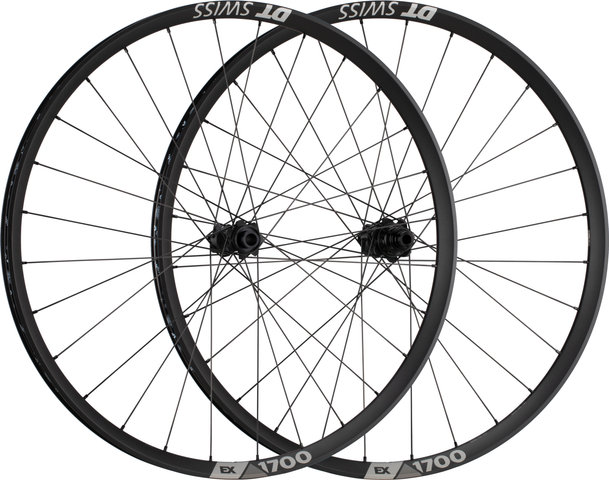

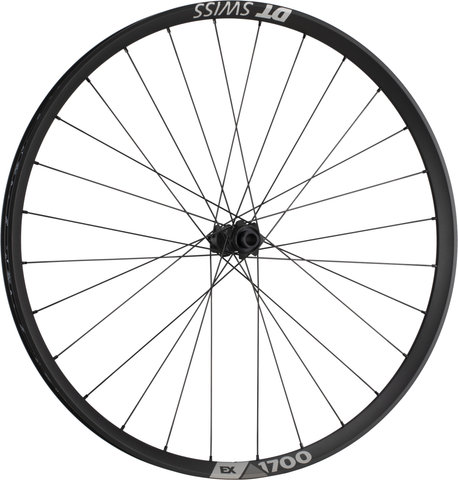

DT Swiss EX 1700 SPLINE 30 Boost Centre Lock Disc 27.5" Wheelset

DT Swiss EX 1700 SPLINE 30 Boost centre lock disc 27.5" wheelset - for the toughest situations

With the EX 1700 SPLINE wheelset from DT Swiss, your 27.5" Enduro bike is equipped for hard trails. At the centre of the reinforced aluminium rims is the robust 350 straight pull hub. The 30 mm inner rim width and the strong Boost hub offer plenty of room for wide tyres and allow you to ride with particularly low tyre pressure. The proven freehub Ratchet System has 36 teeth. As a result, the two ratchets have a large contact surface, which ensures very good power transmission. So you get propulsion without much loss of power. With centre lock brake rotors, the wheelset can withstand even harsher braking manoeuvres on your MTB. This way you always retain control over your bike.

Specifications:

Application:

Enduro

Wheel Size:

27.5" (650B)

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

Center Lock Disc

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

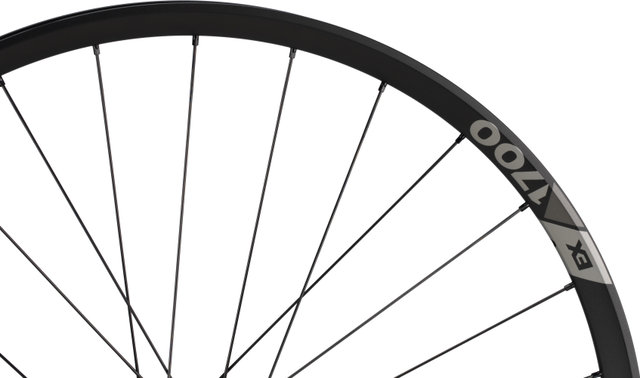

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

30-584

Inner Width:

30 mm

Outer Width:

35 mm

Depth:

21 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

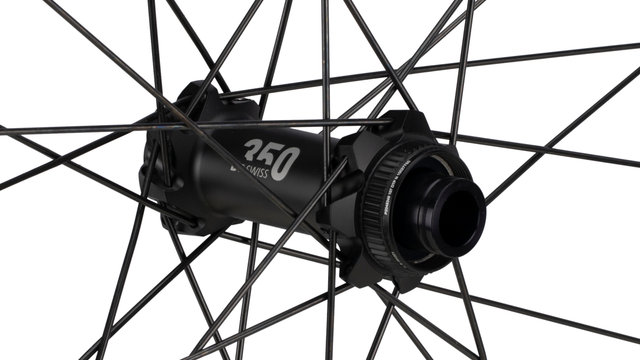

Technical Information - Front Hub:

Type:

350 straight pull

Over Locknut Dimension:

15 x 110 mm thru-axle

Bearings:

steel bearings

Body Material:

aluminium

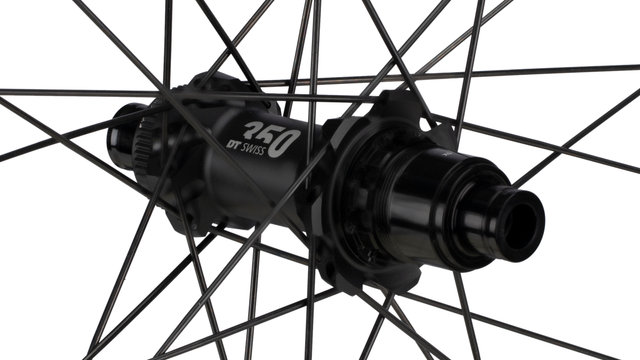

Technical Information - Rear Hub:

Type:

350 straight pull

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

steel bearings

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Ratchet 36 SL

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Competition / straight pull

Spoke Material:

stainless steel

Nipple Type:

DT Pro Lock Squorx Pro Head

Nipple Size:

15 mm (length) / 2 mm (diameter)

Nipple Material:

aluminium

Approved For:

Weight Limit:

130 kg (system weight)

Air Pressure (max.):

see user manual (Tire Pressure and Dimension)

Recommended Tyre Width:

see user manual (Tire Pressure and Dimension)

Technology:

Intended use - Category 4:
Suitable for use in very rough terrain with jumps of up to approx. 120 cm in height and speeds of up to 40 km/h. Very good riding technique is required. The components must be checked for damage after each ride.

SPLINE:
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Ratchet System:
The robust and reliable star ratchets freehub system can be maintained easily and quickly. The no-tool concept contributes to this, because it allows disassembly without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

Pro Lock:
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Colour Index:

black:

• Rims: black with grey decals
• Hubs: black with grey decals
• Spokes: black
• Nipples: black

Models:

27.5" set (front 15x110 Boost + rear 12x148 Boost) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Numbers:

WEX1700BGIXSA11678 + WEX1700TGDBSA13808

27.5" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Numbers:

WEX1700BGIXSA11678 + WEX1700TGD2SA11686

27.5" set (front 15x110 Boost + rear 12x148 Boost) SRAM XD:

Freehub:

SRAM XD

Gearing:

11-/12-speed

Manufacturer Numbers:

WEX1700BGIXSA11678 + WEX1700TGDRSA11687

Contents:

• 1 x DT Swiss EX 1700 SPLINE wheelset (front and rear wheel)

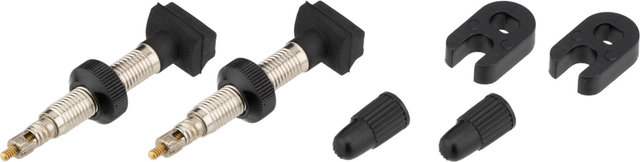

• 2 x DT Swiss tubeless valves
• 2 x rolls DT Swiss tubeless rim tape
