DT Swiss EXC 1200 SPLINE 30 Boost Center Lock Disc 29" Wheelset

A dream for every enduro rider: the EXC 1200 SPLINE 35 wheelset from DT Swiss

DT Swiss designed the EXC 1200 SPLINE® wheelset based on the collective experience of Enduro World Series riders, making it strong enough to satisfy top athletes. The lightweight wheels possess the correct width to ride today's enduro tyres with high pressure. The wheel is complemented by DT Swiss's brand-new Spline 180 hub with Ratchet System®, as well as bladed and butted straight pull spokes.

Specifications:

Application:

Enduro

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

Center Lock Disc (6-bolt conversion w/ adapter)

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

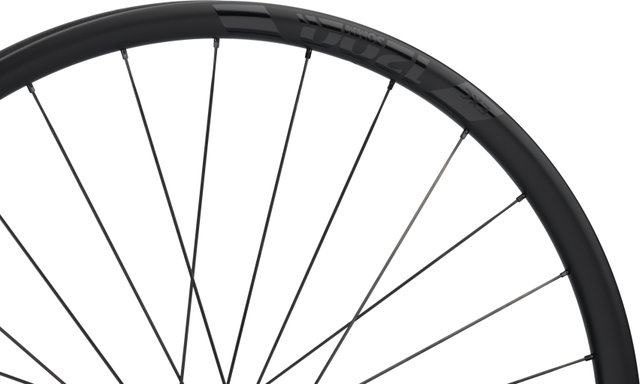

Technical Information - Rim:

Type:

EXC 1200 SPLINE

Dimensions (ETRTO):

30-622

Inner Width:

30.0 mm

Outer Width:

36.0 mm

Depth:

25.0 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

carbon

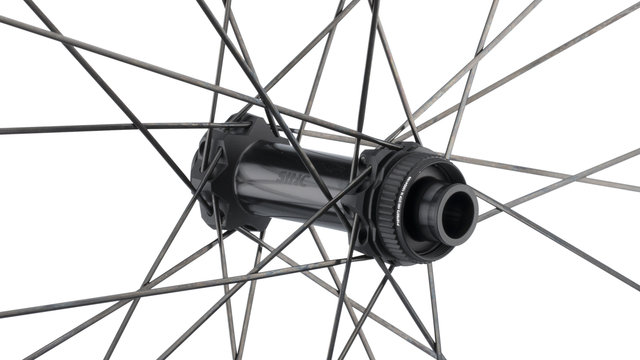

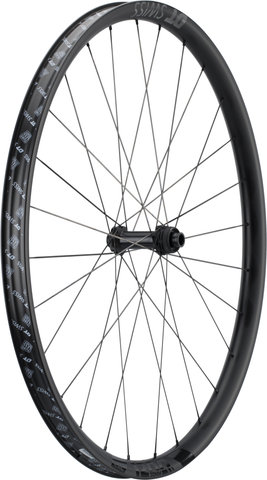

Technical Information - Front Hub:

Type:

SPLINE 180

Over Locknut Dimension:

15 x 110 mm thru-axle

Bearings:

ceramic

Body Material:

carbon

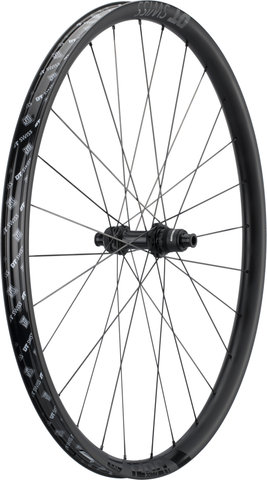

Technical Information - Rear Hub:

Type:

SPLINE 180

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

ceramic

Body Material:

carbon

Freehub Body Material:

steel

Freehub Body:

DT Swiss Ratchet System

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Aerolite® / DT Aero Comp® / straight pull

Spoke Material:

steel

Nipple Type:

DT Pro Lock® Squorx

Nipple Material:

aluminium

Approved For:

Weight Limit:

130 kg system weight (rider + bike + gear)

Air Pressure (max.):

3.8 bar

Recommended Tyre Width:

2.10 - 2.70"

Features:

• Adhesive: Hub Laser Graphic, Alloy rim Waterslide
• 30 mm jaw width

Technology:

SPLINE
The SPLINE line is characterised by straight pull hubs with famous DT Swiss technology, straight spokes as well as stable rims. The combination of reliable and ideally matched components makes every SPLINE wheel the perfect training and competition partner.

DT ProLock Squorx Pro Head
The DT Squorx Pro Head nipple combines ease of assembly and lightweight. With an additional Torx and square drive. The Torx drive provides more contact surface when building wheels, which means that the torque transmitted from the tool to the nipple is better distributed. The spherical contact area in the rim guarantees perfect alignment with the spoke.

Tubeless Ready
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

Straight Pull
In order to achieve an ideal ratio of weight and stability, many DT Swiss wheels use different forms of straight pull spokes. Straight pull spokes do not need a spoke bend and thus eliminate a weak point. Nevertheless, they can be trued and replaced with standard tools.

Colour Index:

UD carbon:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: grey

Models:

29" set (front 15x110 Boost + rear 12x148 Boost) SRAM XD:

• Freehub: SRAM XD
• Gearing: 11-/12-speed
• Manufacturer Numbers: WEXC120BEIXCA09798 (front) + WEXC120TEDRCA09800 (rear)
• Conversion Options: To convert to Shimano Micro Spline, a Micro Spline freehub body is required.

Contents:

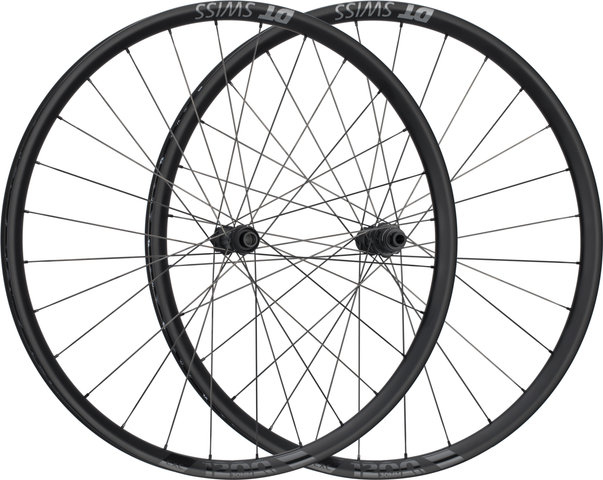

• 1 x DT Swiss EXC 1200 SPLINE 30 wheelset (front and rear wheel)
• 1 x DT Swiss 32 mm tubeless tape roll (front)
• 1 x DT Swiss 27 mm tubeless tape roll (rear)
• 1 x DT Swiss 26 - 35 mm tubeless valve (aluminium / black / front)
• 1 x DT Swiss 18 - 25 mm tubeless valve (aluminium / black / rear)
• 2 x DT Swiss adapters to convert from Center Lock to 6-bolt
• 1 x DT Swiss freehub body to convert to Shimano Micro Spline

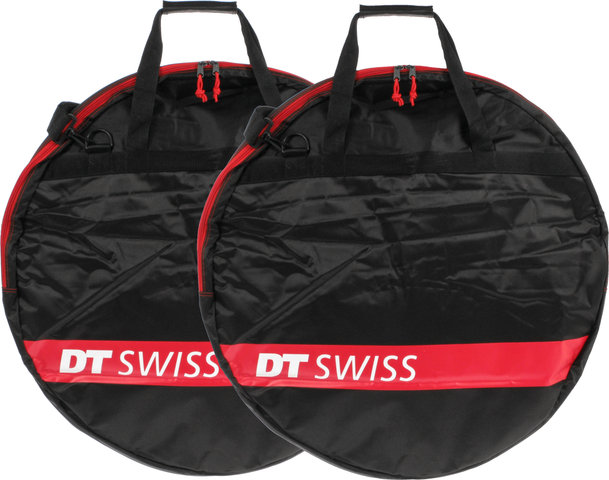

• 2 x DT Swiss wheel bags
• 2 x DT Swiss tool
