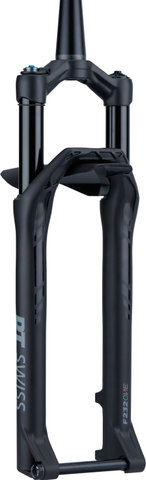

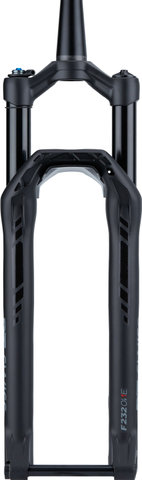

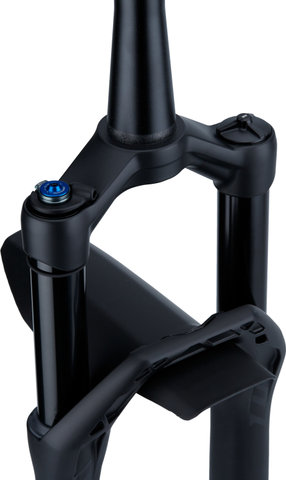

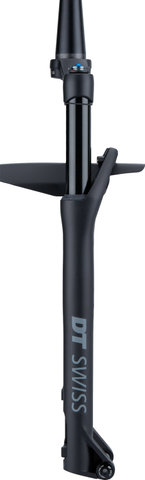

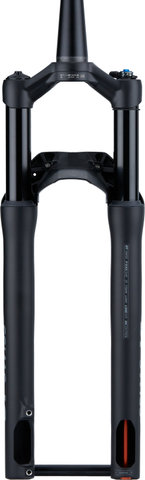

DT Swiss F 232 ONE 29" Boost Remote Suspension Fork - 2023 Model

The F 232 ONE 29" Boost remote suspension fork by DT Swiss with an adjustment lever on the handlebars and 44 mm offset

The F 232 ONE from DT Swiss is a Boost suspension fork with 44 mm offset for cross-country use. The damping is adjusted by a lever on the handlebars (" Two-in-One-Remote" ). This allows you to adjust your fork to the terrain while riding, without having to take your hands off the handlebars. Using the lever you can also control your damper - so that your cockpit stays tidy and clearly laid out. You can ride your 29" MTB in three different damping modes: OPEN, DRIVE and LOCK. The OPEN mode absorbs even the smallest vibrations and is therefore suitable for downhill sections. This mode can be additionally fine-tuned in 13 steps. DRIVE mode gives you medium damping, perfect for technical uphill sections. In LOCK mode, no damping is achieved and your applied pedalling force is converted solely into propulsion, which is an advantage on predominantly flat ground.
The topology-optimised structure of the fork, i.e. the design using computer-based calculations, leads to a weight optimisation with excellent stiffness values. The suspension fork also has room for a Boost hub and 29" wheels.

Specifications:

Application:

Cross Country

Wheel Size:

29"

Suspension Type:

air

Travel:

100 mm, 110 mm, 120 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle

Wheel Standard:

15 x 110 mm (Boost)

Brake Mount:

disc PM6 (direct mount 160 mm)

Technical Information:

Offset:

51 mm

Steerer Tube Length:

230 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Axle to Crown:

507 mm (at 100 mm), 517 mm (at 110 mm), 527 mm (at 120 mm)

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

32 mm

Steerer Tube Material:

aluminium

Crown Material:

aluminium

Stanchion Tube Material:

aluminium

Lower Tube Material:

magnesium

Dropout Material:

aluminium

Adjustment Options:

Compression:

3-Position Adjust (Open, Drive, Lock), Lowspeed

Rebound:

yes, low-speed

Suspension Stiffness:

air pressure adjust

Remote:

yes (Remote ready, incl. 2 in 1 Remote Lever)

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

29 x 2.5"

Tyre diameter max:

750 mm

Tyre Width (max.):

73 mm

Diameter max. at max. tyre width:

720 mm

Note:

Check that the suspension fork and wheel are installed free of play. Check the clearance of the tyre that you are using. Inflate tyres to the maximum allowable pressure. The lower maximum pressure specified by the tyre or rim applies. There must be at least 6 mm of space between the tyre and the suspension fork or fender when the suspension fork is fully compressed.

Rotor Size (max.):

203 mm

Weight Limit:

130 kg (rider + gear)

Features:

• cross-country suspension fork with 44 mm offset
• compression adjustment via remote
• in the OPEN mode the pressure level can be fine-tuned with 13 clicks
• a low breakaway force, therefore early spring compression

Technology:

Intended use - Category 3
Suitable for use on rough paved and unpaved ground, with a raised riding technique and occasional drops and jumps of approx. 60 cm.

APT (Adaptable Progression Tune)
The spring characteristic, the relationship between force and suspension travel, can be adapted to the riding style, the ability and the trails you ride on.
This is done by inserting or omitting spacers in the air chamber. The breakaway torque is not compromised in this process.

InControl Damping System
The damping or rather the compression speed can be adjusted to the respective driving situation. This is done in three stages: OPEN, DRIVE and LOCK.
In the OPEN mode, the damping system reacts to all unevenness in a precisely tuned manner. It is therefore best suited for downhill sections. It can be individually adjusted to the rider's weight and tyre pressure via 13 fine gradations.
The DRIVE mode reacts to coarse unevenness, but otherwise hardly allows any energy loss via the damping system. This setting is therefore recommended on technical sections and easy uphill sections.
In the LOCK mode, you receive a rigid fork, which allows the pedalling force to be effectively converted into propulsion, as there is no loss of energy.
The three compression modes are set via oil channels which are opened in different ways and thus allow the various levels of damping. In LOCK mode the oil channels are completely closed; to prevent damage in case of hard impacts, a blow-off valve opens.

LineAir Suspension System
With a low breakaway force, early damping is made possible. As a result, the damping increases linearly in the mid-range and achieves a much steeper progression in the end range, which allows a strong compression without bottoming out. This is achieved through a spring system consisting of air chambers, where the pressure in the negative air chamber is higher than in the positive air chamber when fully rebounded.

Topology Optimisation
Computer-based calculation methods are used to refine the material design for specific loads under marginal conditions as much as possible. Material is left out in places where it is not needed. This makes a lower weight of the component possible, without compromising stability and performance.

Two-in-One Remote
The suspension fork and shock can be operated simultaneously from the handlebars via a lever. This increases safety, because the hands remain on the handlebars during the ride. The lever provides a precise haptic and acoustic signal. This allows you to permanently see which adjustment of the damping settings has been made.

Models:

100 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

100 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

44 mm

Brake Mount:

disc PM6 (direct mount 160 mm)

Axle Type:

thru-axle (15 x 110 mm)

Manufacturer Number:

F232OCILPGAS35774S

110 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

110 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

44 mm

Brake Mount:

disc PM6 (direct mount 160 mm)

Axle Type:

thru-axle (15 x 110 mm)

Manufacturer Number:

F232ODILPGAS35777S

120 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

120 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

44 mm

Brake Mount:

disc PM6 (direct mount 160 mm)

Axle Type:

thru-axle (15 x 110 mm)

Manufacturer Number:

F232OEILPGAS35781S

Contents:

• 1 x DT Swiss F 232 ONE suspension fork

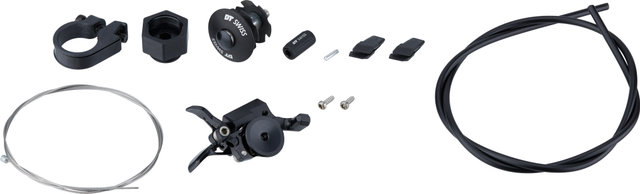

• 1 x DT Swiss 2-in-1 remote lever
• 1 x DT Swiss APT kit

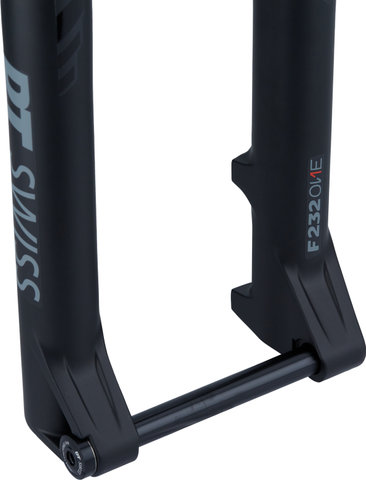

• 1 x DT Swiss thru-axle

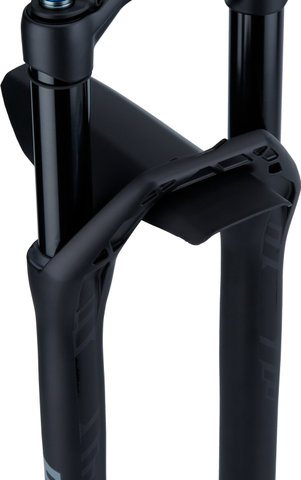

• 1 x fender
• 2 x brake cable attachments
• 1 x star nut
