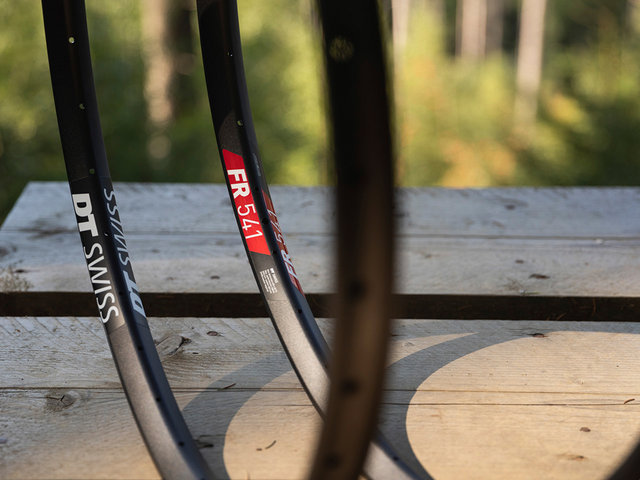

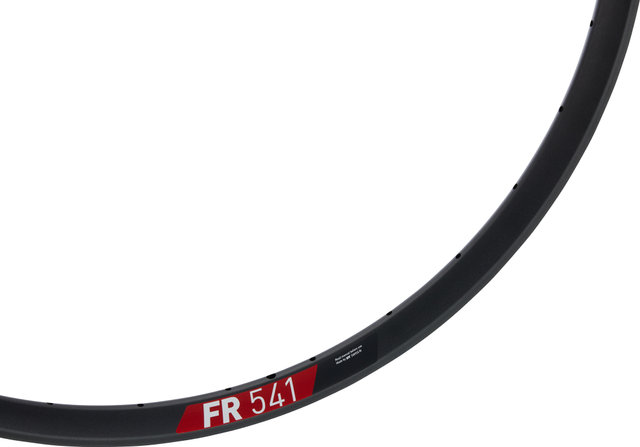

DT Swiss FR 541 Disc 29" Rim

The FR 541 Disc 29" Rim by DT Swiss - For custom freeride wheels

Use the FR 541 rim from DT Swiss to build the 29" downhill wheel of your choice. The weight-optimised rim for disc brakes impresses with particularly high impact resistance. The forged aluminium is particularly robust, which is why the rim holes do not require eyelets. This also contributes to weight savings. The shape of the rims with hooks for wired and folding tyres has been designed in such a way that the risk punctures in the inner tube is enormously reduced. If you want, you can also just ride tubeless. With a 30 mm jaw width, you can fit really wide tyres. So you don't need to shy away from extreme trails.

Specifications:

Application:

Downhill, Enduro

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28, 32

Brake Type:

disc

Tubeless System:

Tubeless Ready

Technical Information:

Dimensions (ETRTO):

30-622

Rim Flange:

with hook

Inner Width:

30 mm

Outer Width:

35 mm

Depth:

21 mm

ERD:

603 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

Approved For:

Weight Limit:

140 kg (system weight)

Air Pressure (max.):

see user manual (Tire Pressure and Dimension)

Recommended Tyre Width:

see user manual (Tire Pressure and Dimension)

Features:

• weight-optimised downhill rim with high impact resistance
• forged aluminium without eyelets in the rim holes
• rim shape offers reduced risk of flat tyres
• ASTM category 5: for use in extreme terrain

Models:

28 hole:

Number of Spokes:

28

Manufacturer Number:

RDFR54CDPW28SA1489

32 hole:

Number of Spokes:

32

Manufacturer Number:

RDFR54CDPW32SA1490

Contents:

• 1 x DT Swiss FR 541 Disc 29" rim
• 3 x decals (black, gold, silver)
