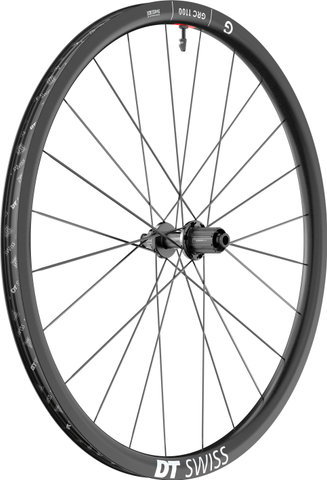

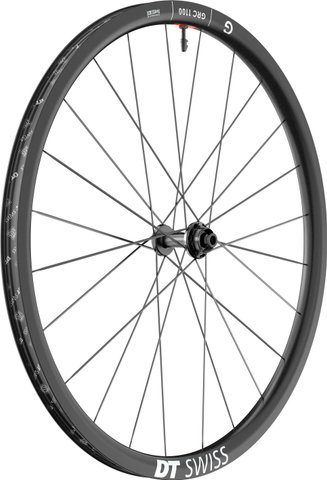

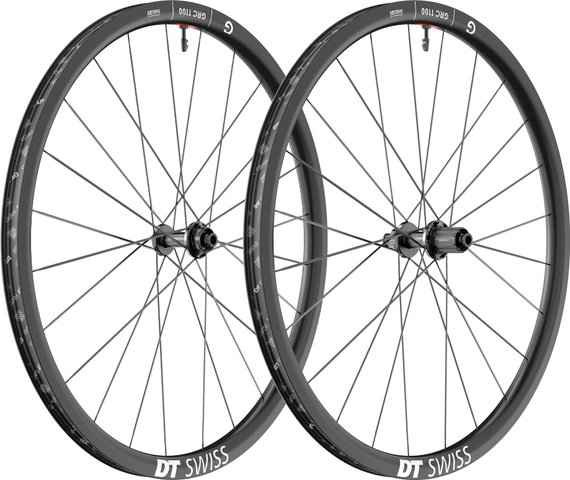

DT Swiss GRC 1100 DICUT 30 Disc Center Lock 28" Wheelset

Specifications:

Application:

Gravel

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

Technical Information – Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

24-622

Inner Width:

24 mm

Depth:

30 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

carbon

Technical Information – Front Hub:

Type:

180 DICUT Straightpull

Over Locknut Dimension:

12 x 100 mm thru axle

Bearings:

Ceramic bearings (SINC)

Body Material:

aluminium

Technical Information - Rear Hub:

Type:

180 DICUT Straightpull

Over Locknut Dimension:

12 x 142 mm thru axle

Bearings:

Ceramic bearings (SINC)

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Ratchet EXP 36

Technical Information – Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

Front: DT Aerolite II T-Head / Straightpull, HR left: DT Aerolite II T-Head / Straightpull, HR right: DT Aero Comp II T-Head / Straightpull

Spoke Material:

stainless steel

Nipple Type:

DT Pro Lock

Nipple Material:

aluminium

Approved For:

Weight Limit:

130 kg (system weight)

Air Pressure (max.):

see Manual (Tire Pressure and Dimension)

Recommended Tyre Width:

see Manual (Tire Pressure and Dimension)

Features:

• Off-road capable 28" wheelset for gravel adventures off the beaten path
• 30 mm high, aerodynamically optimized carbon rims
• Extra light Center-Lock hubs with SINC ceramic bearings
• Ratchet freehub system with 36 points of engagement
• Aerodynamically optimized spokes
• Tubeless Ready with installed tubeless tapes and two tubeless valves included

Technology:

Intended Use: Category 2
Suitable for use on predominantly paved and partially unpaved ground with a slight slope and a temporary loss of ground contact as well as drops of up to 15 cm.

Ratchet EXP
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Models:

28" Set (FR 12x100 + RR 12x142) Campa N3W:

Freehub:

Campagnolo N3W

Gearing:

11-/12-/13-speed

Note:

An adapter is necessary for mounting 11/12-speed Campagnolo cassettes on a Campagnolo N3W rotor.

Manufacturer Numbers:

WGRC110AIDXCA22326 + WGRC110NID8CA22327

28" Set (FR 12x100 + RR 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 8-/9-/10-speed cassettes on a Shimano road rotor requires a 1.85 mm spacer.

Manufacturer Numbers:

WGRC110AIDXCA22326 + WGRC110NIDJCA22328

28" Set (FR 12x100 + RR 12x142) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Numbers:

WGRC110AIDXCA22326 + WGRC110NID9CA23388

Contents:

• 1 x GRC 1100 DICUT 30 Disc Center Lock 28" wheelset (front and rear wheel)
• 2 x DT Swiss rim tape (mounted)
• 2 x DT Swiss tubeless valve
