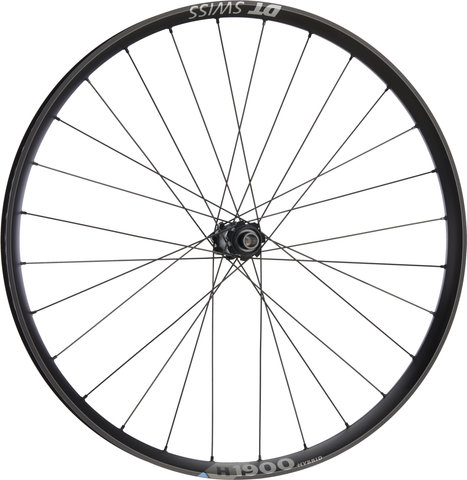

DT Swiss H 1900 SPLINE 27.5" 35 Boost Center Lock Disc Hybrid Wheelset

The DT Swiss H 1900 SPLINE 27.5" 35 Boost Center Lock Disc Hybrid Wheelset - For extra wide tyres on the E-MTB

With the DT Swiss H 1900 SPLINE wheelset in 27.5" you equip your e-bike with a durable, robust chassis. Thanks to the 35 mm rim width, you can ride particularly wide tyres and low air pressures, which means you benefit from maximum traction. The 370 Boost hubs for center lock brake rotors are firmly connected to the rims via straight pull spokes and Pro-Lock nipples. This ensures stiff, durable and low-maintenance wheels. In addition, the rear hub has a Ratchet LN freehub with 18 teeth. This results in improved power transmission and more propulsion compared to the previous model.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain

Wheel Size:

27.5" (650B)

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

Center Lock Disc (Boost)

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

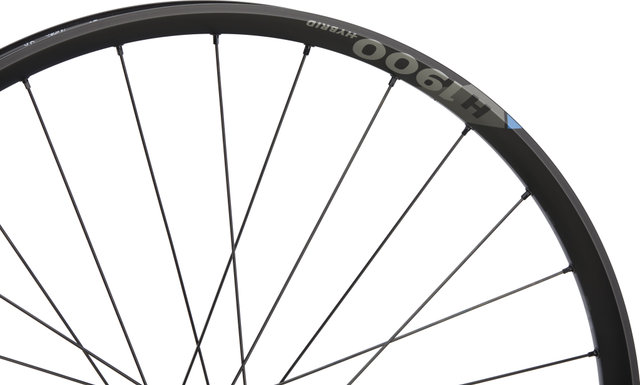

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

35-584

Inner Width:

35 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

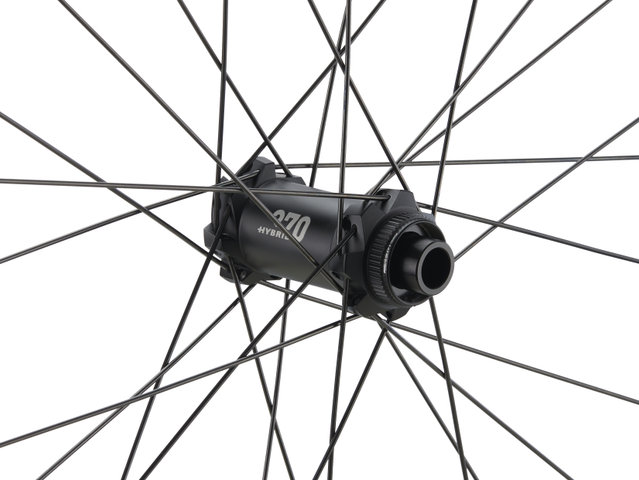

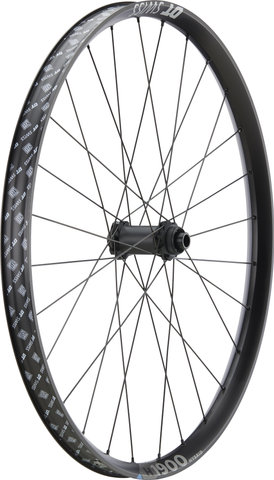

Technical Information - Front Hub:

Type:

370 straight pull

Over Locknut Dimension:

15 x 110 mm thru-axle

Body Material:

aluminium

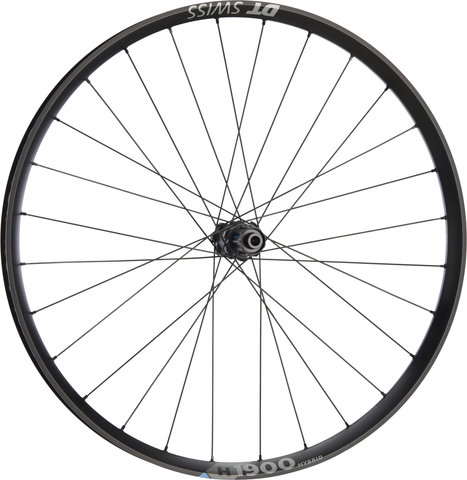

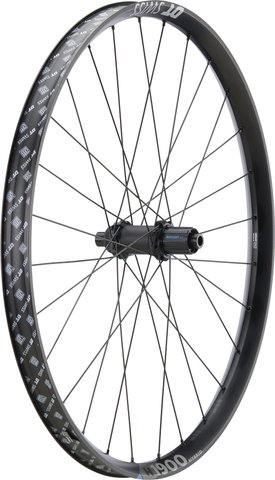

Technical Information - Rear Hub:

Type:

370 straight pull

Over Locknut Dimension:

12 x 148 mm thru-axle

Body Material:

aluminium

Freehub Body Material:

steel

Freehub Body:

Ratchet LN 18

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Hybrid 1, straight pull

Spoke Material:

steel

Nipple Type:

DT Pro Lock Squorx Pro Head

Nipple Material:

aluminium

Approved For:

Weight Limit:

150 kg (system weight)

Air Pressure (max.):

see user manual (Tire Pressure and Dimension)

Recommended Tyre Width:

see user manual (Tire Pressure and Dimension)

Features:

• boost wheels for E-MTBs
• with Ratchet LN freehub
• increased stability due to straight pull spokes and Pro-Lock nipple thread

Technology:

Intended use - Category 4
Suitable for use in very rough terrain with jumps of up to approx. 120 cm in height and speeds of up to 40 km/h. Very good riding technique is required. The components must be checked for damage after each ride.

HYBRID
To cope with the higher loads on e-bikes, the hubs, as the heart of the wheel, have a higher wall thickness and larger housings than usual hubs. The spoke holes have been additionally reinforced. The freehub rotor is made from steel and is equipped with 24-tooth ratchets, which are made from special hardened steel. Heavy-duty axles and oversized hubs allow the wheels to work while bearing high loads. The rims have thicker rim walls and offer plenty of traction. The connecting element between rim and hub, the spokes, have reinforced spoke heads and are made of special steel alloys in order to withstand stronger external forces.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

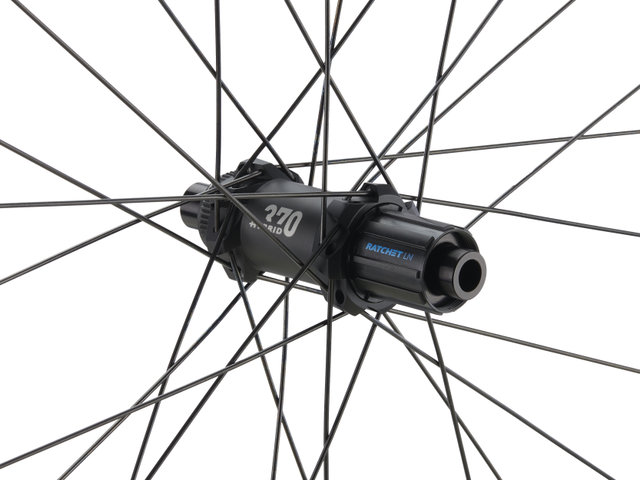

Ratchet LN
The Ratchet LN freehub is used to convert DT Swiss 370 hubs with pawls to a ratchet freehub. The advantage, compared to pawls, is the significantly larger contact surface with improved frictional connection. The seal attached to the freehub body, and not to the hub shell as usual, makes the freehub body easily replaceable. The modular design allows free selection of the engagement angle (18, 24, 36 or 54 teeth) and of the freehub body.

SPLINE
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Colour Info:

black:

• Rims: black with grey decals
• Hubs: black
• Spokes: black
• Nipples: black

Models:

27.5" set (front 15x110 Boost + rear 12x148 Boost) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Numbers:

W0H1900BGIXSA18349 (front) + W0H1900TGDSSA18351 (rear)

27.5" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Numbers:

W0H1900BGIXSA18349 (front) + W0H1900TGD3SA18350 (rear)

27.5" set (front 15x110 Boost + rear 12x148 Boost) SRAM XD:

Freehub:

SRAM XD

Gearing:

11-/12-speed

Manufacturer Numbers:

W0H1900BGIXSA18349 (front) + W0H1900TGDNSA18352 (rear)

Contents:

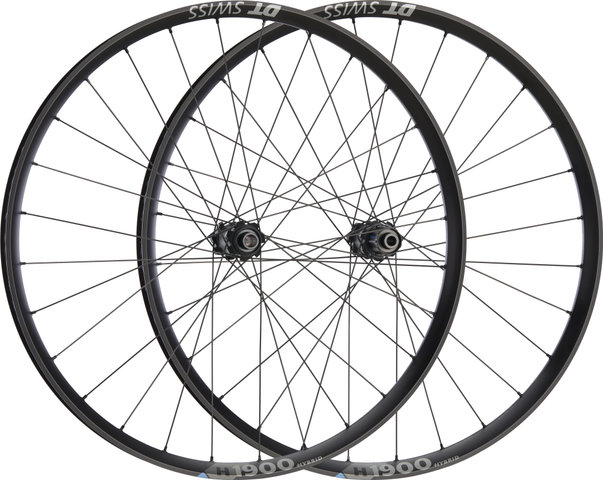

• 1 x DT Swiss H 1900 SPLINE 27.5" 35 Boost Center Lock Disc Hybrid Wheelset (front and rear wheel)

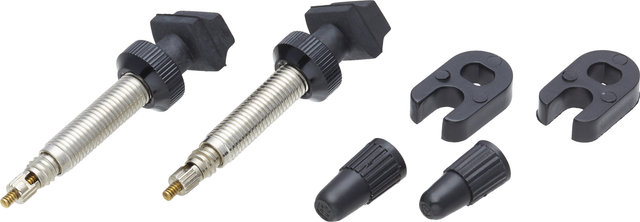

• 2 x DT Swiss tubeless valves
• 2 x rolls DT Swiss tubeless rim tape
