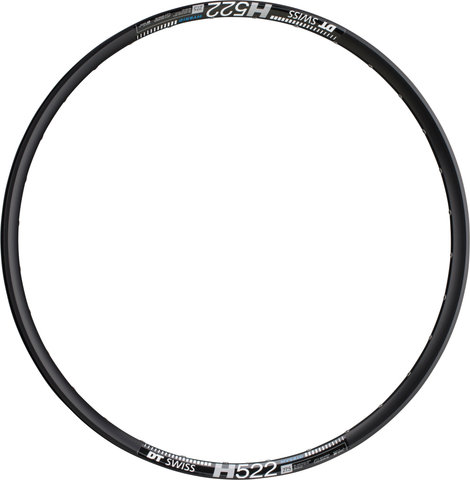

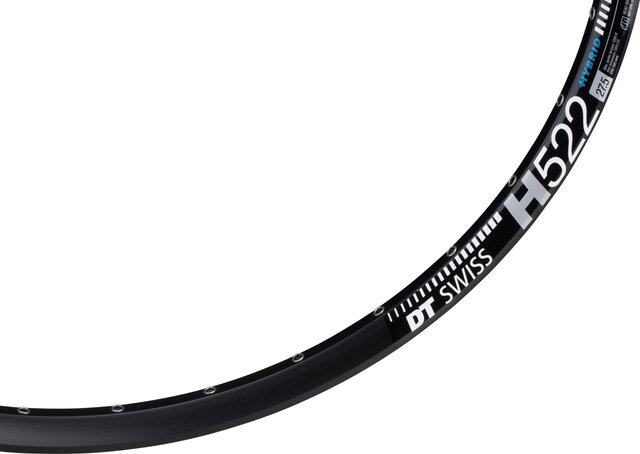

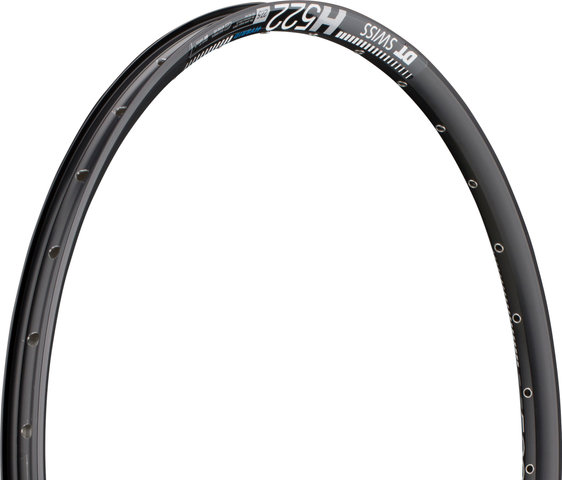

DT Swiss H 522 25 Disc 27.5" Rim

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

E-Bike

Wheel Size:

27.5" (650B)

Tyre Type:

clincher tyre

Number of Spokes:

28, 32

Brake Type:

disc

Tubeless System:

tubeless ready

Technical Information:

Dimensions (ETRTO):

25-584

Inner Width:

25 mm

Outer Width:

30 mm

Depth:

20 mm

ERD:

564 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

Approved For:

Weight Limit:

150 kg (system weight)

Air Pressure (max.):

5.5 bars

Recommended Tyre Width:

1.5 - 3.0"

Features:

• single eyelets
• 1200 N max. spoke tension
• rim tape: 584x32 mm

Models:

27.5" / 28 hole:

• Wheel Size: 27.5" (650B)
• Number of Spokes: 28
• Manufacturer Number: RDH052BDPS28SA5214

27.5" / 32 hole:

• Wheel Size: 27.5" (650B)
• Number of Spokes: 32
• Manufacturer Number: RDH052BDPS32SA5215

Contents:

• 1 x DT Swiss H 522 25 rim
