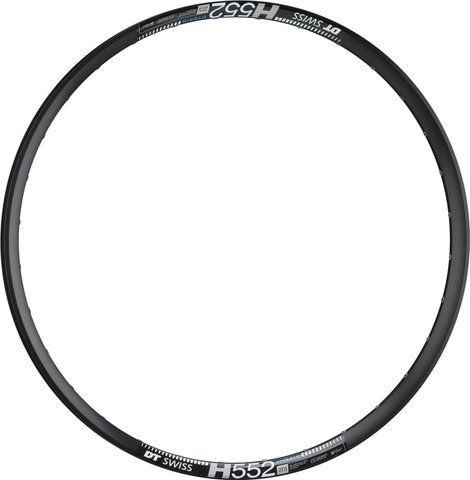

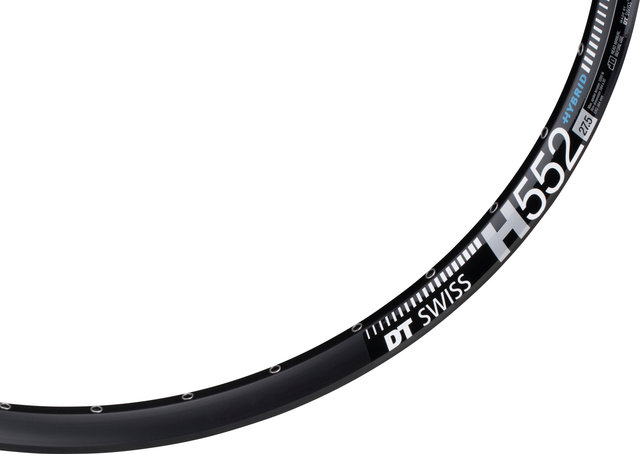

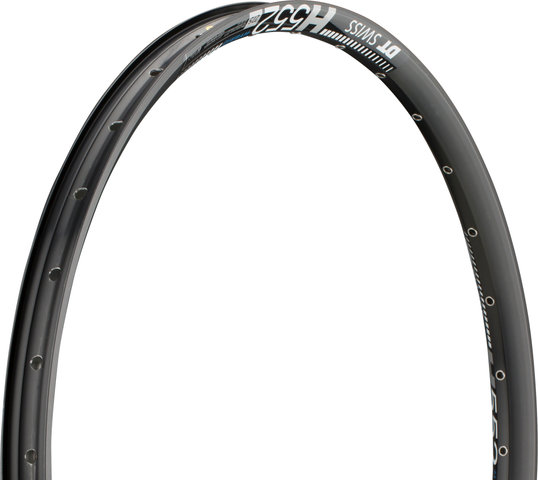

DT Swiss H 552 30 Disc 27.5" Rim

The H 552 is a beast for the frugal rider on any terrain, and has an internal width of 30 mm. The rider is free to choose their desired tyre width and benefit from DT Swiss reliability at an affordable price, leaving you enough left over to charge your battery several times over.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

E-Bike

Wheel Size:

27.5" (650B)

Tyre Type:

clincher tyre

Number of Spokes:

28, 32

Brake Type:

disc

Tubeless System:

tubeless ready

Technical Information:

Dimensions (ETRTO):

30-584

Inner Width:

30 mm

Outer Width:

35 mm

Depth:

20 mm

ERD:

564 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

Approved For:

Weight Limit:

150 kg (system weight)

Air Pressure (max.):

4.7 bars

Recommended Tyre Width:

1.85 - 3.5"

Features:

• single eyelets
• 1200 N max. spoke tension
• rim tape: 584x32 mm

Models:

27.5" / 28 hole:

• Wheel Size: 27.5" (650B)
• Number of Spokes: 28
• Manufacturer Number: RDH055BDPS28SA5218

27.5" / 32 hole:

• Wheel Size: 27.5" (650B)
• Number of Spokes: 32
• Manufacturer Number: RDH055BDPS32SA5219

Contents:

• 1 x DT Swiss H 552 30 rim
