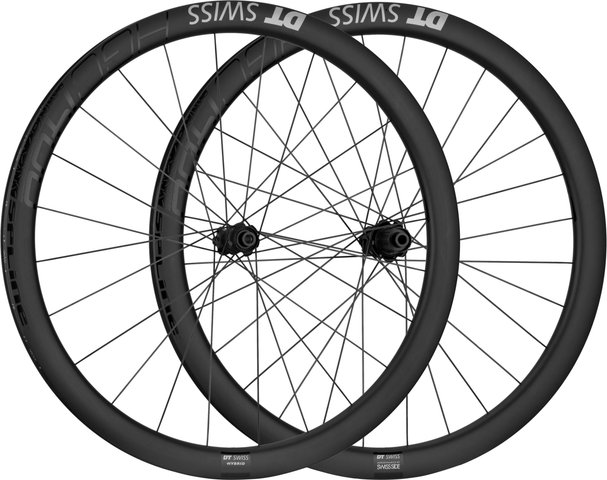

DT Swiss HGC 1400 SPLINE 42 Boost Center Lock Disc Hybrid 27.5" Wheelset

Maximum riding fun: the HGC 1400 SPLINE 42 wheelset from DT Swiss

The HGC 1400 SPLINE® belongs to the Hybrid Gravel wheel family, and delivers maximum riding pleasure on gravel roads. These wheels are the answer for all high-end E-gravel bikes that set the standard for a new cycling discipline. With its exquisite blend of high-end E-specific components, this wheel set is the undisputed king of E-Gravel.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

E-Bike, Gravel

Wheel Size:

27.5" (650B)

Tyre Type:

clincher tyre

Number of Spokes:

24 (front) / 28 (rear)

Brake Type:

Center Lock Disc (6-bolt conversion w/ adapter)

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

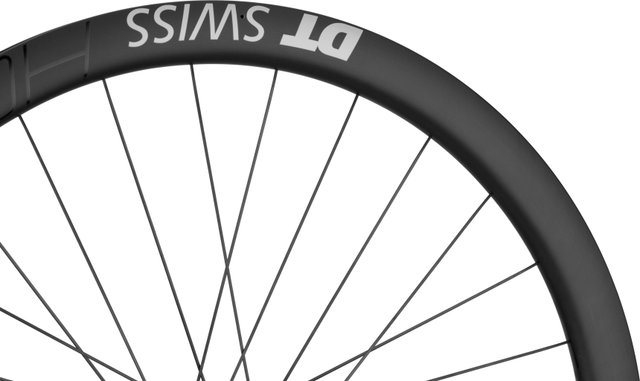

Technical Information - Rim:

Type:

HGC 1400 SPLINE

Dimensions (ETRTO):

24-584

Inner Width:

24.0 mm

Outer Width:

33.0 mm

Depth:

42.0 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

carbon

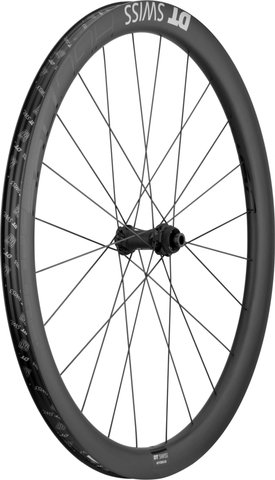

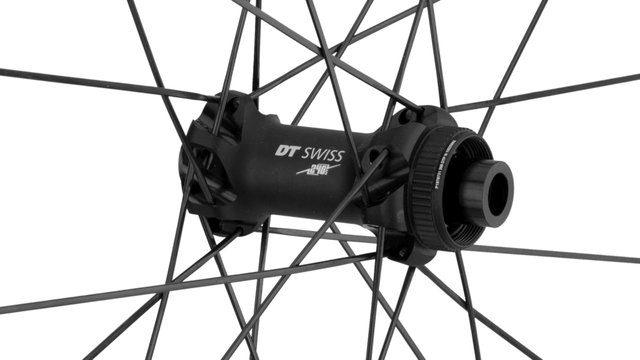

Technical Information - Front Hub:

Type:

240s

Over Locknut Dimension:

12 x 110 mm thru-axle

Bearings:

precision bearings, sealed

Body Material:

aluminium

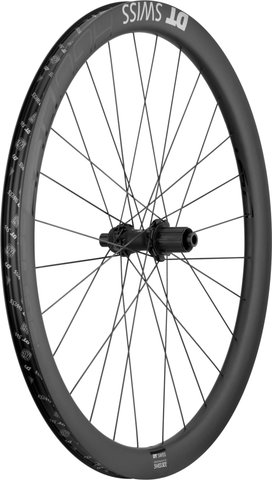

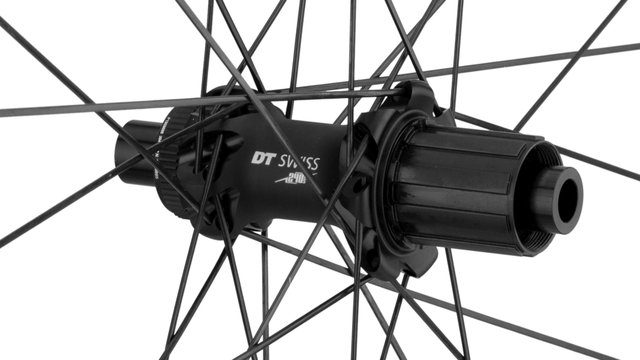

Technical Information - Rear Hub:

Type:

240s

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

precision bearings, sealed

Body Material:

aluminium

Freehub Body Material:

steel

Freehub Body:

DT Swiss Ratchet System® (24 T)

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

DT Hybrid® / straight pull

Spoke Material:

steel

Nipple Type:

DT Pro Lock® Squorx / Pro Head

Nipple Material:

aluminium

Approved For:

Weight Limit:

140 kg system weight (rider + bike + gear)

Air Pressure (max.):

5.0 bar

Recommended Tyre Width:

1.25 - 1.95"

Features:

• Adhesive: Waterslide
• 24 mm jaw width

Technology:

SPLINE
The SPLINE line is characterised by straight pull hubs with famous DT Swiss technology, straight spokes as well as stable rims. The combination of reliable and ideally matched components makes every SPLINE wheel the perfect training and competition partner.

E-Bike:
This product has been specially developed to meet the higher loads of e-bikes.

Tubeless Ready
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

DT ProLock Squorx Pro Head
The DT Squorx Pro Head nipple combines ease of assembly and lightweight. With an additional Torx and square drive. The Torx drive provides more contact surface when building wheels, which means that the torque transmitted from the tool to the nipple is better distributed. The spherical contact area in the rim guarantees perfect alignment with the spoke.

Colour Index:

UD carbon:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: black

Models:

27.5" set (front 12x110 Boost + rear 12x148 Boost) Shimano:

• Freehub: Shimano
• Gearing: 8-/9-/10-/11-speed
• Manufacturer Numbers: WHGC140BJDXCA10749 (front) + WHGC140TJDVCA10750 (rear)
• Conversion Options: To convert to SRAM XDR, an XDR freehub body is required.

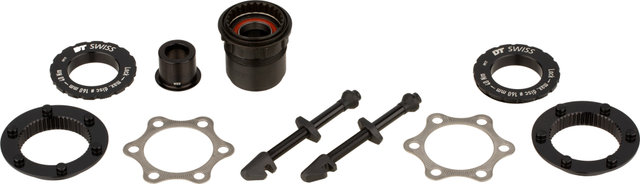

Contents:

• 1 x DT Swiss HGC 1400 SPLINE 42 wheelset (front and rear wheel)
• 2 x DT Swiss 27 mm tubeless tape
• 2 x DT Swiss 63 mm tubeless valves
• 2 x DT Swiss adapters to convert from Center Lock to 6-bolt
• 2 x DT Swiss valve protectors
• 1 x DT Swiss freehub body to convert to SRAM XDR
