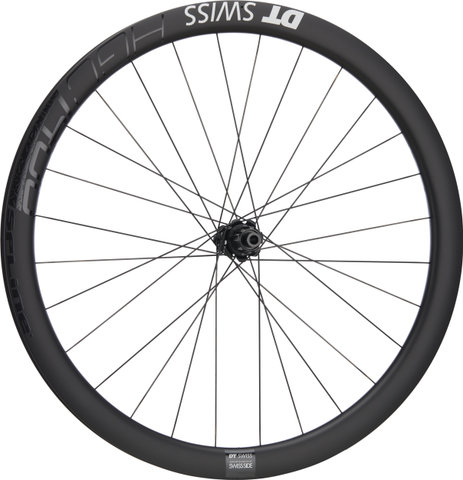

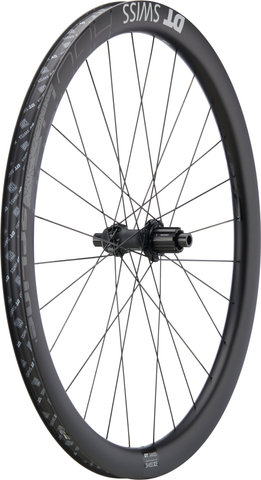

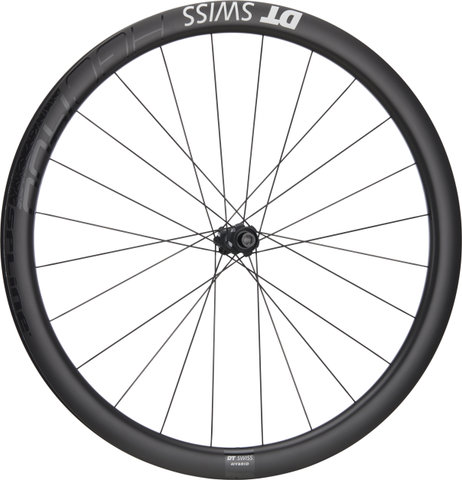

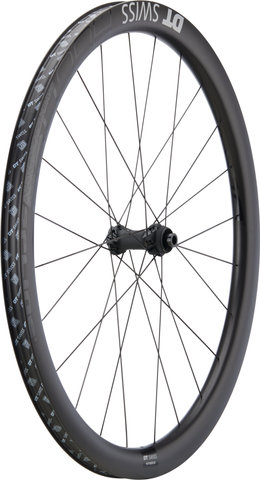

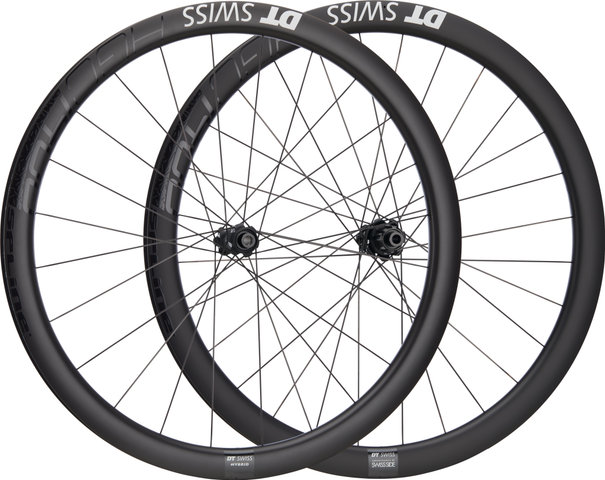

DT Swiss HGC 1400 SPLINE 42 Center Lock Disc Hybrid Carbon 28" Wheelset

The DT Swiss HGC 1400 SPLINE 42 Hybrid in 28" - high-quality carbon wheels for e-gravel bikes

DT Swiss developed the HGC 1400 wheelset, here in the non-boost version for 28 inches, specifically for e-gravel bikes. With its 42 mm deep and 24 mm wide carbon rims, it ensures unrestricted fun when riding on gravel tracks. The rims have a hookless design, which ensures greater impact resistance, and can of course also be used without an inner tube. High-quality 240 SPLINE hubs designed for center-lock brake rotors and straight-pull spokes impress with their reliable function. A ratchet-system freehub with 24 teeth is used, which is highly resilient and very easy to maintain. The DT Aero Comp Hybrid spokes - 24 at the front and 28 at the rear - feature a three-cross lacing pattern and are fitted with bonded Pro-Lock nipples to offer you even more security. All of this makes the HGC 1400 wheelset the perfect addition for high-end e-gravel bikes.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

Gravel

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24 (front) / 28 (rear)

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

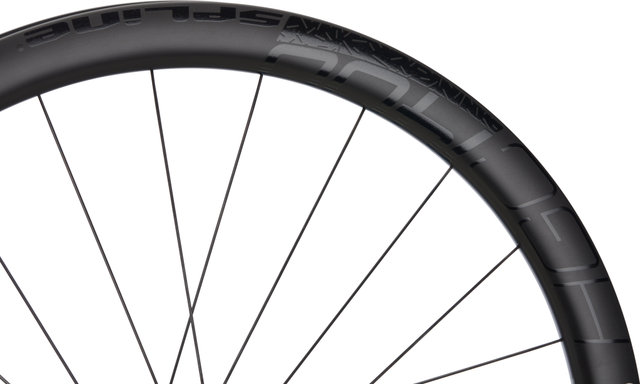

Technical Information - Rim:

Rim Flange:

hookless

Dimensions (ETRTO):

24-622

Inner Width:

24 mm

Outer Width:

32 mm

Depth:

42 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

carbon

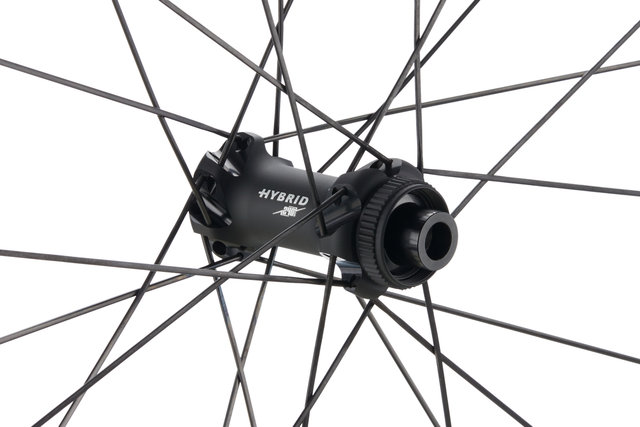

Technical Information - Front Hub:

Type:

DT Swiss 240 SPLINE

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

standard ball bearing 1526

Body Material:

aluminium

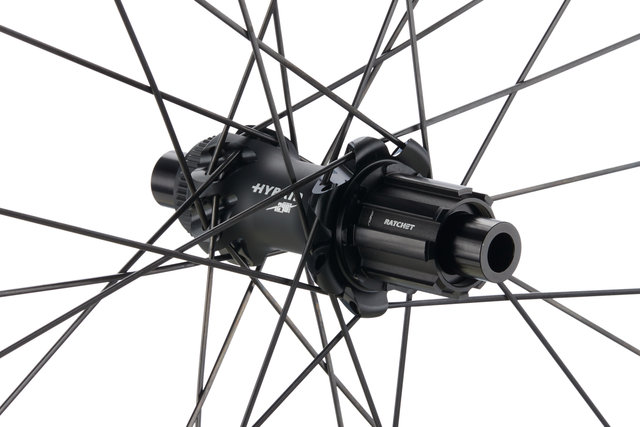

Technical Information - Rear Hub:

Type:

DT Swiss 240 SPLINE

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

standard ball bearing 1526

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Ratchet 24

Technical Information - Lacing:

Front Lacing Pattern:

3-cross (1:1)

Rear Lacing Pattern:

3-cross (1:1)

Spoke Type:

DT Swiss Aero Comp Hybrid / Straightpull / double-butted

Spoke Size:

286 mm/288 mm (front l/r), 294 mm/291 mm (rear l/r)

Spoke Material:

steel

Nipple Type:

DT Swiss Pro Lock Hidden (thread 2.3 mm FG)

Nipple Size:

12 mm (length), 2.0 mm (diameter)

Nipple Material:

aluminium

Approved For:

Weight Limit:

140 kg (system weight)

Air Pressure (max.):

see user manual (Tire Pressure and Dimension)

Recommended Tyre Width:

see user manual (Tire Pressure and Dimension)

Features:

• high-quality carbon wheelset in 28" for e-gravel bikes (non-boost), designed for riding fun
• hookless rims for greater impact resistance and higher tyre pressures
• reliable center-lock hubs with steel bearings
• low-maintenance ratchet freehub with 24 teeth distributes the load evenly
• straight-pull spokes with three-cross lacing pattern and self-locking nipples for greater load capacity

Technology:

Intended use: Category 2
Suitable for use on predominantly paved and partially unpaved ground with a slight slope and a temporary loss of ground contact as well as drops of up to 15 cm.

E-Bike
This product has been specially developed to meet the higher loads of e-bikes.

Ratchet System
The robust and reliable star ratchets freehub system can be maintained easily and quickly. The no-tool concept contributes to this, because it allows disassembly without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely. The ratchet system has 36-tooth discs as standard, but can also be fitted with more or fewer teeth. If it also bears the designation " SL" (" Superlight" ), this means that the toothed discs are specially machined to save weight.

SPLINE
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Colour Info:

UD carbon:

• Rims: black with black-and-white decals
• Hubs: black
• Spokes: black
• Nipples: silver (inside)

Models:

28" set (front 12x100 + rear 12x142) Campagnolo N3W:

Freehub:

Campagnolo N3W

Gearing:

11-/12-/13-speed

Note:

An adapter is necessary for mounting 11/12-speed Campagnolo cassettes on a Campagnolo N3W rotor.

Manufacturer Numbers:

WHGC140AIDXCA11414 (front) + WHGC140NID8CA19619 (rear)

Conversion Options:

A freehub body for conversion to SRAM XDR is included.

Contents:

• 1 x DT Swiss HGC 1400 SPLINE 42 Center Lock Disc Hybrid carbon 28" wheelset (front & rear)

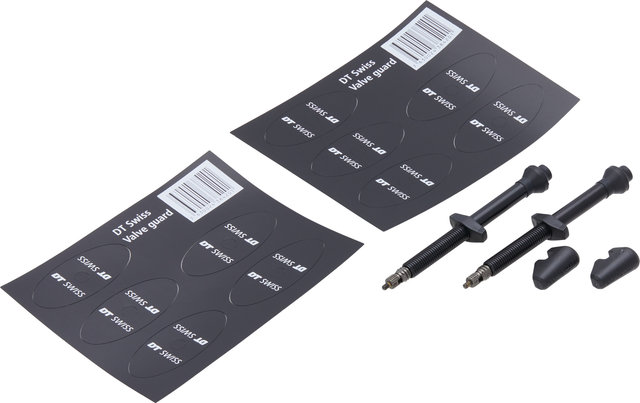

• 2 x DT Swiss 27 mm tubeless rim tape
• 2 x DT Swiss aluminium tubeless valves, 36 - 48 mm
• 2 x DT Swiss valve protective stickers
• 1 x DT Swiss freehub body for SRAM XDR
