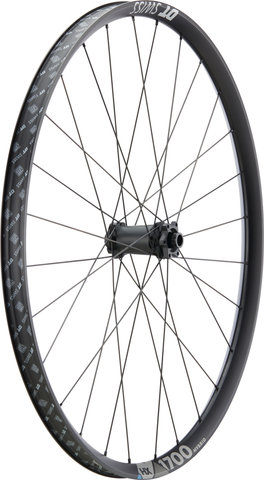

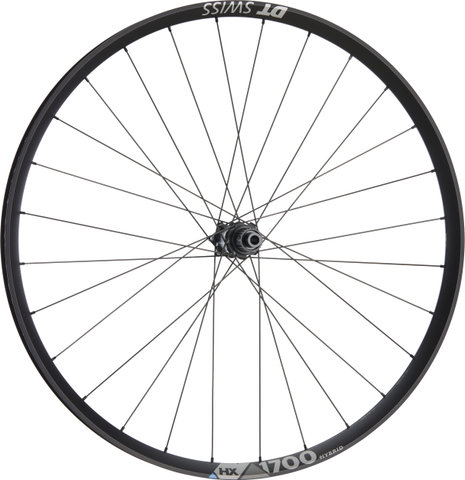

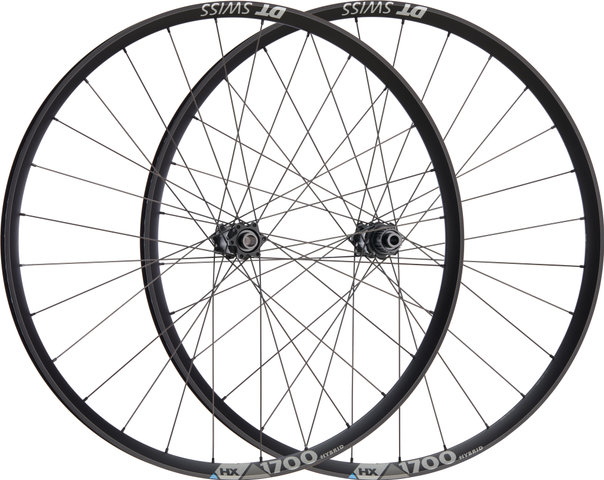

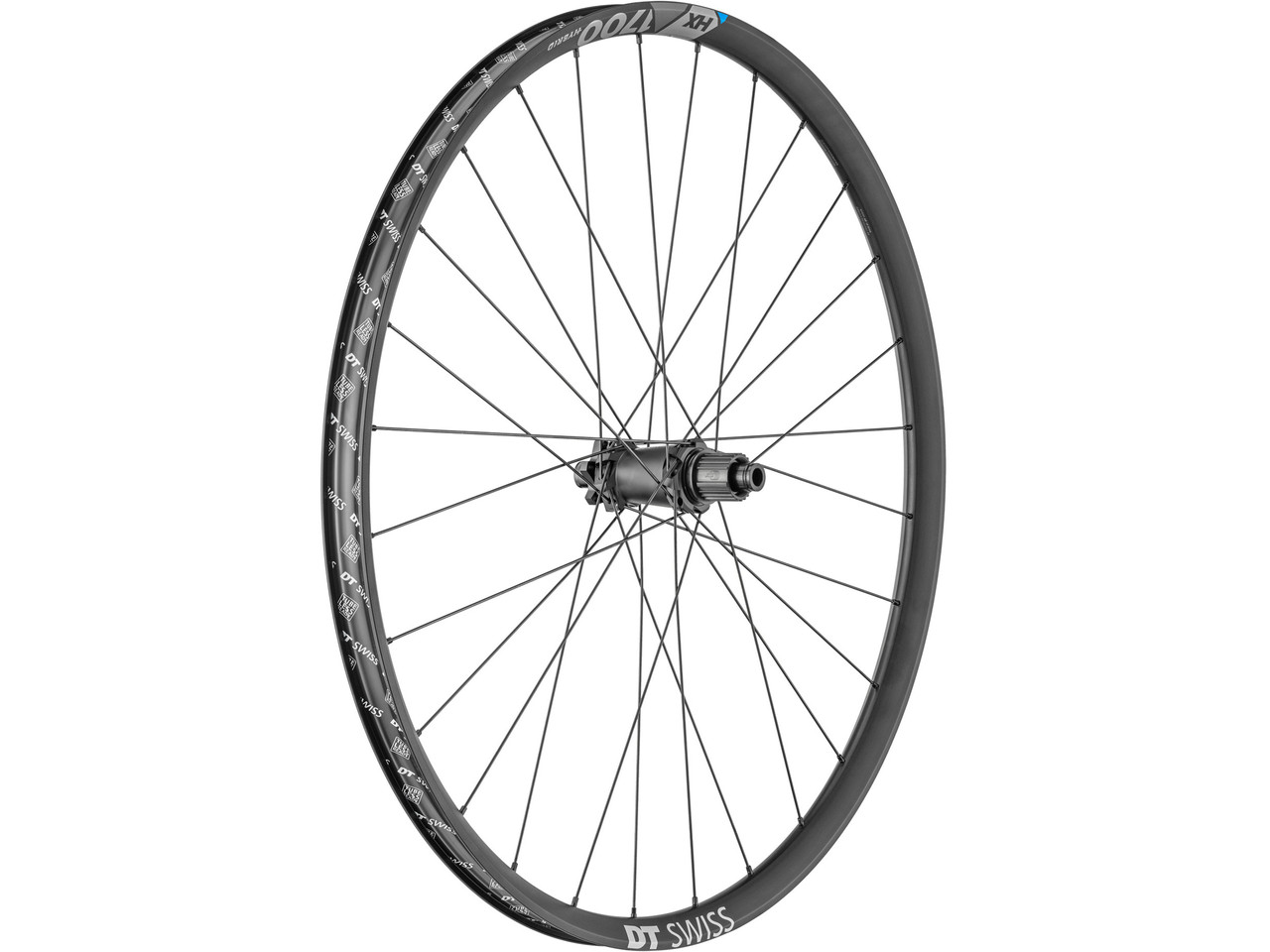

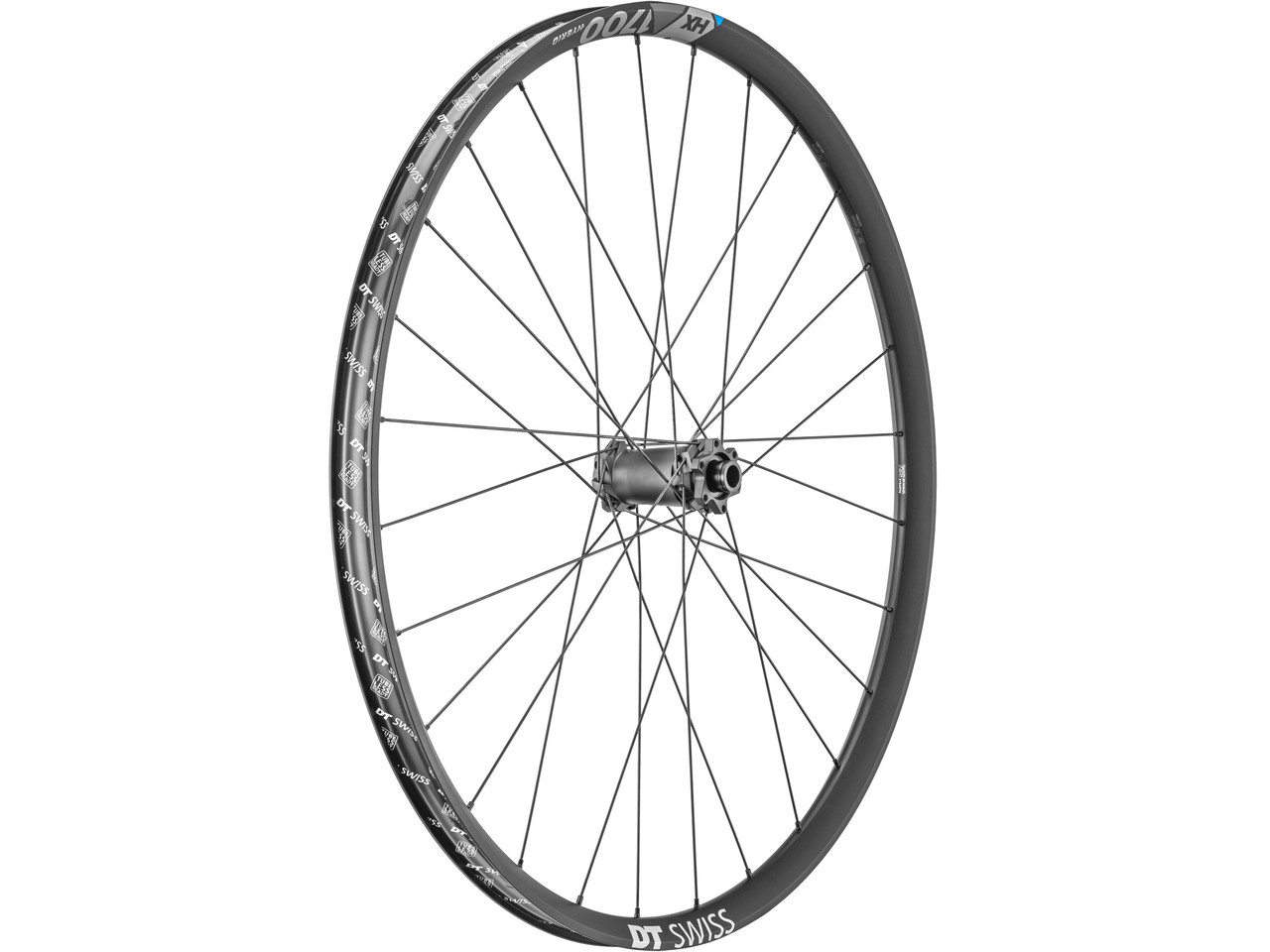

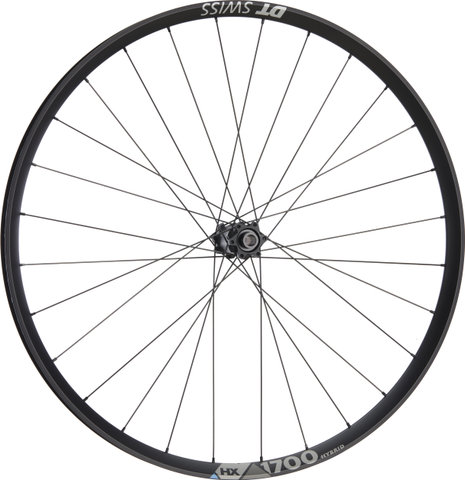

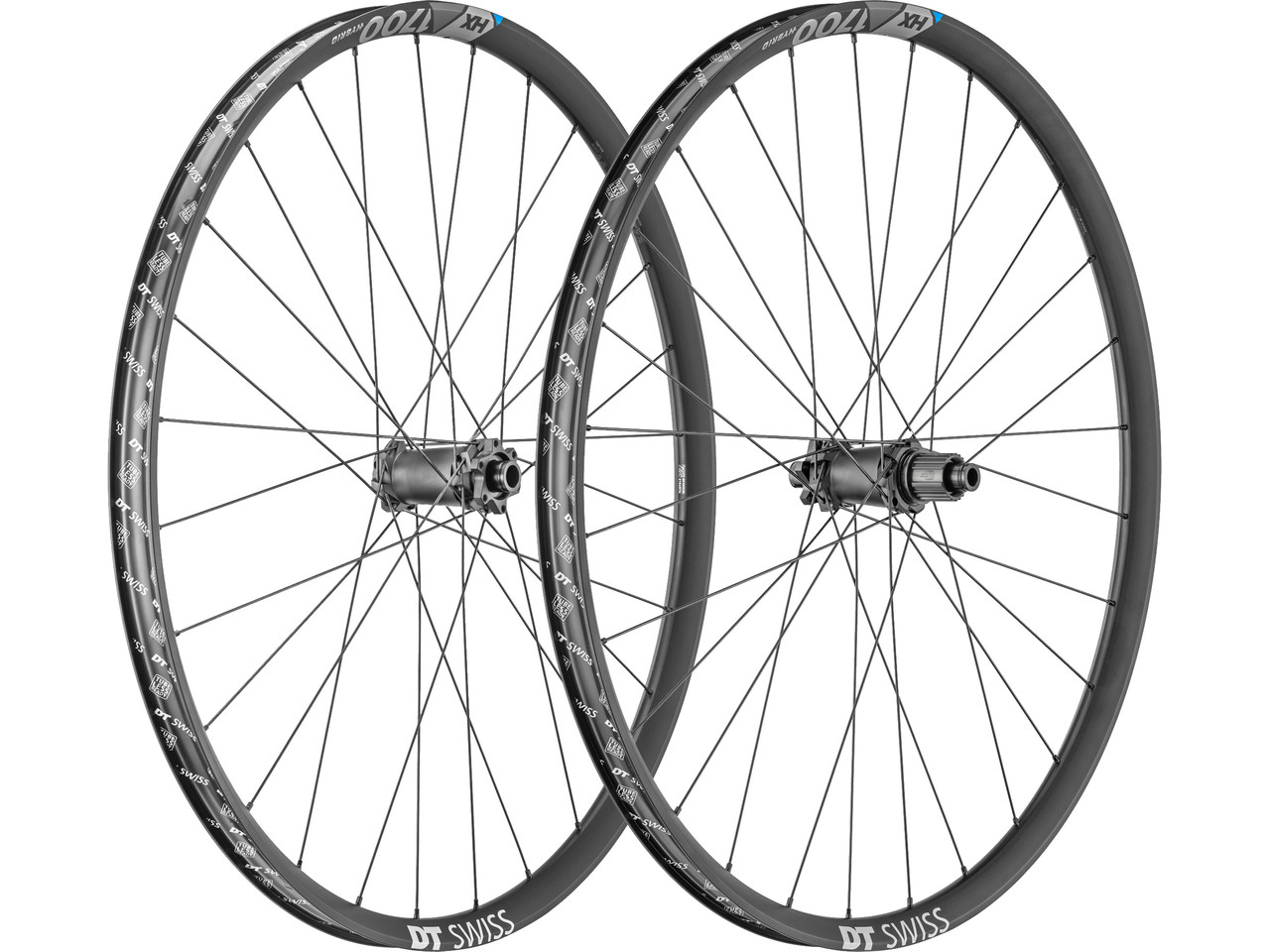

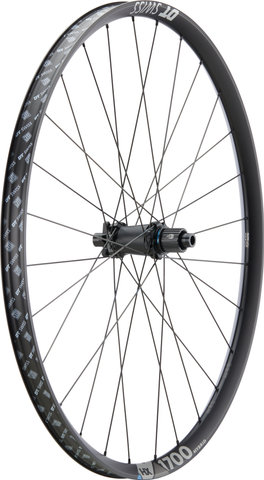

DT Swiss HX 1700 SPLINE 29" 30 6-Bolt Boost Disc Hybrid Wheelset

The DT Swiss HX 1700 SPLINE 29" 30 6-Bolt Boost Disc Hybrid Wheelset - Lots of performance for E-MTBs

The HX 1700 SPLINE 29" hybrid wheelset from DT Swiss was developed for mountain bikes with electronic support. Thanks to the 30 mm rim width, you can ride wide tyres and low air pressures and enjoy full traction. The 350 Boost hubs for 6-bolt brake rotors are firmly connected to the rims via straight pull spokes and Pro-Lock nipples. This ensures stiff, durable and low-maintenance wheels. Icing on the cake: the freehub with ratchet system is straightforward to maintain, as it was designed according to DT Swiss' no-tool concept.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

6-bolt disc (Boost)

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

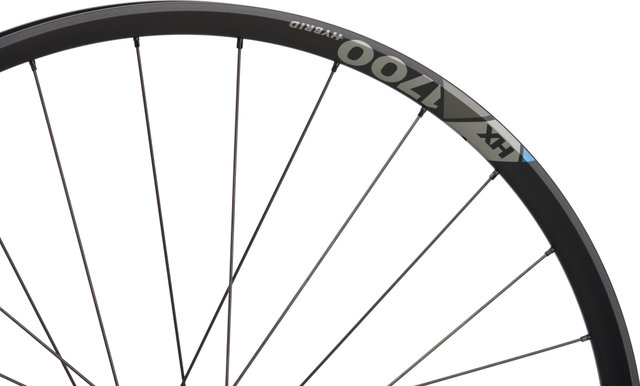

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

30-622

Inner Width:

30 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

Technical Information - Front Hub:

Type:

350 straight pull

Over Locknut Dimension:

15 x 110 mm thru-axle

Bearings:

steel bearings

Body Material:

aluminium

Technical Information - Rear Hub:

Type:

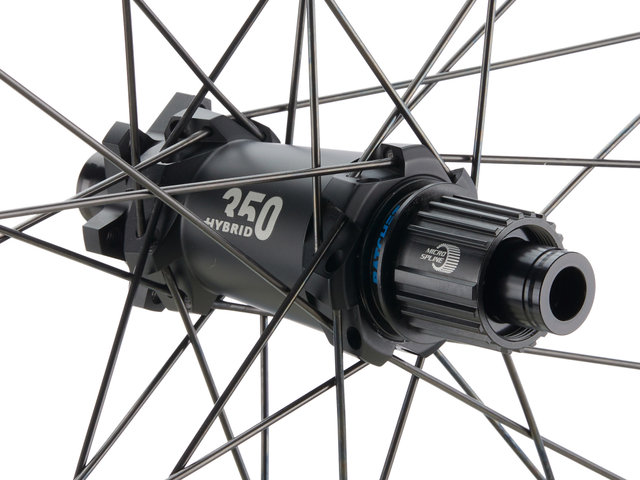

350 straight pull

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

steel bearings

Body Material:

aluminium

Freehub Body Material:

steel

Freehub Body:

24 tooth Ratchet

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

Straight Pull

Spoke Type:

DT Hybrid 1, straight pull

Spoke Material:

steel

Nipple Type:

DT Pro Lock Squorx Pro Head

Nipple Material:

aluminium

Approved For:

Weight Limit:

150 kg (system weight)

Air Pressure (max.):

see user manual (Tire Pressure and Dimension)

Recommended Tyre Width:

see user manual (Tire Pressure and Dimension)

Features:

• lightweight Boost wheels for E-MTBs
• with ratchet freehub
• increased stability due to straight pull spokes and Pro-Lock nipple thread

Technology:

Intended use - Category 4
Suitable for use in very rough terrain with jumps of up to approx. 120 cm in height and speeds of up to 40 km/h. Very good riding technique is required. The components must be checked for damage after each ride.

HYBRID
To cope with the higher loads on e-bikes, the hubs, as the heart of the wheel, have a higher wall thickness and larger housings than usual hubs. The spoke holes have been additionally reinforced. The freehub rotor is made from steel and is equipped with 24-tooth ratchets, which are made from special hardened steel. Heavy-duty axles and oversized hubs allow the wheels to work while bearing high loads. The rims have thicker rim walls and offer plenty of traction. The connecting element between rim and hub, the spokes, have reinforced spoke heads and are made of special steel alloys in order to withstand stronger external forces.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Ratchet System
The robust and reliable star ratchets freehub system can be maintained easily and quickly. The no-tool concept contributes to this, because it allows disassembly without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

SPLINE
Straight pull hubs, straight spokes and strong rims result in a durable wheel. It can therefore be reliably used in training and competition.

Colour Info:

black:

• Rims: black with grey decals
• Hubs: black
• Spokes: black
• Nipples: black

Models:

29" set (front 15x110 Boost + rear 12x148 Boost) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Numbers:

WHX1700BFIXSA18405 (front) + WHX1700TFDSSA18407 (rear)

29" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Numbers:

WHX1700BFIXSA18405 (front) + WHX1700TFD3SA18406 (rear)

29" set (front 15x110 Boost + rear 12x148 Boost) SRAM XD:

Freehub:

SRAM XD

Gearing:

11-/12-speed

Manufacturer Numbers:

WHX1700BFIXSA18405 (front) + WHX1700TFDNSA18408 (rear)

Contents:

• 1 x DT Swiss HX 1700 SPLINE 29" 30 6-Bolt Boost Disc Hybrid Wheelset (front and rear wheel)
• 2 x DT Swiss tubeless valves
• 2 x rolls DT Swiss tubeless rim tape
