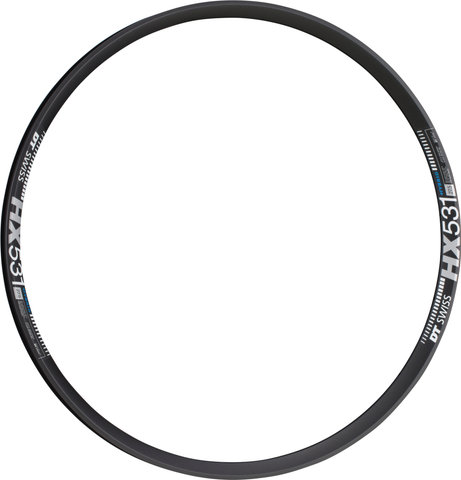

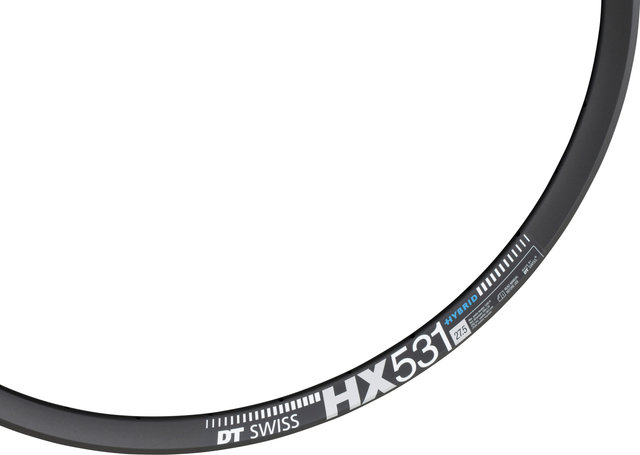

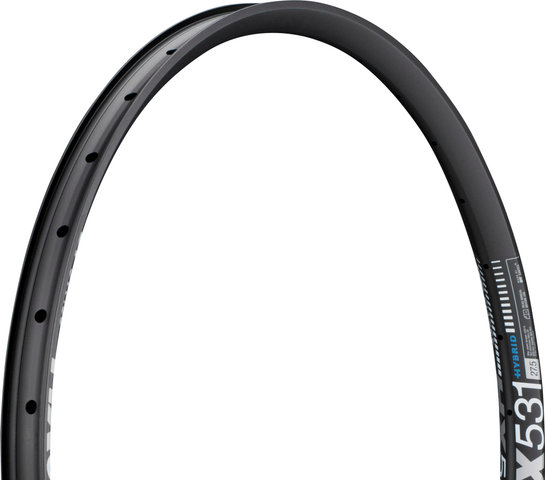

DT Swiss HX 531 Disc 27.5" Rim

If you want to set off into the unknown, the HX 531 with its internal jaw width of 30 mm is your perfect companion. With an ideal balance of strength, weight and width, it can be ridden with many different tyre sizes and is the ideal choice for all eMTB riders that want to ride on real MTB terrain.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

E-Bike

Wheel Size:

27.5" (650B)

Tyre Type:

clincher tyre

Number of Spokes:

28, 32

Brake Type:

disc

Tubeless System:

tubeless ready

Technical Information:

Dimensions (ETRTO):

30-584

Inner Width:

30 mm

Outer Width:

35 mm

Depth:

21 mm

ERD:

563 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

Approved For:

Weight Limit:

150 kg (system weight)

Air Pressure (max.):

4.7 bars

Recommended Tyre Width:

1.85 - 3.5"

Features:

• no eyelets
• 1200 N max. spoke tension
• rim tape: 584x32 mm

Models:

27.5" / 28 hole:

• Wheel Size: 27.5" (650B)
• Number of Spokes: 28
• Manufacturer Number: RDHX53BDPW28SA0570

27.5" / 32 hole:

• Wheel Size: 27.5" (650B)
• Number of Spokes: 32
• Manufacturer Number: RDHX53BDPW32SA0571

27.5" / 36 hole:

• Wheel Size: 27.5" (650B)
• Number of Spokes: 36
• Manufacturer Number: RDHX53BDPW36SA9790

Contents:

• 1 x DT Swiss HX 531 rim

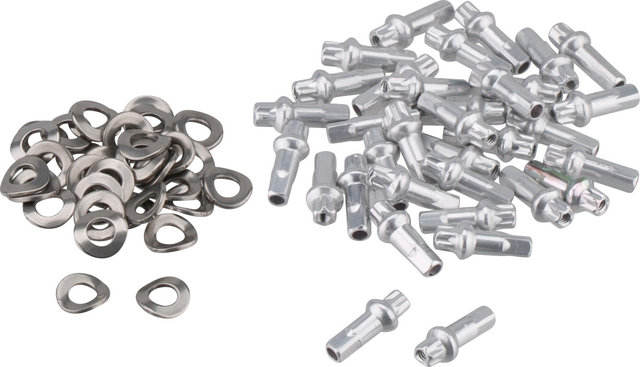

• incl. DT Swiss nipples
• incl. DT Swiss PHR washers
