DT Swiss PR 1400 DICUT OXiC 32 28" Wheelset

A growing OXiC product range: the PR 1400 DICUT® OXiC 32 Wheelset from DT Swiss

The PR 1400 DICUT OXiC 32 joins the popular PR 1400 DICUT OXiC 21 to spearhead new DT Swiss aluminium wheels. The OXiC ceramic surface coating of the wheels provides a braking performance previously unknown to rim brakes. The wide, solid rim with a medium-depth profile definitively enhances the durability and reliability of this wheel set. Increased comfort and grip are added to the handling characteristics of this wheelset when these wheels are combined with tubeless tyres.

Specifications:

Application:

Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

20 (front) / 24 (rear)

Brake Type:

rim brake

Tubeless System:

Tubeless Ready

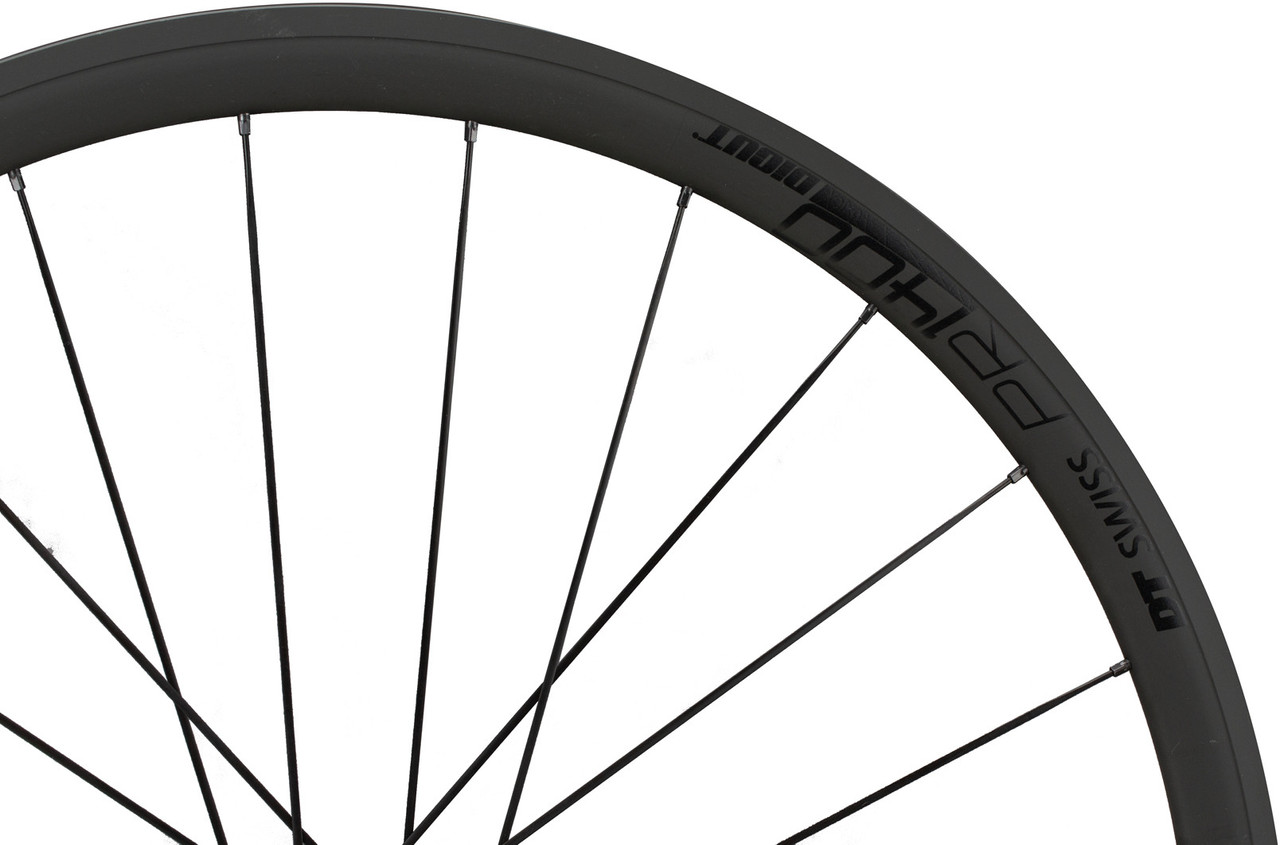

Technical Information - Rim:

Dimensions (ETRTO):

18 - 622

Inner Width:

18 mm

Outer Width:

21 mm

Depth:

32 mm

Rim Material:

aluminium

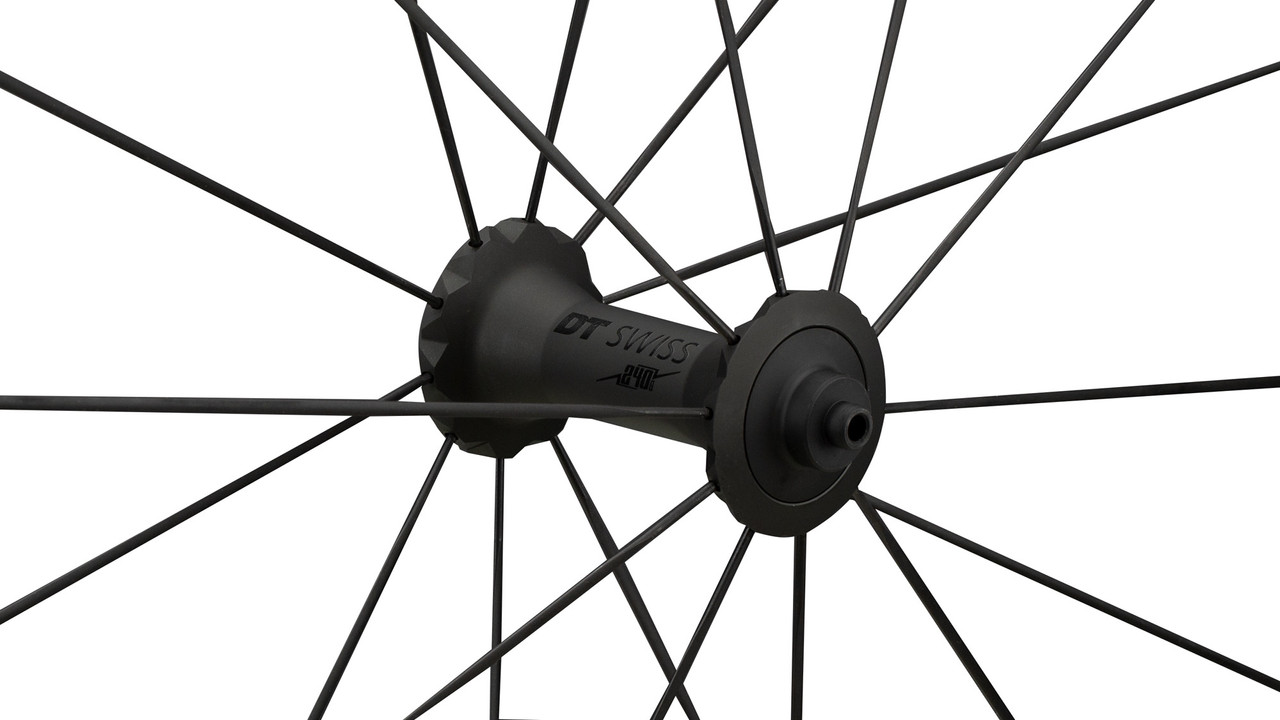

Technical Information - Front Hub:

Type:

240

Over Locknut Dimension:

9 x 100 mm quick release

Body Material:

aluminium

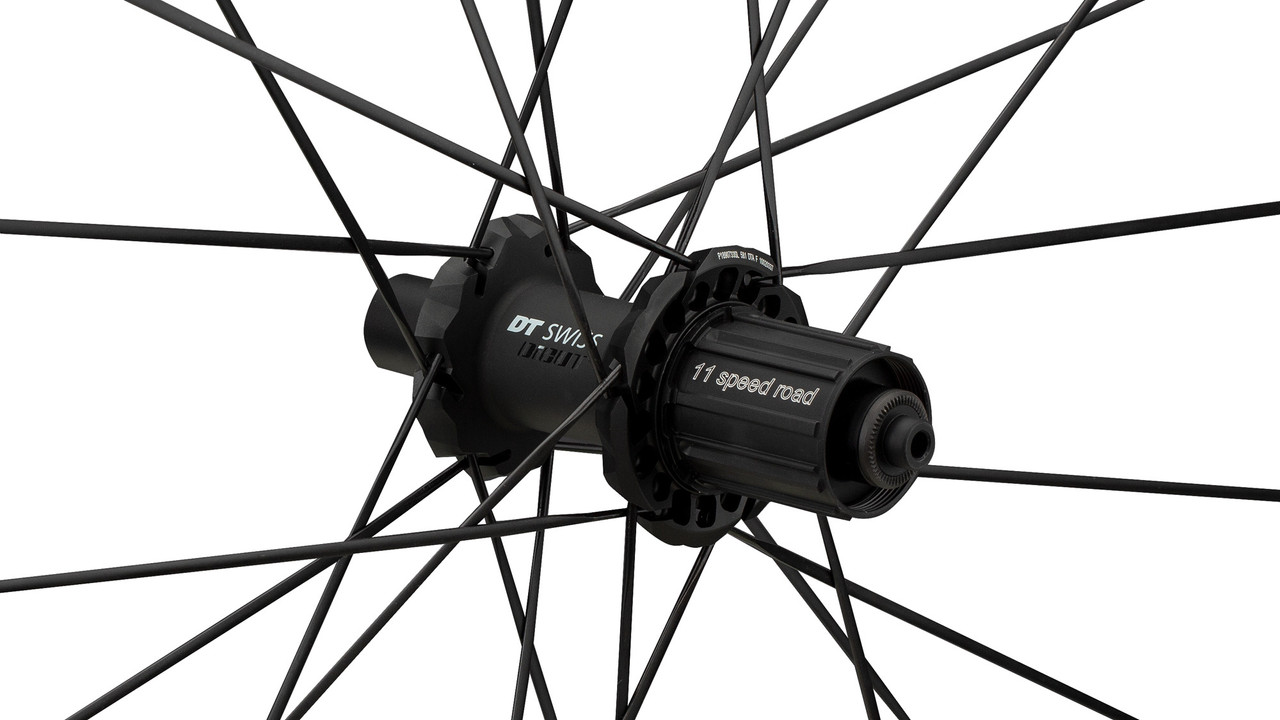

Technical Information - Rear Hub:

Type:

240

Over Locknut Dimension:

10 x 130 mm quick release

Body Material:

aluminium

Freehub Body:

DT Swiss Ratchet System® / 36 SL

Technical Information - Lacing:

Front Lacing Pattern:

radial

Rear Lacing Pattern:

2-cross

Spoke Type:

DT Aero Comp Wide/ straight pull

Spoke Size:

273 mm (front), 281 mm/278 mm (rear l/r)

Spoke Material:

steel

Nipple Type:

DT Pro Lock Squorx ProHead

Nipple Material:

aluminium

Approved For:

Weight Limit:

130 kg (system weight)

Air Pressure (max.):

see user manual (Tire Pressure and Dimension)

Recommended Tyre Width:

see user manual (Tire Pressure and Dimension)

Technology:

OXiC
The OXiC process is an electrochemical ceramic coating that makes the rim surfaces very hard and resistant. The result is a sleek matt black finish, which has excellent braking ability while simultaneously reduces the abrasion on the rim to an absolute minimum.

DICUT®
The RRC DICUT® line is the perfect combination of aerodynamics, technology and design. From the advanced heat-dissipating rims to the reliable Ratchet System® hubs, DICUT® wheels are high-end and made for fast times.

DT ProLock Squorx Pro Head®
The DT Squorx Pro Head nipple combines ease of assembly and lightweight. With an additional Torx and square drive. The Torx drive provides more contact surface when building wheels, which means that the torque transmitted from the tool to the nipple is better distributed. The spherical contact area in the rim guarantees perfect alignment with the spoke.

Ratchet System
The patented freehub system with high-precision star ratchets guarantees maximum load capacity and reliability. Thanks to the no-tool concept, the system is very easy and quick to maintain.

RWS
Patented wheel fastening system. Stiffer, safer and easier to use than a quick release.

Straight Pull
In order to achieve an ideal ratio of weight and stability, many DT Swiss wheels use different forms of straight pull spokes. Straight pull spokes do not need a spoke bend and thus eliminate a weak point. Nevertheless, they can be trued and replaced with standard tools.

Tubeless Ready
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

Models:

28" set (front 9x100 + rear 10x130) Shimano:

• Freehub: Shimano Road
• Gearing: 8-/9-/10-/11-speed
• Note: Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.
• Manufacturer Numbers: WPR1400AAQXKA07121 (front) + WPR1400HRQJKA10990 (rear)

Colour Info:

• Rims: black with black decals
• Hubs: black
• Spokes: black
• Nipples: grey

Contents:

• 1 x DT Swiss PR 1400 DICUT® OXiC 32 wheelset (front and rear wheel)
• 2 x RWS titanium quick releases
• 1 x SRAM XDR freehub body
• 2 x pair SwissStop BXP brake pads
• 2 x tubeless tape, 21 mm
