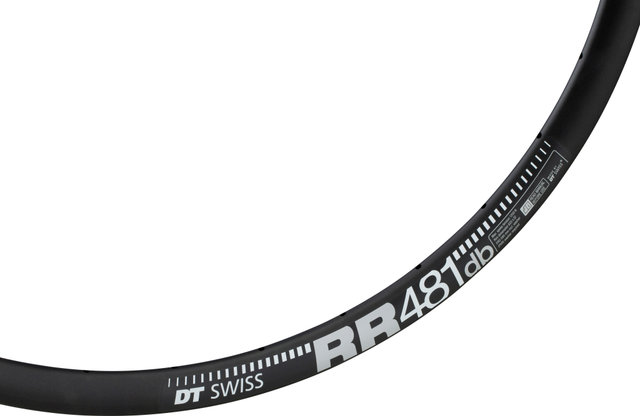

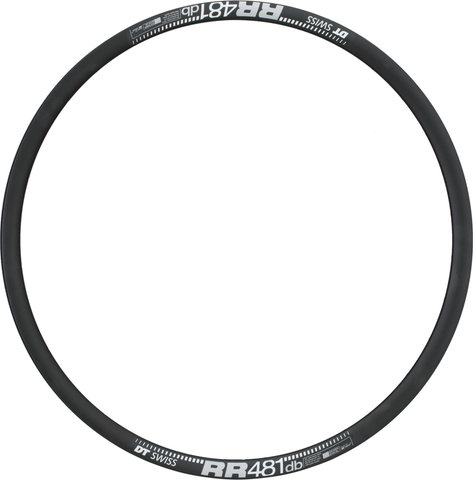

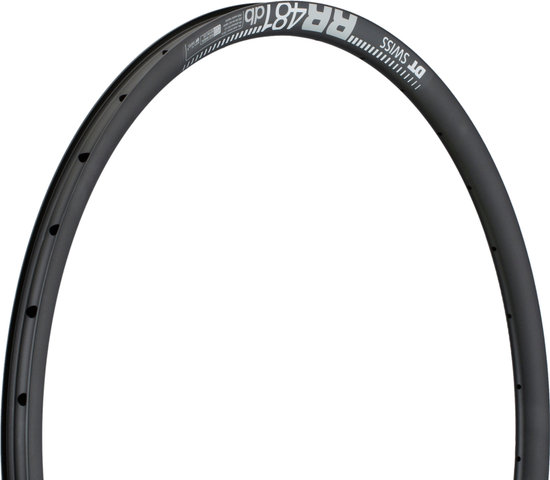

DT Swiss RR 481 Disc 29" Rim

Off the asphalt: the RR 481 Disc 29" rim from DT Swiss

Are you looking for the right rims to ride off the asphalt? The RR 481 is the right choice for you. This extremely stable rim with 22 mm jaw width is approved for a system weight of up to 130 kg, making it ideal for tough off-road applications. No matter whether it's cyclocross, gravel or bikepacking over rough or smooth terrain, the RR 481 will not let you down.

Specifications:

Application:

Cyclocross, Gravel

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

24, 28, 32

Brake Type:

disc

Tubeless System:

Tubeless Ready

Technical Information:

Dimensions (ETRTO):

22-622

Inner Width:

22 mm

Outer Width:

26 mm

Depth:

25 mm

ERD:

594 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

Approved For:

Weight Limit:

130 kg (system weight)

Air Pressure (max.):

7.8 bars

Recommended Tyre Width:

1.10 - 2.5" / 28 - 62 mm

Features:

• for disc brake system
• Non-Eyelet (PHR washer) drilling
• incl. washers (according to the number of rim holes)
• recommended valve: 32 mm
• recommended rim tape: 25 mm

Manufacturer Numbers:

29" / 24 hole:

RDRR48CDPW24SO7546

29" / 28 hole:

RDRR48CDPW28SO7547

29" / 32 hole:

RDRR48CDPW32SO7548

Contents:

• 1 x DT Swiss RR 481 rim

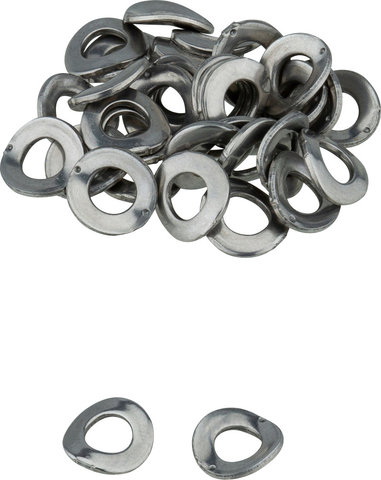

• 1 x washer set DT Swiss (24, 28 or 32 corresponding to the number of holes)
