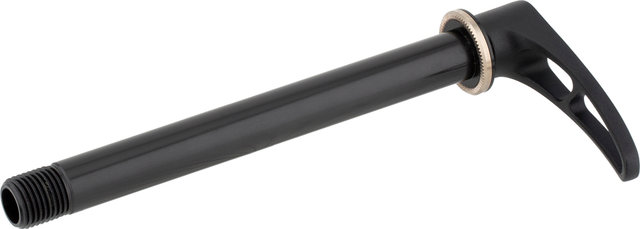

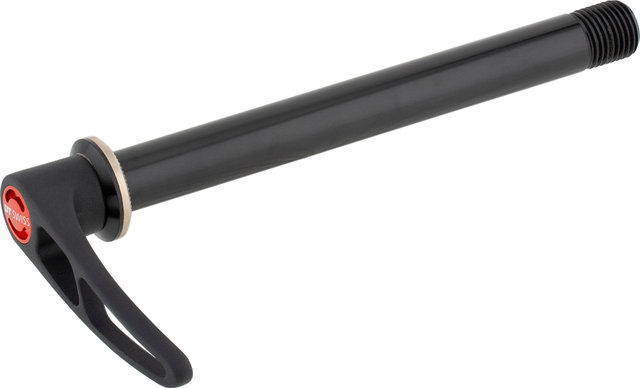

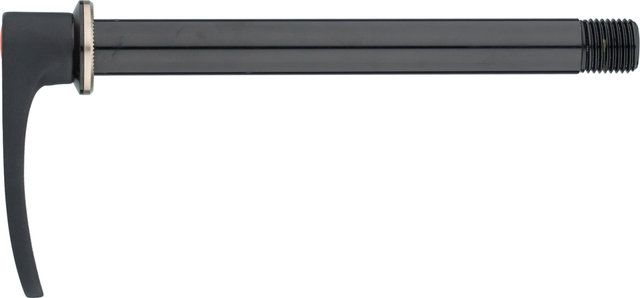

DT Swiss RWS MTB Thru Axle with Quick-Release Lever

DT Swiss RWS thru axle with quick-release lever for mountain bikes

The RWS thru axle from DT Swiss allows you to easily attach wheels to your mountain bike via quick release levers. This makes tool-free assembly possible.

Specifications:

Over Locknut Dimension:

100 mm, 142 mm, 150 mm

Axle Diameter:

12 mm, 15 mm

Technical Information:

Use:

15 x 100 mm, 15 x 150 mm, 12 x 142 mm

Type:

Thru axle with quick-release skewer

Axle Material:

aluminium

Lever Material:

aluminium

Axle Length:

143.1 mm, 167.7 mm, 198 mm

Nominal Diameter:

M12, M15

Thread Pitch:

1 mm, 1.5 mm

Thread Length:

11 mm, 15 mm

Features:

• tool-free installation
• made of full metal

Technology:

RWS:
The Ratchet Wheelmounting System is a system for tool-free wheel mounting for all disciplines of cycling. In the style of quick-release levers, wheels with RWS axles can be quickly attached. However, they can withstand stronger forces caused by higher speeds and increased track requirements. The axles are as stable as thru axles, And thanks to the lever, the axle can be released or clamped as easily as a quick-release axle. The lever is lifted for this reason, and is operated by turning it.

Models:

15 x 100 mm:

Over Locknut Dimensions:

15 x 100 mm

Axle Length:

143.1 mm

Nominal Diameter:

M15

Thread Pitch:

1.5 mm

Thread Length:

15 mm

Manufacturer Number:

HWQASM00S2954S

15 x 150 mm:

Over Locknut Dimensions:

15 x 150 mm

Axle Length:

198 mm

Nominal Diameter:

M12

Thread Pitch:

1.5 mm

Thread Length:

11 mm

Manufacturer Number:

HWQASM00S6498S

12 x 142 mm:

Over Locknut Dimensions:

12 x 142 mm

Axle Length:

167.7 mm

Nominal Diameter:

M12

Thread Pitch:

1 mm

Thread Length:

15 mm

Manufacturer Number:

HWQASM00S2961S

Contents:

• 1 x DT Swiss RWS MTB thru axle with quick-release lever
