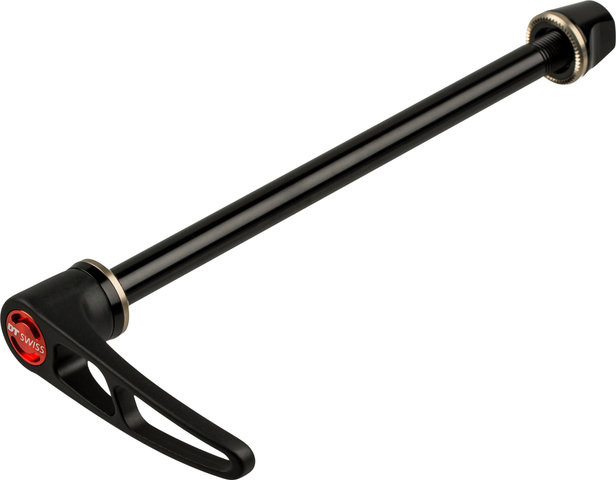

DT Swiss RWS MTB Thru Bolt Thru-Axle

Specifications:

Over Locknut Dimension:

front: 100 mm, 110 mm, 150 mm; rear: 135 mm, 142 mm

Axle Diameter:

5 mm, 12 mm, 15 mm

Technical Information:

Use:

Front: 9 x 100 mm, 15 x 100 mm, 15 x 110 mm, 15 x 150 mm, Rear: 10 x 135 mm, 12 x 142 mm

Type:

quick release, RWS

Axle Material:

aluminium (7075)

Lever Material:

polyamide

Features:

• safe and simple operation
• 9 x 100 mm and 10 x 135 mm versions with conical end nut
• 100% suitable for disc brakes, as temperature-independent
• free-adjusting lever which does not interfere with gripping force
• clamping lever made of carbon fibre reinforced polyamide
• 12 x 142 mm version (X-12 variant) with conical receptacle

Manufacturer Numbers:

9 x 100 mm:

HWQASM00S2935S

15 x 100 mm:

HWQASM00S2954S

15 x 110 mm:

HWQASM00S3486S

10 x 135 mm:

HWQASM00S2945S

12 x 142 mm:

HWQASM00S2955S

15 x 150 mm:

HWQASM00S6498S

Contents:

• 1 x DT Swiss RWS MTB Aluminium Thru Bolt thru-axle

• black/9 x 100 mm: 58 g
• black/10 x 135 mm: 70 g
