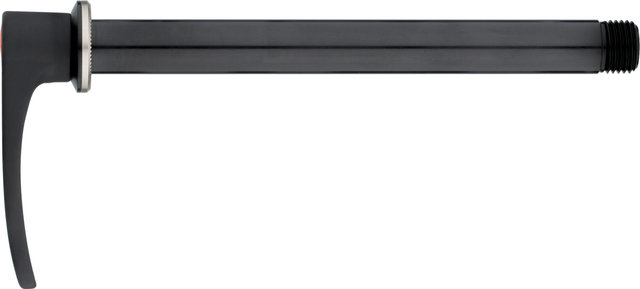

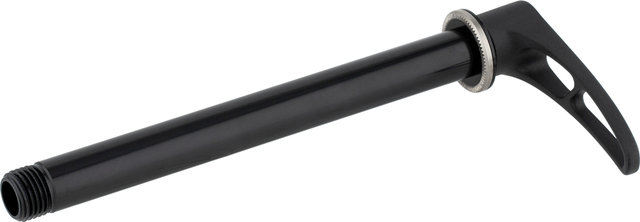

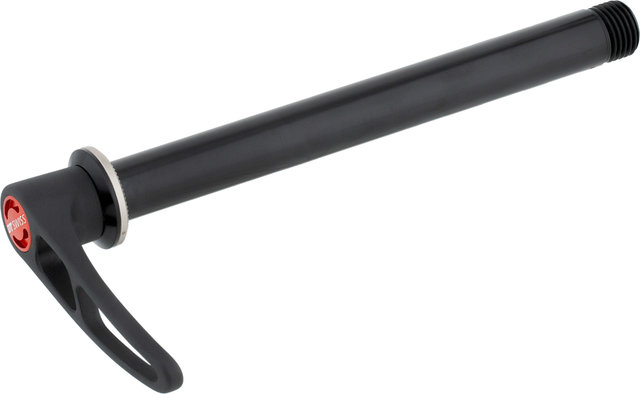

DT Swiss RWS Predictive Steering MTB Thru Axle with Quick-Release Skewer

DT Swiss RWS Predictive Steering MTB Thru-Axle with quick release skewer for SRAM hubs

The thru-axle from DT Swiss is suitable for mountain bikes with Predictive Steering hubs from SRAM. It is equipped with the tried-and-tested RWS quick-release lever and allows for tool-free and secure wheel mounting.

Specifications:

Over Locknut Dimension:

110 mm

Axle Diameter:

15 mm

Technical Information:

Use:

15 x 110 mm

Type:

Thru axle with quick-release skewer

Axle Material:

aluminium

Lever Material:

aluminium

Axle Length:

148 mm

Nominal Diameter:

M15

Thread Pitch:

1.5 mm

Thread Length:

10 mm

Compatibility:

• SRAM Predictive Steering Hubs

Features:

• tool-free installation
• made of full metal

Technology:

RWS:
The Ratchet Wheelmounting System is a system for tool-free wheel mounting for all disciplines of cycling. In the style of quick-release levers, wheels with RWS axles can be quickly attached. However, they can withstand stronger forces caused by higher speeds and increased track requirements. The axles are as stable as thru axles, And thanks to the lever, the axle can be released or clamped as easily as a quick-release axle. The lever is lifted for this reason, and is operated by turning it.

Models:

15 x 110 mm:

Over Locknut Dimensions:

15 x 110 mm

Axle Length:

148 mm

Nominal Diameter:

M15

Thread Pitch:

1.5 mm

Thread Length:

10 mm

Manufacturer Number:

HWQASM00S3486S

Contents:

• 1 x DT Swiss RWS Predictive Steering MTB thru axle with quick-release lever
