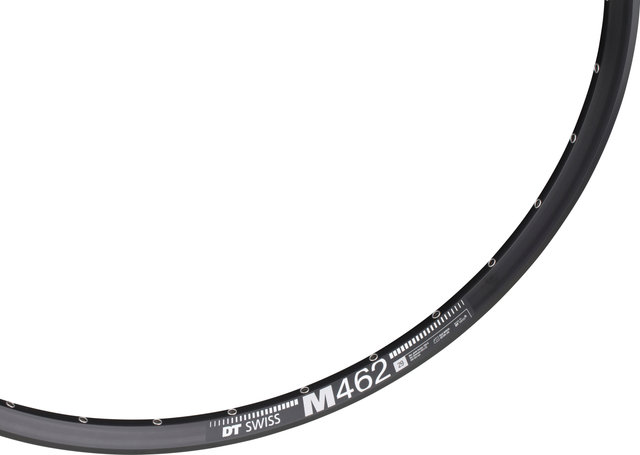

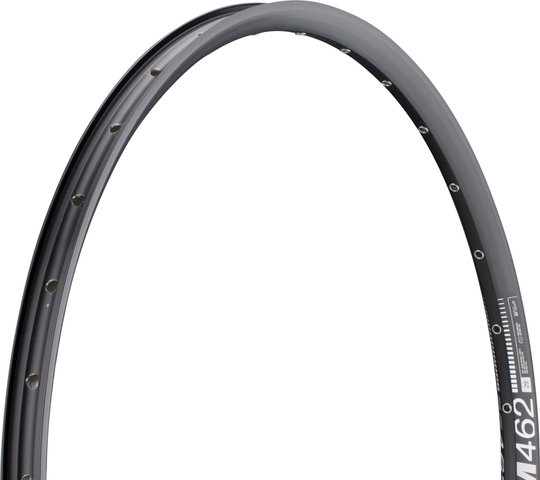

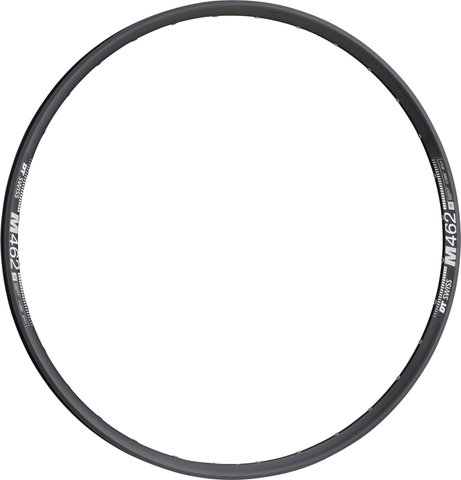

DT Swiss Rim

The M 462 is based on the extremely successful enduro rims from DT Swiss, on which the world's fastest riders have won at the highest competitive levels. The M 462 packs this technology into a slightly slimmed-down package for all-mountain bikes, while remaining affordable thanks to the wrapped rim joint.

Specifications:

Application:

All Mountain

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28, 32

Brake Type:

disc

Tubeless System:

tubeless ready

Technical Information:

Dimensions (ETRTO):

25-622

Inner Width:

25 mm

Outer Width:

30 mm

Depth:

19.5 mm

ERD:

603 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

Approved For:

Weight Limit:

120 kg (system weight)

Air Pressure (max.):

5.5 bars

Recommended Tyre Width:

1.5 - 3.0"

Features:

• single eyelets
• 1200 N max. spoke tension
• rim tape: 622x27 mm

Models:

29" / 28 hole:

• Wheel Size: 29"
• Number of Spokes: 28
• Manufacturer Number: RDM04629S28S011509

29" / 32 hole:

• Wheel Size: 29"
• Number of Spokes: 32
• Manufacturer Number: RDM04629S32S011510

Contents:

• 1 x DT Swiss M 462 rim

• black/28/29": 510 g
