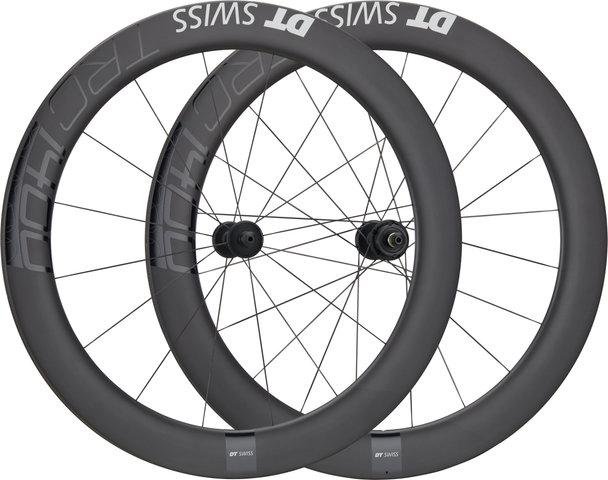

DT Swiss TRC 1400 DICUT 65 Carbon 28" Tubular Wheelset

DT Swiss TRC 1400 65 Carbon 28" Wheelset - Fast wheels for the wooden oval

The TRC 1400 DICUT wheelset from DT Swiss is made for classic track bikes with tubular tyres. With 65 mm deep carbon rim wall, aero hub and streamlined spokes, the wheels are particularly aerodynamic and easily overcome air resistance.

Specifications:

Application:

Track

Wheel Size:

28"

Tyre Type:

tubular

Number of Spokes:

16 (front), 20 (rear)

Brake Type:

none

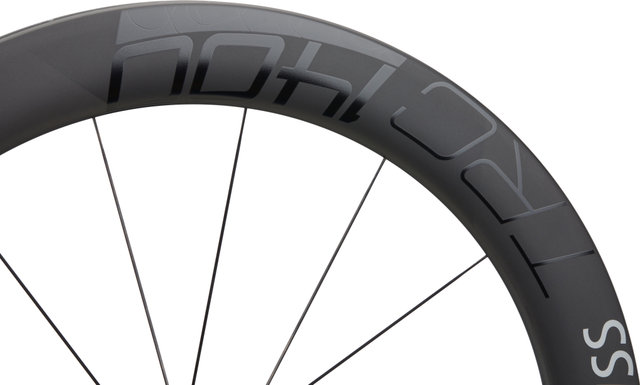

Technical Information - Rim:

Dimensions (ETRTO):

25-622

Rim Width:

25 mm

Depth:

65 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

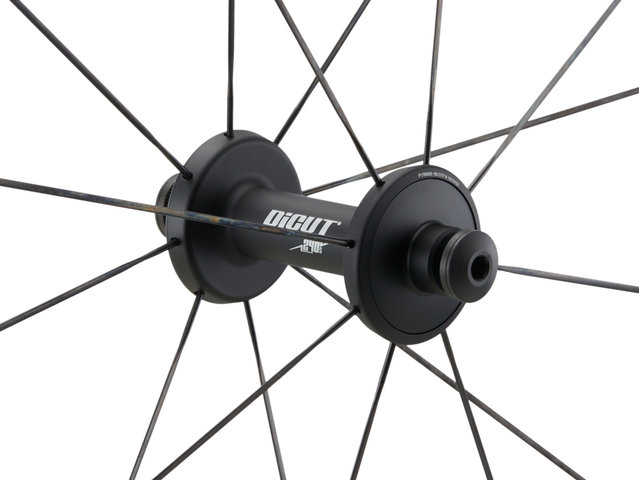

Technical Information - Front Hub:

Type:

240 straight pull

Over Locknut Dimension:

9 x 100 mm threaded axle

Bearings:

steel bearings

Body Material:

aluminium

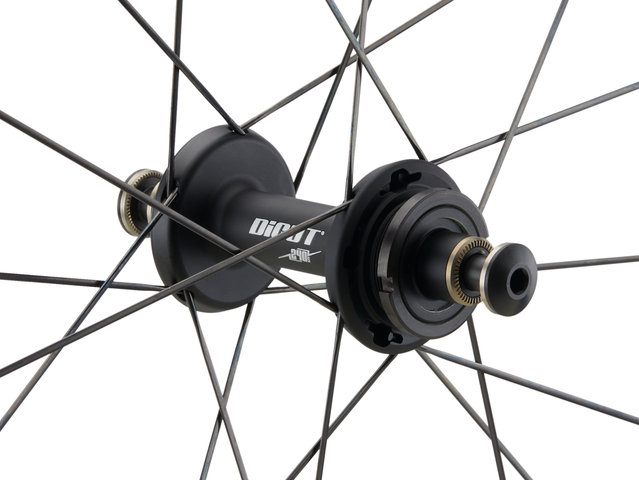

Technical Information - Rear Hub:

Type:

240 straight pull

Over Locknut Dimension:

10 x 120 mm threaded axle

Bearings:

steel bearings

Body Material:

aluminium

Technical Information - Lacing:

Front Lacing Pattern:

radial

Rear Lacing Pattern:

1-cross

Spoke Type:

DT Aerolite straight pull

Spoke Material:

stainless steel (18/10)

Nipple Type:

DT Pro Lock Hidden

Nipple Size:

12 mm (length) / 2 mm (diameter)

Nipple Material:

aluminium

Approved For:

Weight Limit:

110 kg (system weight)

DICUT:
The DICUT line is the perfect combination of aerodynamics, technology and design. From the advanced heat-dissipating rims to the reliable Ratchet System hubs, DICUT wheels are high-end and made for fast times.

Technology:

Intended use - Category 1:
Suitable for predominantly paved surfaces.

Colour Index:

black:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: black

Models:

28" set (front 9x100 + rear 10x120):

Freehub:

screw-on cassette

Sprocket Mount:

Thread (1.375" x24)

Manufacturer Numbers:

WTRC140AAGXCA04415 + WTRC140DRFWCA04416

Contents:

• 1 x DT Swiss TRC 1400 DICUT 65 carbon wheelset (front and rear wheel)
• 2 x valve protection stickers
