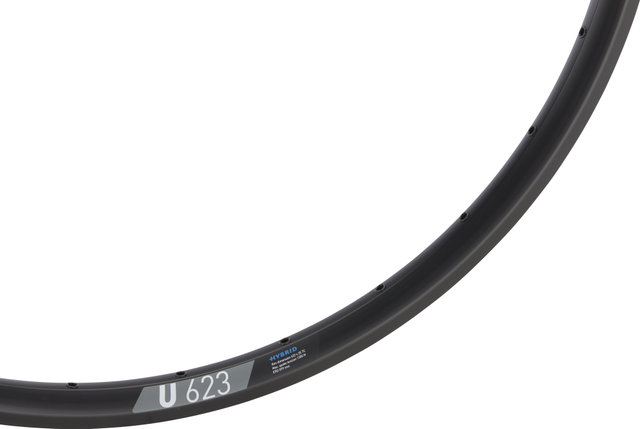

DT Swiss U 623 Disc 29" Hybrid Utility RIm

The DT Swiss U 623 Disc 29" Hybrid Utility rim - for e-trekking bikes

The U 623 Hybrid Utility rim by DT Swiss is the ideal basis for a 29" disc brake wheel with which you can equip your e-bike. Whether it's a day-long bike ride, commuting or supermarket shopping - with this HYBRID rim, your bike can do it all. It was specifically designed to compensate for the higher weight of electrically powered bicycles.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

City & Touring

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28, 32

Brake Type:

disc

Tubeless System:

Tubeless Ready

Technical Information:

Dimensions (ETRTO):

25-622

Rim Flange:

with hook

Inner Width:

25 mm

Outer Width:

30 mm

Depth:

22 mm

ERD:

599 mm

Valve Hole Diameter:

Schrader/Dunlop (8.5 mm), incl. Presta reducer

Rim Material:

aluminium

Approved For:

Weight Limit:

180 kg (system weight)

Air Pressure (max.):

see user manual (Tire Pressure and Dimension)

Recommended Tyre Width:

see user manual (Tire Pressure and Dimension)

Technology:

Intended use - Category 2
Suitable for use on predominantly paved and partially unpaved ground with a slight slope and a temporary loss of ground contact as well as drops of up to 15 cm.

Manufacturer Numbers:

28 hole:

RDU623CDAB28SA9806

32 hole:

RDU623CDAB32SA9807

Contents:

• 1 x DT Swiss U 623 Disc 29" Hybrid Utility rim
