DVO Suspension Topaz 2 Air Trunnion Shock

The Topaz 2 Shock by DVO Suspension for trunnion dimensions with a larger negative air chamber

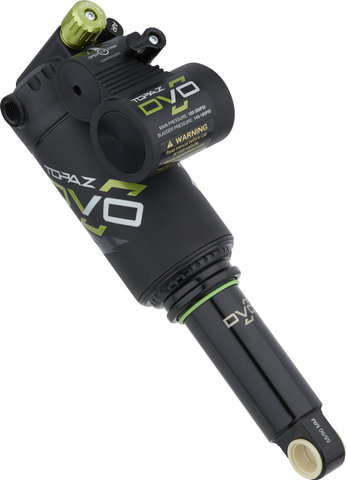

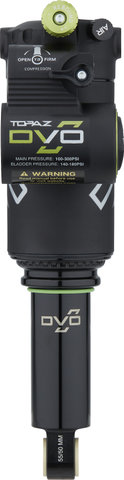

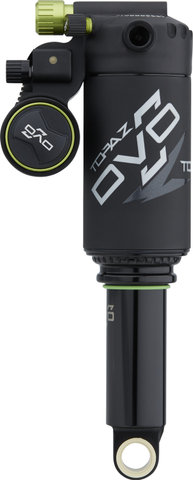

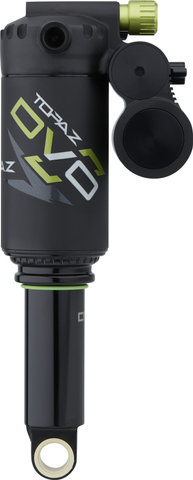

The DVO Suspension Topaz 2 Air shock for cross-country, all-mountain and enduro bikes with trunnion mount allows you to find the perfect setup with various adjustment and tuning options. Compared to its predecessor, it has been completely revised and features a larger negative air chamber, which reduces the breakaway force. This is particularly advantageous on bikes with rather low gear ratios. The transversely mounted expansion reservoir supports oil flow and also ensures that the shock fits into various frame designs. The compression damping is adjustable in three positions via a lever, so you can quickly find the right setting for the road ahead. Spacers allow you to adjust the air volume in both the positive and negative air chambers. Further fine-tuning is possible by varying the air pressure in the bladder. The shock is delivered in a protective case, spacers and a suspension pump are also included.

Specifications:

Application:

Cross Country, All Mountain, Enduro

Suspension Type:

air

Size x Stroke:

185 x 52.5 mm, 185 x 55 mm, 205 x 60 mm, 205 x 62.5 mm, 205 x 65 mm

Rear Shock Mounts:

Trunnion

Technical Information:

Damping System:

T3

Bushing Material:

Composite

Body Material:

Aluminium

Shaft Material:

Aluminium

Air Chamber Volume:

HV High Volume Negative

Adjustment Options:

Compression:

Yes, 3-position lever (Open / Mid / Firm)

Rebound:

yes

Remote:

no

Approved For:

Air Pressure (max.):

300 psi (air chamber), 180 psi (bladder)

Features:

• completely revised and optimised design
• larger negative air chamber than the predecessor reduces breakaway force
• T3 lever for adjusting the compression damping in three positions: Closed for efficient pedalling, Medium for changeable trails and Open for descents

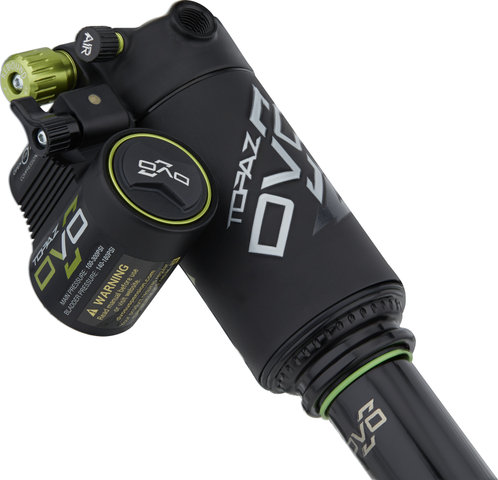

• transversely mounted reservoir for better oil flow and high frame compatibility
• easy-to-install volume spacers can be used for positive and negative air chambers, thus versatile tuning options
• sensitive response behaviour
• bladder air pressure adjustable between 140 and 180 psi to customise the riding experience
• with suspension pump

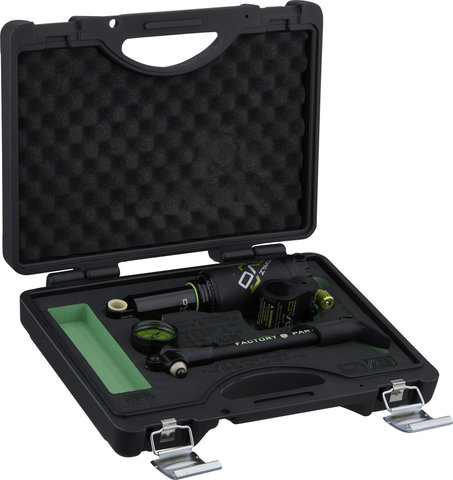

• comes in a practical carrying case

Manufacturer Numbers:

185 mm x 52.5 mm:

223-9152T-STD

185 mm x 55 mm:

223-9155T-STD

205 mm x 60 mm:

223-9160T-STD

205 mm x 62.5 mm:

223-9162T-STD

205 mm x 65 mm:

223-9165T-STD

Contents:

• 1 x DVO Suspension Topaz 2 Air Trunnion shock

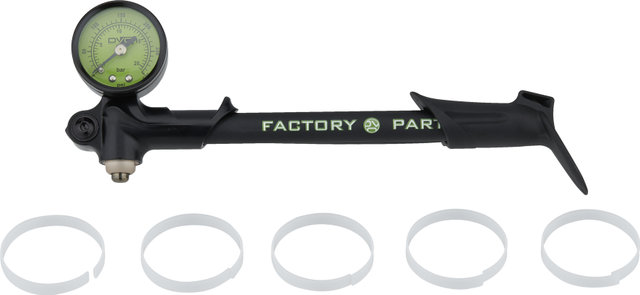

• 1 x DVO Suspension suspension pump
• 5 x DVO Suspension volume spacers
• 1 x DVO Suspension tool box
