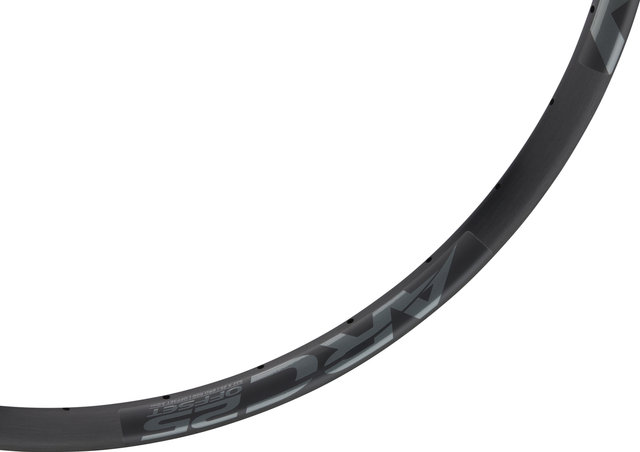

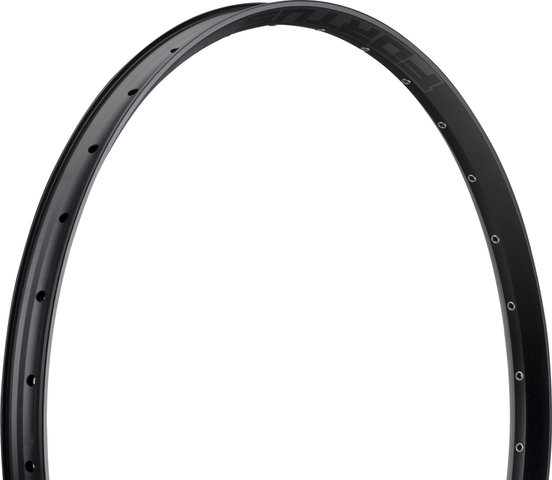

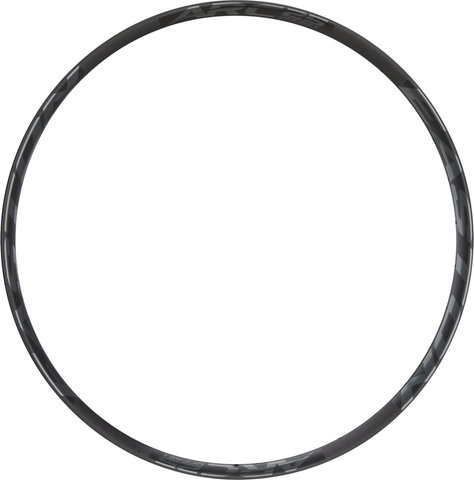

Easton ARC 25 Offset 28" Disc Rim

The Easton ARC Offset rim with 25 mm jaw width is the perfect basis for 28" gravel wheels. The asymmetric, stiff tubeless-ready rim in hookless design can be ridden with up to 2.09" wide tyres and low pressure so that you can also master trail-heavy tours without any issues.

Specifications:

Application:

Gravel

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

28, 32

Brake Type:

disc

Tubeless System:

Tubeless Ready

Technical Information:

Dimensions (ETRTO):

25-622

Rim Flange:

with hook

Inner Width:

25 mm

Outer Width:

29 mm

Depth:

20 mm

ERD:

600 mm

Valve Hole Diameter:

SV / Presta (6.5 mm)

Rim Material:

aluminium (6069)

Approved For:

Air Pressure (max.):

4.7 bar (1.4" ), 3.2 bar (2.1" )

Recommended Tyre Width:

1.4" - 2.1"

Features:

• asymmetrical design to optimise spoke tension
• wider offset design for secure handling on trails

Models:

28 hole:

Number of Spokes:

28

Manufacturer Number:

8022960

32 hole:

Number of Spokes:

32

Manufacturer Number:

8022961

Contents:

• 1 x Easton ARC 25 Offset 28" Rim
