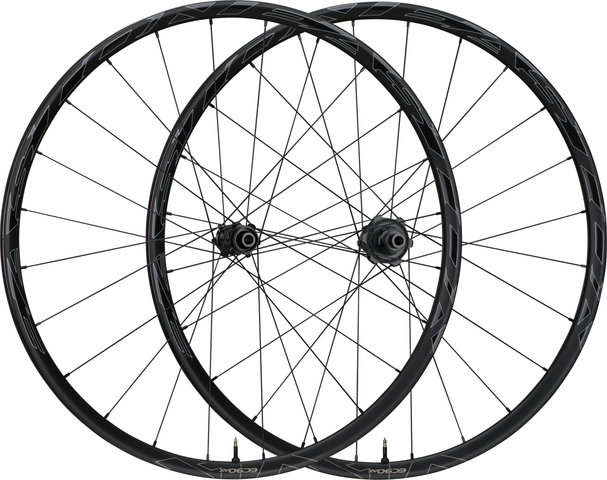

Easton EC90 AX Disc Center Lock Carbon 28" Wheelset

The EC90 AX Disc Center Lock Carbon 28" wheelset by Easton - made for adventure

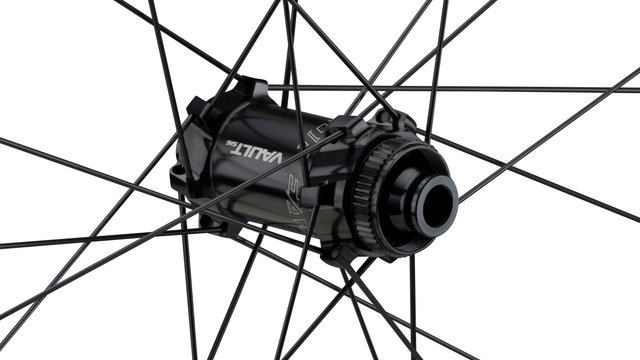

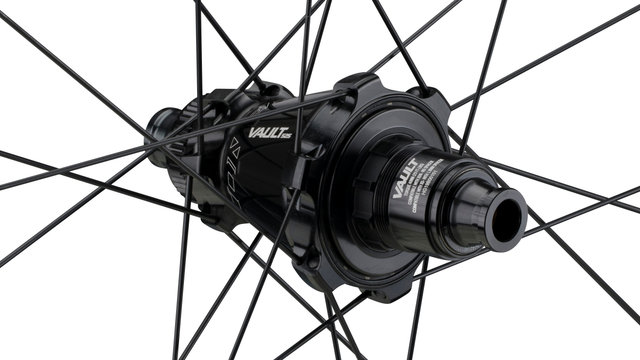

With the EC90 AX wheelset, the Gravel tracks of the world are open to you, because this stable Gravel wheelset made of carbon scores in every category. The wider angle of the rims combined with the light weight gives you absolute control. The large internal width of 24 mm offers space for tyres with a width of more than 35 mm. Durable rims don't mean you get durable wheels. Therefore a revision of the well-known Vault hub is used. With larger bearings and improved seals, it resists dirt, dust and moisture. Sapim spokes, Center Lock disc brakes and the possibility to ride tubeless make the EC90 AX wheelset the perfect base for your Gravel Bike.

Specifications:

Application:

Road, Gravel, Cyclocross

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

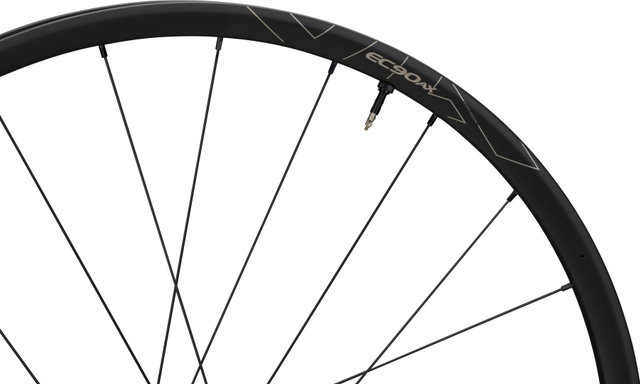

Technical Information - Rim:

Dimensions (ETRTO):

24-622

Inner Width:

24 mm

Outer Width:

31 mm

Depth:

21 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

Technical Information - Front Hub:

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

sealed cartridge bearings

Body Material:

aluminium

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

sealed cartridge bearings

Body Material:

aluminium

Freehub Body:

3 pawls

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

Sapim / straight pull / straight / double butted

Spoke Material:

stainless steel

Nipple Type:

DT External

Nipple Material:

aluminium

Colour Index:

gloss carbon:

• Rims: shiny black with matte decals
• Hubs: black
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.

28" set (front 12x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub.

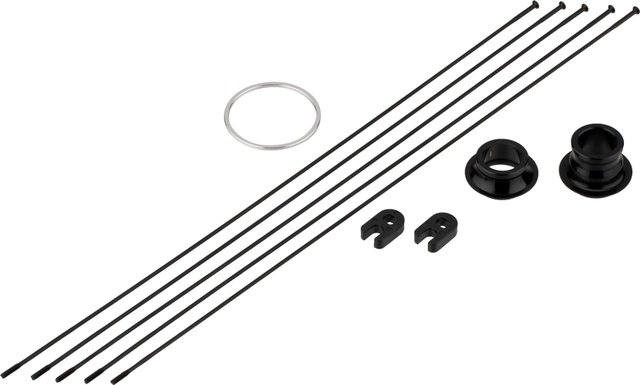

Contents:

• 1 x Easton EC90 AX Disc Center Lock wheelset (front and rear)
