Elite Qubo Power Smart B+ Trainer

Qubo Power Smart B+ Trainer by Elite - Train Smarter

The Qubo Power Smart B+ Trainer by Elite lets you transfer your training data wirelessly with ANT+ and Bluetooth Smart to your smartphone. It is also possible to record the training data with a current bike computer. With Power Mag technology, 8 resistance levels can be set via a switch on the handlebars. This makes everything from skill training to strength training possible. The 30 mm diameter Elastogel rollers reduce noise levels by 50% and also guarantee better grip on the tyre. The frame itself is modern and consists of durable steel and high-tech plastic materials. This makes it extremely robust. It can be used to perfectly simulate lifelike riding on the road. In addition, the Qubo Power Smart B+ shines with maximum compatibility. All wheels with a diameter from 20" to 29" can be used. As the icing on the cake, the trainer features the Fast-Fixing-System, a mechanism for quickly attaching the bike. The training system is set up in one easy step and you can get started right away!

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Type:

fixed trainer

Resistance Adjustment:

handlebar lever

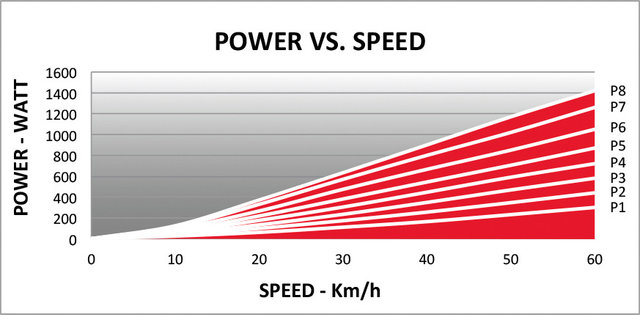

Brake Power (max.):

900 watts at 40 km/h

Simulated Slope (max.):

6%

Power Meter:

Yes, accuracy +/- 5%

Data Transfer:

Bluetooth 4.0, ANT+

Protocol:

PWR (Power), S&C (Speed & Cadence)

• Android: upwards of Android 4.3 & Bluetooth 4.0
• Apple: current iOS-version & Bluetooth 4.0

If you want to be absolutely sure your smartphone is compatible, please refer to the following Elite lists: Android and Apple.

Technical Information:

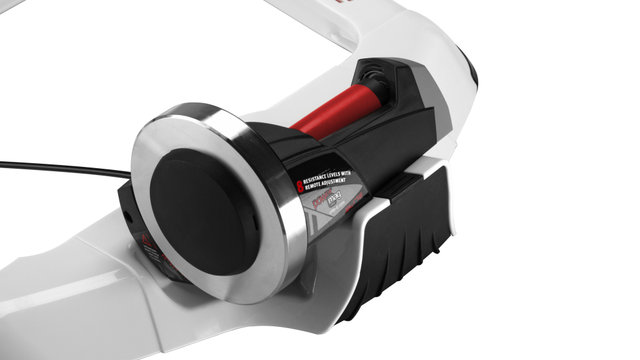

Resistance Unit:

magnetic brake

Resistance Levels:

8

Fly Wheel:

2.3 kg

Dimensions (L x W x H):

590 x 560 x 415 mm

Compatibility:

Wheel Size:

20" , 24" , 26" , 27.5" , 28" , 29"

Axle Type:

quick release, 10/12 mm thru-axle optional with thru-axle adapter kit for trainers

Hub Width:

130 mm, 142 mm, 148 mm

Features:

• included software: Elite My E-Training (Elite My E-Training Mobile App free for 12 months)

Technology:

Elite App My E-Training
The app My E-Training available for smartphones and tablets, iOS and Android offers the possibility of an interactive, inspiring and stimulating training. It is compatible with ANT+ and Bluetooth Smart sensors.
My E-Training displays and manages data on power, cadence, heart rate, speed, time and distance. You can train with Elite's RealVideos and download hundreds of My RealVideos created by Real users for free.
My E-Training includes: My RealVideo, Base Training, Conconi-Test, Training-Test, Trips by map, multi-user system, simplified creation of training programs, video playlist and share results.
It is recommended to use the trainer with the Elite App My E-Training designed for smartphones and tablets, but you can also use it with other apps compatible with Bluetooth Smart or ANT+ protocols.

Fast Fixing
The Fast Fixing fastening system makes it easy to attach the bike to the frame. Locking the automatic lever does not require any additional operations. All you have to do is push the lever down to lock the bike completely to the support frame. The bike is locked/unlocked with one hand.

Smart Training
Resistance unit that wirelessly transmits speed, cadence and power data with both ANT+ and Bluetooth Smart transmission protocols for complete and easy compatibility with smartphones, tablets, bike computers and apps that have either protocol.

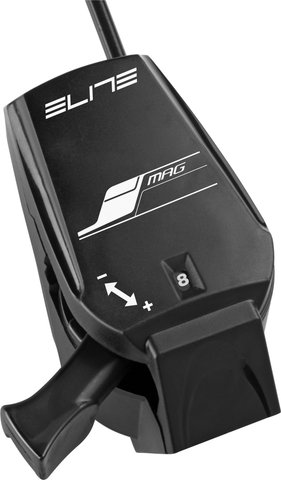

Power Mag Technology
Magnetic unit with 8 levels, adjustable via a switch on the handlebars. The new system with 8 resistance levels provides an extremely wide range of reachable strength levels, which guarantees every type of training - from skill training (level 1) to strength training even at lower speeds (higher levels).

Elastogel Roller
The 30 mm diameter Elastogel roller reduces the noise level by 50% and improves grip on the tyre.

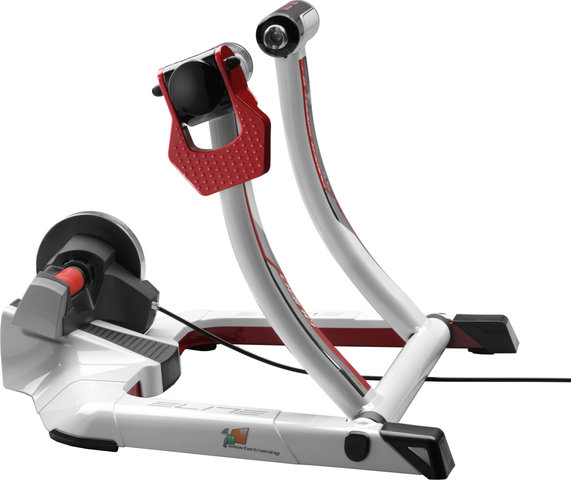

Qubo Frame
The Qubo frame is characterised by a modern, aggressive design in which resistant steel structures and technological plastic materials are perfectly integrated. It is equipped with the exclusive Crono compass system, which allows a lifelike simulation of road performance (weight/power). Great stability and safety: stability has been significantly improved compared to previous versions thanks to the larger contact surface and the optimisation of the centre of gravity of the cycle + cyclist system in relation to the frame. This allows training in complete safety even at high speeds or maximum effort.

Manufacturer Number:

0121026

Contents:

• 1 x Elite Qubo frame
• 1 x Elite Qubo resistance unit
• 10 x Elite support feet
• 1 x quick releases
• 2 x M6 bolts
