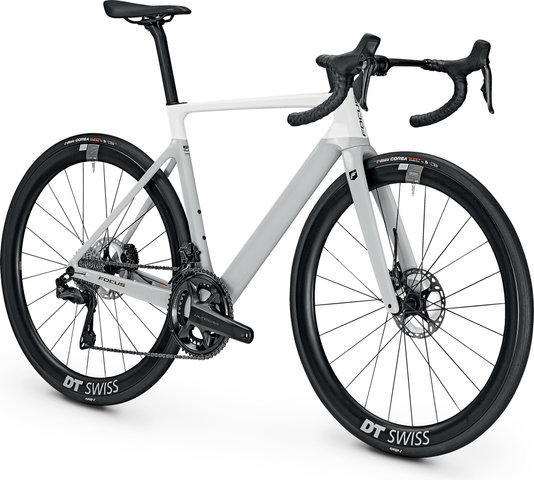

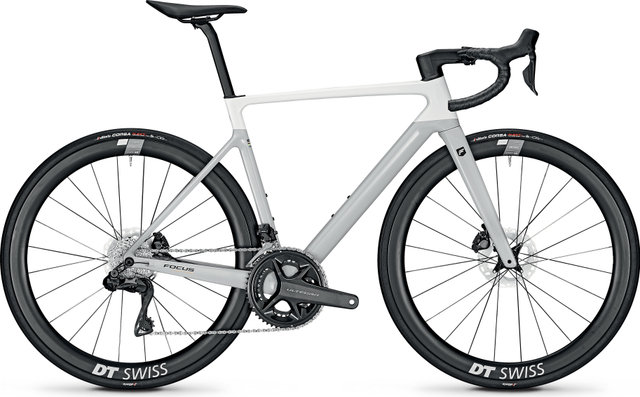

FOCUS Izalco Max 9.8 28" Road Bike

The FOCUS Izalco Max 9.8 28" carbon road bike with electronic Shimano Ultegra groupset

The FOCUS Izalco Max 9.8 is a carbon road bike from FOCUS that is not only lightweight, but also extremely aerodynamic thanks to its wind tunnel-optimised design. The electronic Shimano Ultegra Di2 2x12-speed drivetrain and the DT Swiss ARC 1600 wheelset help it to achieve more speed and a higher performance. 28 mm wide tyres provide more comfort, while the Shimano Ultegra disc brakes ensure safety. Thanks to the mount integrated into the stem, you can always keep an eye on your bike computer.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

Road

Wheel Size:

28"

Sizes:

S, M, L, XL

Frame Material:

carbon

Fork Material:

carbon

Components:

Frame:

FOCUS Izalco Max, MAX Technology Carbon, flat mount disc, 12 x 142 mm thru-axle, internal cable routing

Fork:

FOCUS Izalco Max, MAX Technology Carbon, internal cable routing, flat mount disc, 371.5 mm axle-to-crown length, 46 mm offset, 12 x 100 mm thru-axle

Stem:

FOCUS C.I.S. 2.0 integrated, aluminium, 31.8 mm, with integrated mount for Garmin / Wahoo bike computers

Handlebars:

Easton EC70 Aero, carbon, 125 mm drop, 80 mm reach, 31.8 mm

Headset:

Acros IS52/28.6 - IS52/40 (ICR), FOCUS integrated C.I.S.

Seatpost:

FOCUS Aero Carbon, D-Shape, 350 mm, 15 mm setback

Saddle:

Fizik Vento Argo R5

Crank:

Shimano Ultegra FC-R8100, 12-speed, Shimano Press Fit Road BB86 bottom bracket, 36-52 T

Pedals:

none

Brakes:

Shimano Ultegra BR-R8170, 160 mm / 160 mm

Shift/Brake lever:

Shimano Ultegra Di2 R8150

Rear Derailleur:

Shimano Ultegra Di2, RD-R8150, 12-speed

Front Derailleur:

Shimano Ultegra Di2 R8150, 2x12-speed

Cassette:

Shimano Ultegra CS-R8100, 12-speed, 11-30 t

Chain:

Shimano XT CN-M8100

Wheels:

DT Swiss ARC 1600, carbon, 22-622, 45 mm rim height, 12 x 100 mm / 12 x 142 mm

Tyres:

Vittoria Corsa Next, Tubeless Ready, 700 x 28C

Approved For:

Weight Limit:

110 kg

Features:

• lightweight carbon road bike with aerodynamically optimised geometry
• only 865 g frame weight and 400 g fork weight
• fully integrated cable routing, innovative C.I.S. aero stem with computer mount
• wide 28 mm tyres for comfort and more puncture protection
• Shimano Ultegra Di2 12-speed groupset and disc brakes
• DT Swiss ARC 1600 wheels with 45 mm deep carbon rims

Technology:

C.I.S.
Fully-integrated C.I.S. cable routing ensures a tidy cockpit. All cables run through the special stem and headset directly into the frame. Perfect braking and shifting is guaranteed at all times.

Geometry:

S:

Frame Size:

52 cm

Stack:

531 mm

Reach:

378 mm

Seat Tube Length:

495 mm

Effective Top Tube Length:

530 mm

Head Tube Length:

115 mm

Chainstay Length:

410 mm

Wheelbase:

975 mm

BB Drop:

72 mm

Seat Tube Angle:

74°

Head Tube Angle:

72°

Stem Length:

100 mm

Handlebar Width:

40 cm

Crank Arm Length:

170.0 mm

M:

Frame Size:

54 cm

Stack:

552 mm

Reach:

380 mm

Seat Tube Length:

515 mm

Effective Top Tube Length:

543 mm

Head Tube Length:

135 mm

Chainstay Length:

410 mm

Wheelbase:

979 mm

BB Drop:

72 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

72.5°

Stem Length:

110 mm

Handlebar Width:

42 cm

Crank Arm Length:

172.5 mm

L:

Frame Size:

56 cm

Stack:

571 mm

Reach:

399 mm

Seat Tube Length:

535 mm

Effective Top Tube Length:

568 mm

Head Tube Length:

155 mm

Chainstay Length:

410 mm

Wheelbase:

1004 mm

BB Drop:

72 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

72.5°

Stem Length:

110 mm

Handlebar Width:

42 cm

Crank Arm Length:

172.5 mm

XL:

Frame Size:

58 cm

Stack:

592 mm

Reach:

401 mm

Seat Tube Length:

555 mm

Effective Top Tube Length:

582 mm

Head Tube Length:

175 mm

Chainstay Length:

410 mm

Wheelbase:

1008 mm

BB Drop:

72 mm

Seat Tube Angle:

73°

Head Tube Angle:

73°

Stem Length:

120 mm

Handlebar Width:

42 cm

Crank Arm Length:

175.0 mm

Manufacturer Number:

66301201

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x FOCUS Izalco Max 9.8 28" road bike
