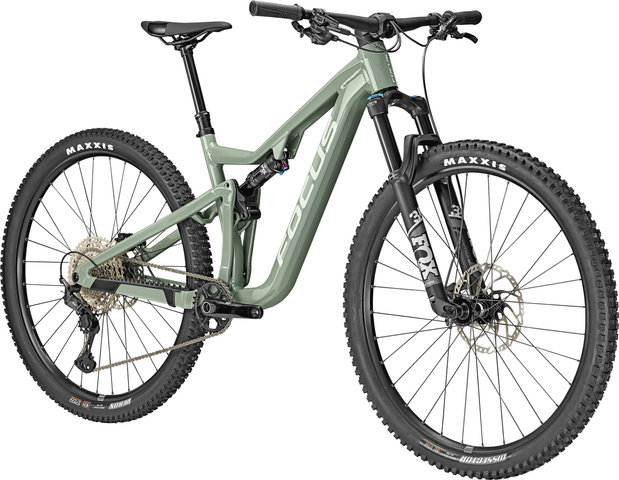

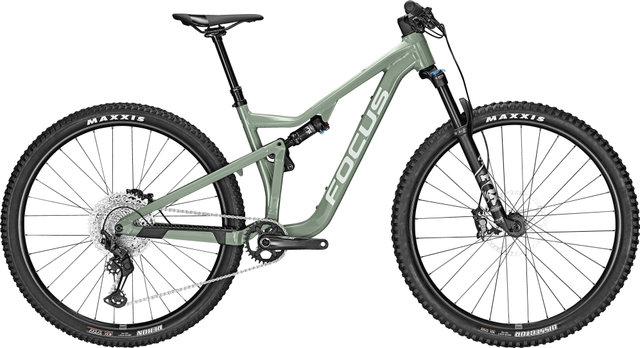

FOCUS THRON 6.9 29" Mountain Bike

The THRON 6.9 29" Mountain Bike by FOCUS - Perfect for your home trails

The THRON 6.9 all-mountain and touring bike in 29" with 130 mm travel was equipped by FOCUS with a 34 Rhythm suspension fork and a Float DPS shock from Fox, reliable Shimano XT 1x12-speed shifters and powerful XT disc brakes. The hydroformed aluminium frame allows for completely internal cable routing and comes with an integrated tool pocket in the front triangle. Thanks to the sensitive, yet extremely progressive and stable F.O.L.D. linkage design with modified positioning, the THRON is perfectly suited for hometown trails and also rides comfortably enough for the occasional longer lap.

Specifications:

Application:

All Mountain, Cross Country

Wheel Size:

29"

Front Travel:

130 mm

Rear Travel:

130 mm

Sizes:

S, M, L, XL

Front Triangle Material:

aluminium (7005)

Rear Triangle Material:

aluminium (7005)

Components:

Frame:

FOCUS THRON, hydroformed aluminium, F.O.L.D. linkage design, PM 180 mm, ISCG 05, 12 x 148 mm

Fork:

Fox Racing Shox 34 Float Rhythm 29" , GRIP Remote, 44 mm headset, 15 x 110 mm

Stem:

FOCUS C.I.S. integrated, aluminium, 50 mm 0°, 35 mm clamp

Handlebars:

FOCUS, aluminium, 760 mm, 11 mm rise, 35 mm clamp

Grips:

BBB Cobra BHG-96

Rear Shock:

Fox Racing Shox Float DPS Performance, 190 x 45 mm, hardware: 25.0 x 8 mm, Custom Tune

Remote System:

none

Headset:

Acros ZS56/ZS56, FOCUS C.I.S. integrated

Seatpost:

Kind Shock RAGE I, 31.6 mm

Saddle:

FOCUS Trail SL

Crank:

Shimano Deore XT FC-M8100, Hollowtech II, 32 T, BSA bottom bracket

Pedals:

none

Brakes:

Shimano XT M8120 4 pistons (front) / M8100 2 pistons (rear), 180 mm/180 mm

Shift Lever:

Shimano Deore XT M8100, 12-speed

Rear Derailleur:

Shimano Deore XT M8100, 12-speed

Cassette:

Shimano Deore M6100, 12-speed, 10-51 T

Chain:

Shimano Deore CN-M6100, 12-speed

Rims:

RODI TRYP25, eyeleted

Spokes:

RODI

Front Hub:

Novatec D041, 15 x 110 mm

Rear Hub:

Novatec D462, 12 x 148 mm

Front Tyre:

Maxxis Dissector 2.4

Rear Tyre:

Maxxis Rekon 2.4

Approved For:

Weight Limit:

110 kg

Chainrings:

1x

Features:

• hydroformed aluminium frame with fully integrated C.I.S. cable routing
• cleverly attached accessory bag, offers space for e.g. multi-tool, inner tube and small pump (contents not included)
• high-quality 130 mm chassis with F.O.L.D. linkage design
• Fox Float 34 Rhythm suspension fork and Fox Float DPS damper
• reliable, precise Shimano XT components and optimal XT 4-/2-piston brake mix
• ASTM category 3: for rough trails, small obstacles and smooth technical terrain without jumps

Technology:

C.I.S.
The fully integrated C.I.S. cable routing ensures a tidy cockpit. All cables run through the special stem and headset directly into the frame. Perfect braking and shifting is guaranteed at all times.

Geometry:

(based on a fork axle to crown length of 541 mm)
S:

Frame Size:

39 cm

Recommended Height:

160 - 170 cm

Stack:

605 mm

Reach:

410 mm

Seat Tube Length:

390 mm

Effective Top Tube Length:

572 mm

Head Tube Length:

100 mm

Chainstay Length:

435 mm

Wheelbase:

1139 mm

BB Drop:

35 mm

Seat Tube Angle:

75°

Head Tube Angle:

66.5°

Stem Length:

50 mm

Handlebar Width:

760 mm

Crank Arm Length:

170.0 mm

M:

Frame Size:

42 cm

Recommended Height:

171 - 180 cm

Stack:

615 mm

Reach:

440 mm

Seat Tube Length:

420 mm

Effective Top Tube Length:

605 mm

Head Tube Length:

110 mm

Chainstay Length:

435 mm

Wheelbase:

1173 mm

BB Drop:

35 mm

Seat Tube Angle:

75°

Head Tube Angle:

66.5°

Stem Length:

50 mm

Handlebar Width:

760 mm

Crank Arm Length:

170.0 mm

L:

Frame Size:

45 cm

Recommended Height:

181 - 190 cm

Stack:

633 mm

Reach:

470 mm

Seat Tube Length:

450 mm

Effective Top Tube Length:

640 mm

Head Tube Length:

130 mm

Chainstay Length:

435 mm

Wheelbase:

1211 mm

BB Drop:

35 mm

Seat Tube Angle:

75°

Head Tube Angle:

66.5°

Stem Length:

50 mm

Handlebar Width:

760 mm

Crank Arm Length:

170.0 mm

XL:

Frame Size:

48 cm

Recommended Height:

191 - 199 cm

Stack:

660 mm

Reach:

500 mm

Seat Tube Length:

480 mm

Effective Top Tube Length:

674 mm

Head Tube Length:

160 mm

Chainstay Length:

435 mm

Wheelbase:

1253 mm

BB Drop:

35 mm

Seat Tube Angle:

75°

Head Tube Angle:

66.5°

Stem Length:

50 mm

Handlebar Width:

760 mm

Crank Arm Length:

170.0 mm

Manufacturer Numbers:

mineral green / S:

641013050

mineral green / M:

641013051

mineral green / L:

641013052

mineral green / XL:

641013053

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x FOCUS THRON 6.9 Mountain Bike
• 1 x frame bag
