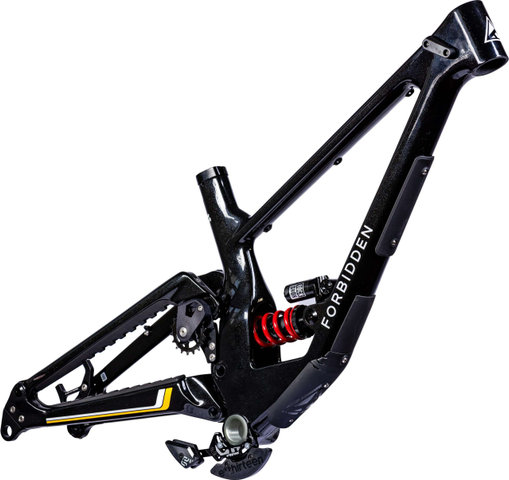

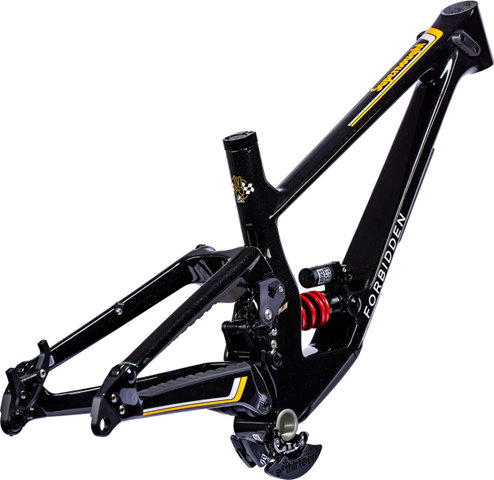

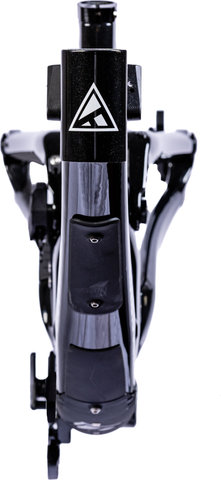

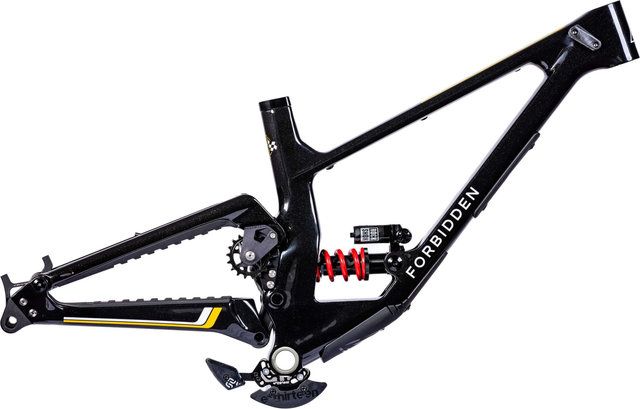

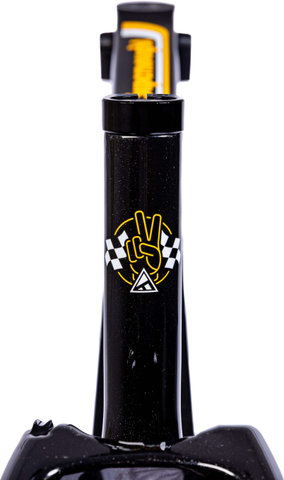

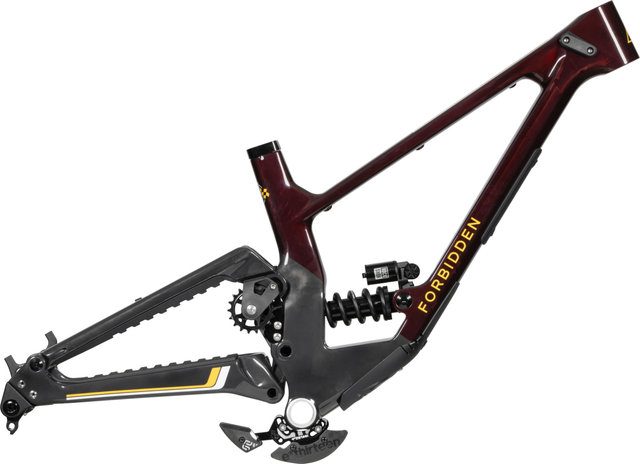

FORBIDDEN Supernought V1 Carbon Frame Kit

Specifications:

Application:

Downhill

Wheel Size:

29" / 29" (Front), 27.5" (Rear)

Travel:

205 mm

Size:

S1, S2, S3, S4

Front Triangle Material:

carbon

Rear Triangle Material:

carbon

Linkage Design:

Trifecta High Pivot

Rear Shock:

RockShox Super Deluxe Coil Ultimate DH

Technical Information:

Wheel Standard:

12 x 148 mm (Boost)

Axle Type:

12 mm thru-axle

Seatpost (Ø):

31.6 mm

Seatpost Clamp(Ø):

34.9 mm

Headset:

ZS49/28.6 - EC49/30 (top to bottom)

Steerer tube rec.:

1 1/8"

Recommended Fork Axle to Crown:

601 mm

Recommended Fork Travel:

200 mm

Bottom Bracket Standard:

BSA

Shell Width:

83 mm

Chainline:

56.5 mm

Chainstay Guide:

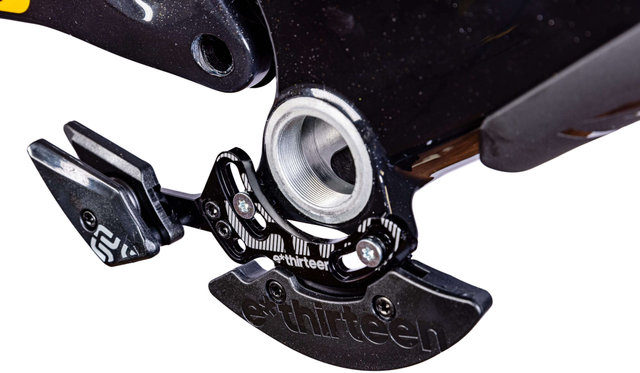

ISCG 05, Lower Tabs only

Brake Mount:

Disc PM8 (direct mount 200 mm)

Front Derailleur Mount:

not possible

Rear Shock Eye-to-Eye Measurement:

225 mm

Rear Shock Stroke:

75 mm

Rear Shock Bushing Width:

30 x 8 mm

Rear Shock Mounts:

Trunnion Mount

Bottle Cage Mounts:

0

Approved For

Rotor Size (max.):

200 mm

Tyre Size (max.):

29 x 2.5"

Chainrings:

1x

Chainring Size (max.):

34 Tooth (S1, S2), 36 Tooth (S3), 38 Tooth (S4)

Fork Axle to Crown Size (max.):

611 mm

Features:

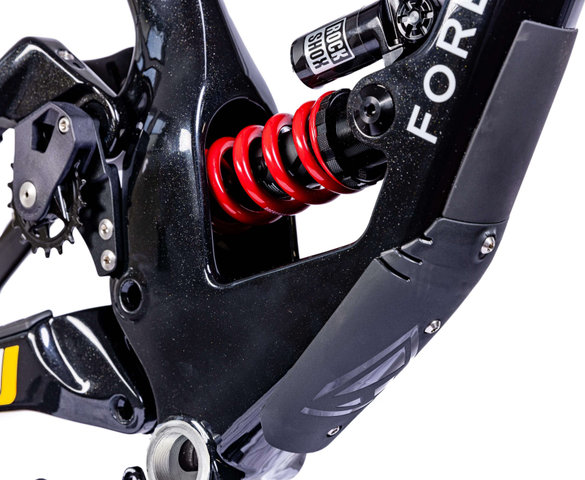

• frame kit for an agile High-Pivot downhill MTB with RockShox Super Deluxe Coil Ultimate DH shock
• compatible with 29" rear wheel or as a Mullet setup with 27.5" rear wheel
• balanced, size-specific geometry for optimized weight distribution and maximum control
• with RockShox coil shock
• durable design
• advanced V2 Trifecta Suspension
• forged, easy-to-maintain bell crank with oversized bearings for durability
• external brake cable routing for quick maintenance

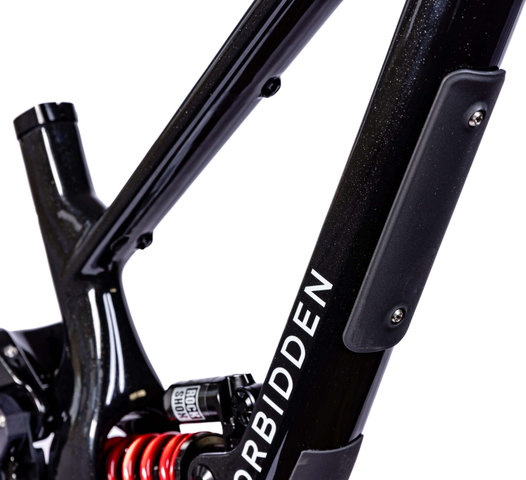

• down tube protector and rattle guard on chainstay and seatstay

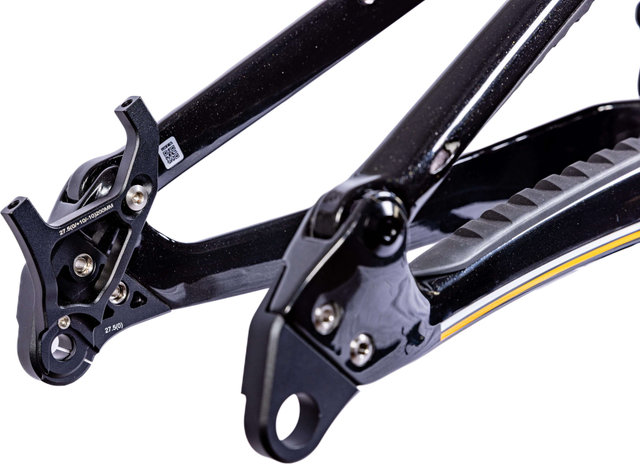

• interchangeable modular dropouts to adapt to riding style and terrain
• with SRAM UDH universal derailleur hanger, thus broad drivetrain compatibility

Technology:

Trifecta Suspension

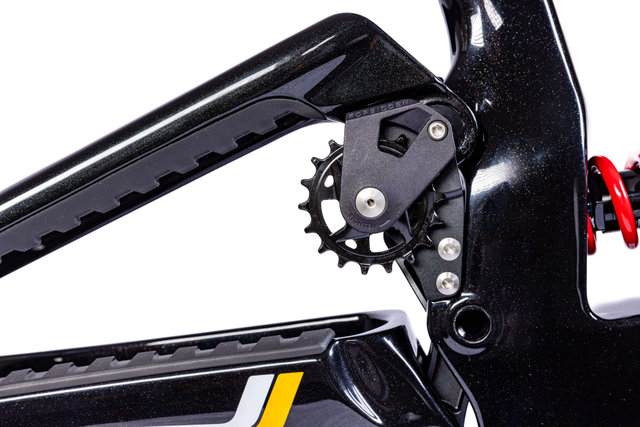

The background to the eye-catching Trifecta Suspension design is the use of a high pivot, i.e. a main pivot point that is not located near the bottom bracket but higher up on the seat tube. This has the advantage that the rear wheel does not move forwards when you compress the suspension, but backwards and thus does not brake your movement, but goes along with it. This also makes the rear triangle a little longer, which increases stability under heavy compression. It allows you to ride faster and more controlled on rough terrain. The finely tuned anti-rise forms a counterpart to the sagging of the fork under heavy braking and ensures consistent chassis stability. The idler pulley with chain guide counteracts pedal kickback and is optimally positioned for efficient pedalling with ideal anti-squat. As far as the transmission ratio is concerned, the Rate Control Linkage bell crank enables separate tuning of the different spring travel ranges by means of relatively small links, i.e. without relying exclusively on strong progression. This way you get adequate support in the middle travel and still don't have to fear hard hits.

One-Ride Geometry
With the aim of offering the same riding experience to everyone regardless of body size or figure, FORBIDDEN have developed the One-Ride geometry. This system is characterised by the fact that the weight distribution is adapted to each frame size, which manifests itself in different chainstay lengths for each size, for example. The real seat angles become steeper with frame sizes, which improves the riding position on larger frames, when compared to comparable frames. The head tube length also increases more than usual with each size in order to better cover more unusual body sizes.

Geometry:

(based on a fork installation length of 601 mm)
S1:

Recommended Height:

160 - 170 cm (29" ), 158 - 168 cm (MX)

Stack:

627 mm (29" ), 631 mm (MX)

Reach:

425 mm (29" ), 420 mm (MX)

Seat Tube Length:

400 mm

Effective Top Tube Length:

579 mm (29" ), 580 mm (MX)

Head Tube Length:

90 mm

Chainstay Length:

431 mm

Wheelbase:

1212 mm

Bottom Bracket Height:

356 mm (29" ), 350 mm (MX)

BB Drop:

17 mm (29" ), 10.6 mm (MX)

Seat Tube Angle (effective):

76.3° (29" ), 75.8° (MX)

Seat Angle (real):

69.3° (29" ), 68.9° (MX)

Head Tube Angle:

63.5° (29" ), 63.1° (MX)

Standover Height:

750 mm

S2:

Recommended Height:

170 - 180 cm (29" ), 168 - 178 cm (MX)

Stack:

636 mm (29" ), 640 mm (MX)

Reach:

447 mm (29" ), 443 mm (MX)

Seat Tube Length:

420 mm

Effective Top Tube Length:

603 mm (29" ), 604 mm (MX)

Head Tube Length:

100 mm

Chainstay Length:

446 mm

Wheelbase:

1253 mm

Bottom Bracket Height:

356 mm (29" ), 350 mm (MX)

BB Drop:

17 mm (29" ), 10.6 mm (MX)

Seat Tube Angle (effective):

76.3° (29" ), 76.3° (MX)

Seat Angle (real):

71.5° (29" ), 71.0° (MX)

Head Tube Angle:

63.5° (29" ), 63.1° (MX)

Standover Height:

760 mm

S3:

Recommended Height:

180 - 190 cm (29" ), 178 - 188 cm (MX)

Stack:

645 mm (29" ), 649 mm (MX)

Reach:

470 mm (29" ), 466 mm (MX)

Seat Tube Length:

440 mm

Effective Top Tube Length:

628 mm (29" ), 629 mm (MX)

Head Tube Length:

110 mm

Chainstay Length:

460 mm

Wheelbase:

1295 mm

Bottom Bracket Height:

356 mm (29" ), 350 mm (MX)

BB Drop:

17 mm (29" ), 10.6 mm (MX)

Seat Tube Angle (effective):

76.3° (29" ), 75.8° (MX)

Seat Angle (real):

73.2° (29" ), 72.8° (MX)

Head Tube Angle:

63.5° (29" ), 63.1° (MX)

Standover Height:

769 mm

S4:

Recommended Height:

190 - 200 cm (29" ), 188 - 198 cm (MX)

Stack:

654 mm (29" ), 658 mm (MX)

Reach:

492 mm (29" ), 488 mm (MX)

Seat Tube Length:

470 mm

Effective Top Tube Length:

653 mm (29" ), 654 mm (MX)

Head Tube Length:

120 mm

Chainstay Length:

475 mm

Wheelbase:

1336 mm

Bottom Bracket Height:

356 mm (29" ), 350 mm (MX)

BB Drop:

17 mm (29" ), 10.6 mm (MX)

Seat Tube Angle (effective):

76.3° (29" ), 75.8° (MX)

Seat Angle (real):

74.7° (29" ), 74.3° (MX)

Head Tube Angle:

63.5° (29" ), 63.1° (MX)

Standover Height:

777 mm

Contents:

• 1 x FORBIDDEN Supernought V1 Carbon frame
• 1 x RockShox Super Deluxe Coil Ultimate DH rear shock
• 1 x Burgtec thru-axle
