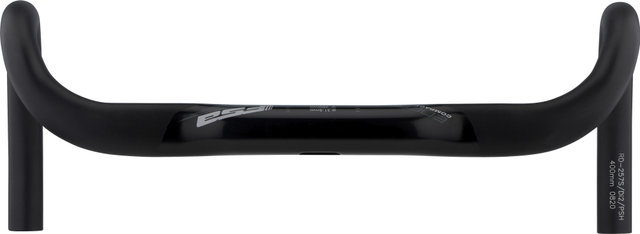

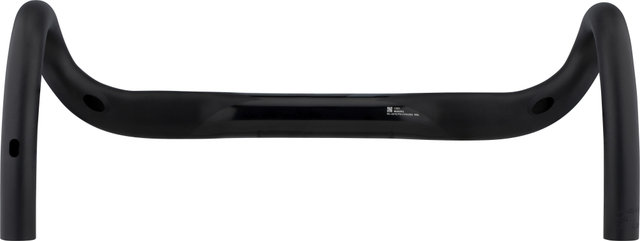

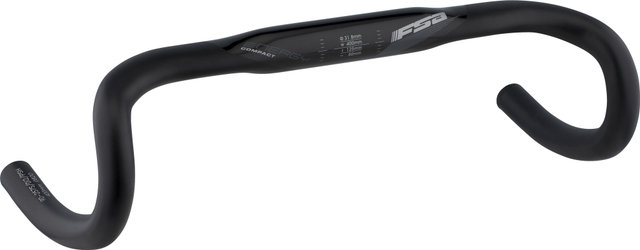

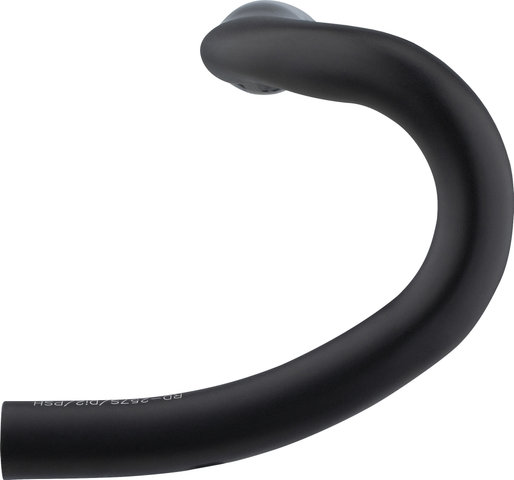

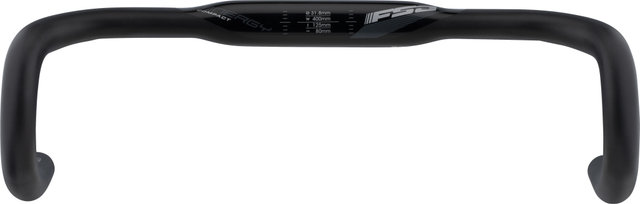

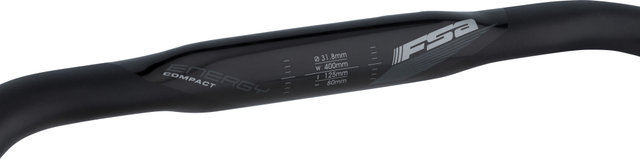

FSA Energy Compact ACR SCR 31.8 Handlebars

FSA Energy Compact ACR SCR handlebars - internal cable routing, variable wall thickness

The Energy Compact road handlebars by FSA are designed for fully or semi integrated cable routing (ACR or SCR) and feature a low drop and short reach for a more relaxed riding position. They are made of high-strength 7050 aluminium with variable wall thickness. The flattened upper bar is equipped with a spacious clamping area to mount accessories. The handlebars have a sandblasted finish in key areas to give your hands more grip.

Specifications:

Application:

Road

Width:

400 mm, 420 mm, 440 mm

Stem Clamp:

31.8 mm

Technical Information:

Drop:

125 mm

Reach:

80 mm

Flare:

4°

Cable Routing:

internal

Material:

aluminium (7050)

Features:

• compatible with aerodynamic, integrated cable routing (ACR)
• compatible with semi-internal cable routing (SCR)
• butted, end reinforced 7050 aluminium
• ergonomically flat upper bar (34 mm)
• 120 mm wird, round clamping area for easy attachment of accessories

Technology:

ACR System
ACR stands for Aerodynamic Cable Routing and refers to a cable routing system from FSA and Vision that allows the complete integration of cables into the cockpit. This includes special handlebars, a specially-developed headset and a compatible stem or, if applicable, a handlebar-stem unit. Cables and hydraulic lines are routed internally from the cockpit into the frame and fork, while the handlebars remain fully rotatable. This not only gives it a clean look, but also significantly increases aerodynamics.

SCR System
SCR stands for Semi-integrated Cable Routing and refers to a cable routing system from FSA that enables the partial internal routing of cables in the road bike or MTB cockpit. It is suitable for all types of frames and contributes to a tidy appearance. Electric cables are routed through SCR handlebars and exit through a small opening on the underside of the SCR stem. Brake cables or hydraulic hoses are only routed through the handlebars.

Manufacturer Numbers:

40 cm:

185-0018012090

42 cm:

185-0018013090

44 cm:

185-0018014090

Contents:

• 1 x FSA Energy Compact ACR SCR road handlebars
