FSA No.42/48CF/ACB IS42/28.6 - IS52/40 Headset

Integrated headset for 1 1/8" -1.5 tapered steerer tube. With carbon lid.

Use:

Designed for 1 1/8" upper and 1.5" lower head tubes combined with tapered forks.

Specifications:

Application:

Road, Cross Country, City

Top Bearing:

1 1/8"

Bottom Bearing:

1.5"

Steerer Tube:

1 1/8" - 1.5" tapered

Design:

integrated (IS)

Technical Information:

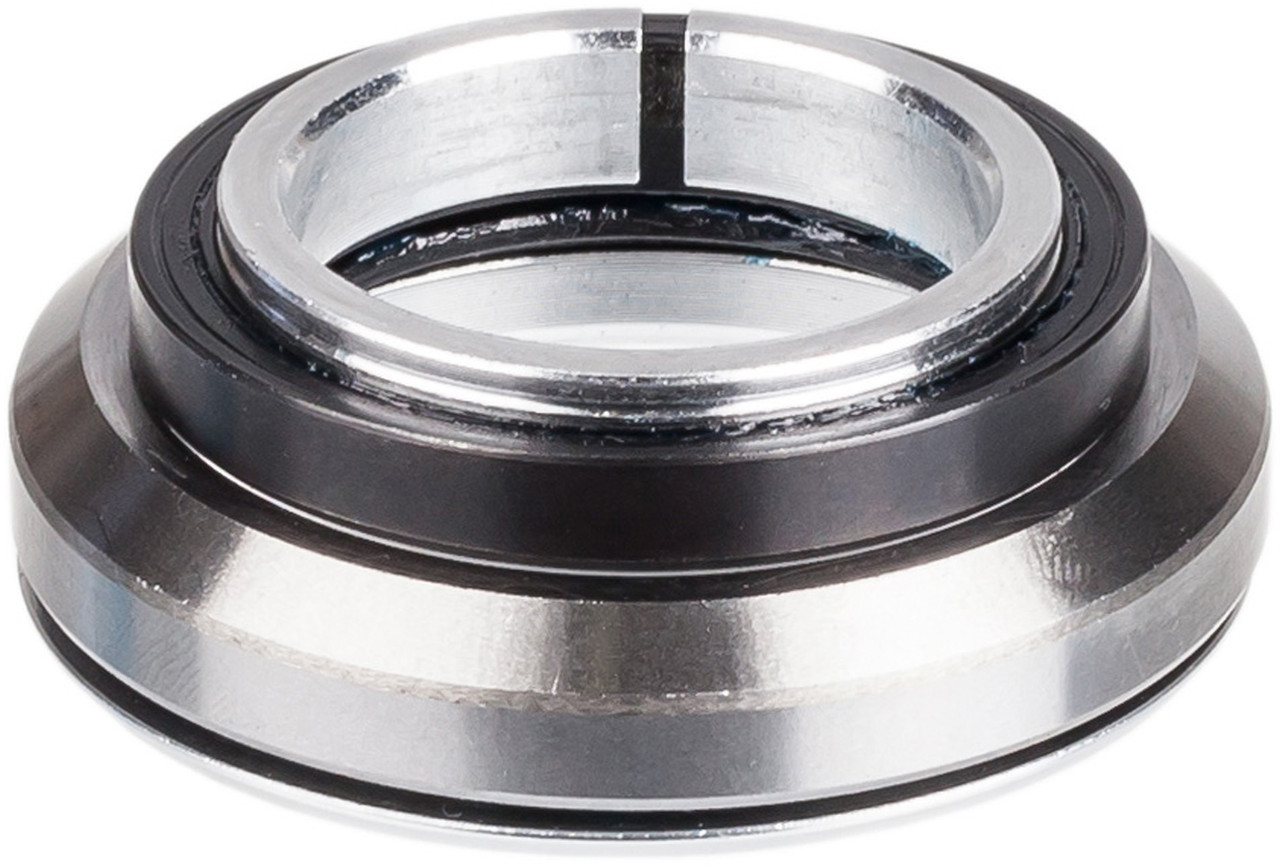

Bearings:

Angular contact ball bearings (45°/ 45° ACB, top), angular contact ball bearings (36°/ 45° ACB, bottom)

Top Stack Height:

15.5 mm

Bottom Stack Height:

0.9 mm

Top Outer Diameter:

42 mm

Top Inner Diameter:

28.6 mm

Bottom Outer Diameter:

52 mm

Bottom Inner Diameter:

40 mm

Seals:

Black Seal

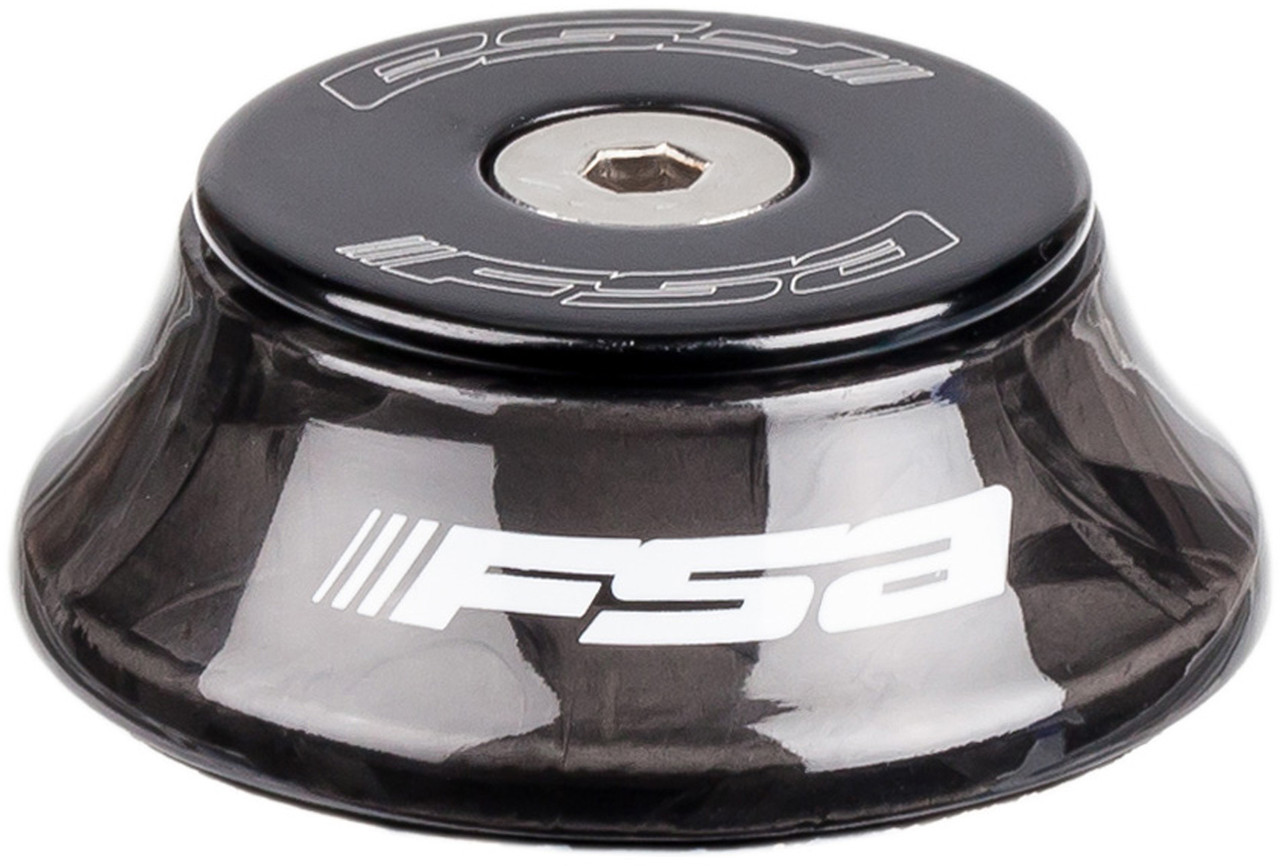

Top Cap:

Carbon, 15 mm

Features:

• for head tube inner diameter top 42 mm, bottom 52 mm = head tube outer diameter top 48 mm, bottom 56 mm
• total stack height: 16.4 mm

Standardized Headset Identification System (S.H.I.S.):

In order to clarify and bring uniformity to a sea of headset standards, manufacturers Acros, Cane Creek, Hope, Race Face, Reset Racing and Ritchey have agreed upon using a shared nomenclature, which will likely include more participating companies in the future. This system takes into account a combination of frame and fork dimensions. Both the top and bottom parts of the headset are marked by two alphanumeric identifiers. The first identifier indicates the type of headset (External Cup, Zero Stack, Integrated) and head tube diameter. The second identifier - separated from the first by a backslash - indicates the diameter of the steerer tube. When referring to a complete headset, the specifications of both top and bottom parts must be combined.

Nomenclature:

EC:

Bearings contained within headset cups that are located outside of the frame (External Cup)

ZS:

Bearings contained within pressed-in headset cups where the cup and bearings rest inside the frame (Zero Stack)

IS:

Bearings that fit directly into a bonded or machined interface that is integrated into the frame (Integrated)

Manufacturer Number:

121-0479A

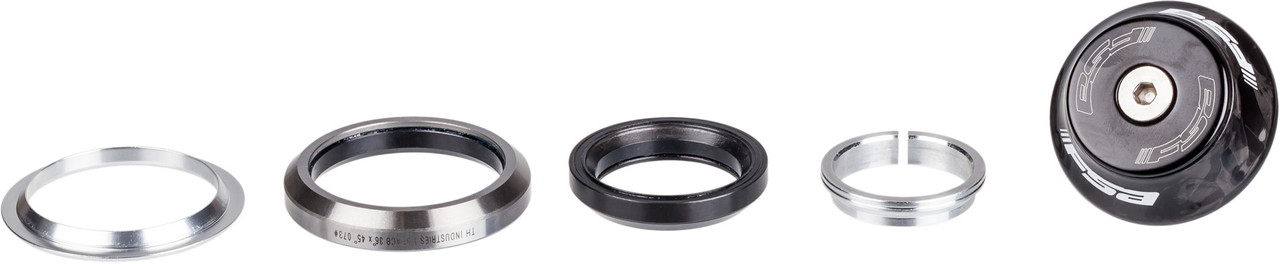

Contents:

• 1 x FSA No.42 top bearing
• 1 x FSA No.42 bottom bearing
• 1 x FSA carbon headset cap
• 1 x compression ring
• 1 x FSA Ahead cap
• 1 x star nut with aluminium bolt
• 1 x crown race
