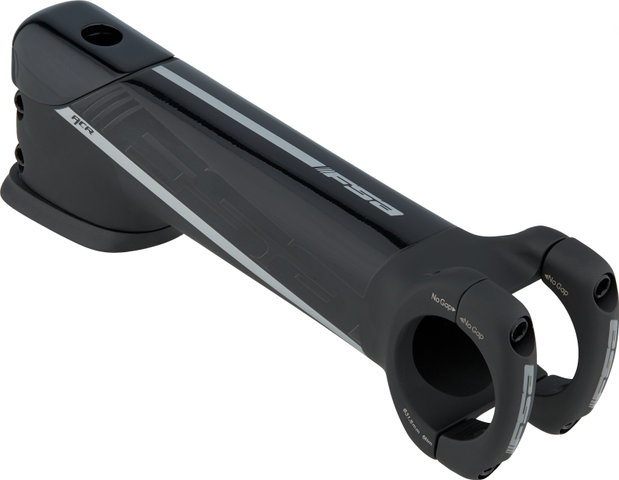

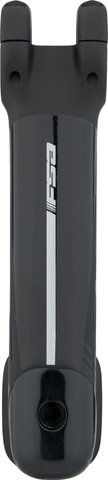

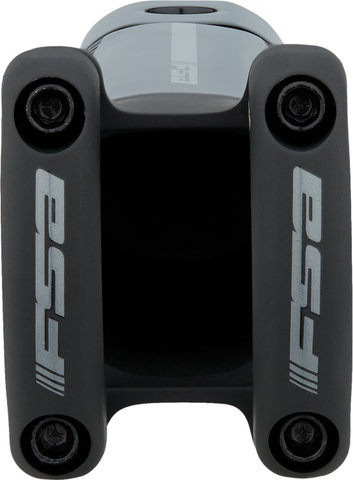

FSA Non-Series ACR 31.8 Stem
The FSA Non-Series ACR Stem - Internal cable routing for more aerodynamics
The Non-Series NS ACR Road stem from FSA allows for aerodynamic, completely internal cable routing, requiring a special headset and compatible handlebars. The stem is made of aluminium and is mounted pointing downwards at a 6° angle. At only 30 mm, it has an extremely low overall height at the steerer tube.
Specifications:
- Application:
- Road, Gravel
- Design:
- Ahead
- Steerer Clamp:
- 1 1/8"
- Stack Height (steerer tube):
- 30 mm
- Handlebar Clamp:
- 31.8 mm
- Lengths:
- 70 mm, 80 mm, 90 mm, 100 mm, 110 mm, 120 mm, 130 mm, 140 mm
- Angle:
- -6°
Technical Information:
- Material:
- aluminium (6061-T6)
- Bolt Material:
- steel (CrMo)
Compatibility:
Headset:- NO.55R 1.5" /ACR
- ACR Headset Expander
Handlebars:
- K-Force Light ACR Compact Handlebars
- SL-K ACR Compact Handlebars
- Energy ACR Compact Handlebars
- K-Wing AGX Handlebars
Frame:
- designed for internal cable routing
- 1.5" head tube
Features:
- compatible with aerodynamic, integrated cable routing (ACR)
- low-profile front section
- handlebars retain perfect rotation ability
- Non-Series (NS) = without series logo
- bead-blasted
- anodised finish
Technology:
ACR SystemACR stands for Aerodynamic Cable Routing and refers to a cable routing system from FSA and Vision that allows the complete integration of cables into the cockpit. This includes special handlebars, a specially-developed headset and a compatible stem or, if applicable, a handlebar-stem unit. Cables and hydraulic lines are routed internally from the cockpit into the frame and fork, while the handlebars remain fully rotatable. This not only gives it a clean look, but also significantly increases aerodynamics.
Manufacturer Numbers:
- 70 mm -6°:
- 175-0034015030
- 80 mm -6°:
- 175-0034016030
- 90 mm -6°:
- 175-0034017030
- 100 mm -6°:
- 175-0034018030
- 110 mm -6°:
- 175-0034019030
- 120 mm -6°:
- 175-0034020030
- 130 mm -6°:
- 175-0034021030
- 140 mm -6°:
- 175-0034022030
Contents:
- 1 x FSA Non-Series (NS) ACR stem
- 1 x FSA Ahead cap
- 1 x FSA ACR basic spacer (installed)
- 1 x FSA ACR 5 mm spacer, 2-piece
- 2 x FSA ACR 10 mm spacers, 2-piece
Order Together:
Optional accessories:- ACR Cone Spacer for certain frame models
Weight:
- black/100 mm -6°: 235 g
