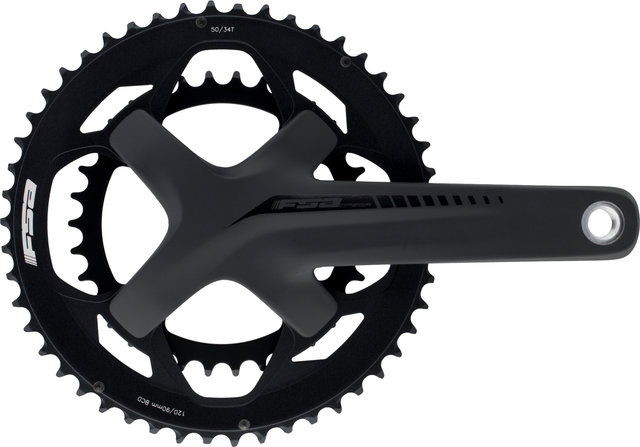

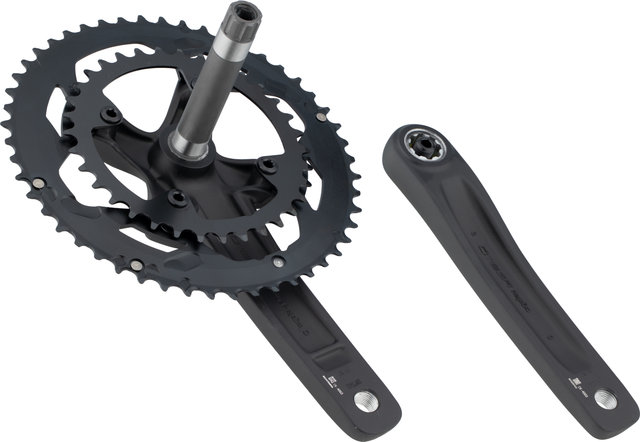

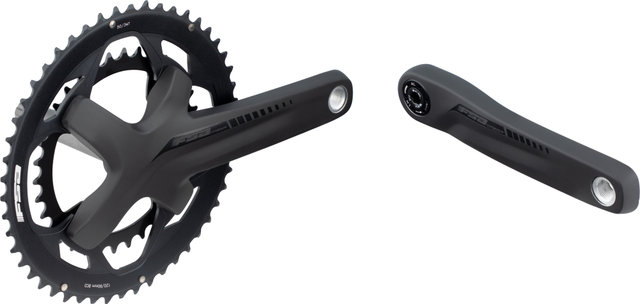

FSA Omega Compact MegaExo Crankset

The FSA Omega Compact MegaExo crankset for road use is compatible with 11-speed drivetrains, has a 19 mm axle for MegaExo bottom brackets and impresses with robust functionality at an attractive price.

Specifications:

Application:

Road

Compatibility:

Shimano/SRAM 2x10-speed, Shimano/SRAM 2x11-speed

Chainring Mount:

120/90 mm bolt circle diameter, 4-arm

Technical Information:

Series:

Omega

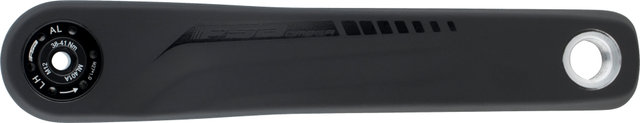

Crank Arm Material:

aluminium

Chainring Material:

Steel (34 t), Aluminium (50 t)

Gradation:

34-50

Crank Arm Length:

170.0 mm, 172.5 mm, 175.0 mm

Chainline:

43.5 mm

Axle Diameter:

19 mm

Recommended Bottom Bracket:

FSA BB-4000 MegaExo (must be ordered separately)

Features:

• die-cast aluminium crank arms
• glass bead-blasted and black lacquered
• printed graphics

Manufacturer Numbers:

170.0 mm 34-50:

330-0329553260

172.5 mm 34-50:

330-0329554260

175.0 mm 34-50:

330-0329555260

Contents:

• 1 x FSA Omega Compact MegaExo Crankset (34-50 tooth)

F.S.A. S.R.L.
Via Francesco Petrarca. 4
20123 Milan
Italy
info@fullspeedahead.com
