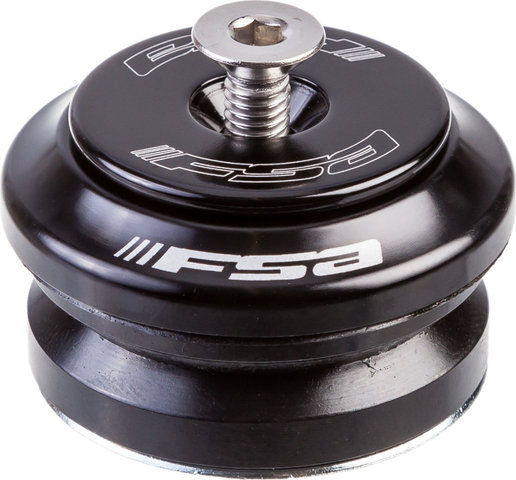

FSA Orbit CE IS42/28.6 - IS42/30 Headset

FSA Orbit CE is an integrated headset for 1 1/8" steerer tube and has an aluminium cover.

Use:

For 1 1/8" upper and lower head tubes combined with standard 1 1/8" forks.

Specifications:

Application:

Road

Top Bearing:

1 1/8"

Bottom Bearing:

1 1/8"

Steerer Tube:

1 1/8"

Design:

integrated (IS)

Technical Information:

Bearings:

Angular contact ball bearings (45°/ 45° ACB)

Top Stack Height:

8.3 (8 mm top cap), 15.5 mm (15 mm top cap)

Bottom Stack Height:

0.5 mm

Top Outer Diameter:

42 mm

Top Inner Diameter:

28.6 mm

Bottom Outer Diameter:

42 mm

Bottom Inner Diameter:

30 mm

Seals:

Black Seal

Top Cap:

Aluminium, 8 mm or 15 mm (black)

Features:

• for head tube inner diameter 42 mm = head tube outer diameter 46 mm
• total stack height 8.8 mm (8 mm cover) or 16 mm (15 mm cover)

Standardized Headset Identification System (S.H.I.S.):

In order to clarify and bring uniformity to a sea of headset standards, manufacturers Acros, Cane Creek, Hope, Race Face, Reset Racing and Ritchey have agreed upon using a shared nomenclature, which will likely include more participating companies in the future. This system takes into account a combination of frame and fork dimensions. Both the top and bottom parts of the headset are marked by two alphanumeric identifiers. The first identifier indicates the type of headset (External Cup, Zero Stack, Integrated) and head tube diameter. The second identifier - separated from the first by a backslash - indicates the diameter of the steerer tube. When referring to a complete headset, the specifications of both top and bottom parts must be combined.

Nomenclature:

EC:

Bearings contained within headset cups that are located outside of the frame (External Cup)

ZS:

Bearings contained within pressed-in headset cups where the cup and bearings rest inside the frame (Zero Stack)

IS:

Bearings that fit directly into a bonded or machined interface that is integrated into the frame (Integrated)

Manufacturer Numbers:

black IS42/28.6 - IS42/30 (8 mm):

121-0405

black IS42/28.6 - IS42/30 (15 mm):

121-0407

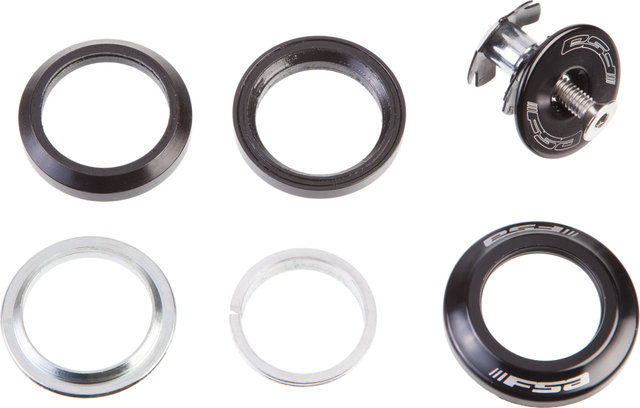

Contents:

• 1 x FSA Orbit CE top bearing
• 1 x FSA Orbit CE bottom bearing
• 1 x FSA headset cap
• 1 x compression ring
• 1 x FSA Ahead cap
• 1 x star nut with aluminium bolt
• 1 x crown race
