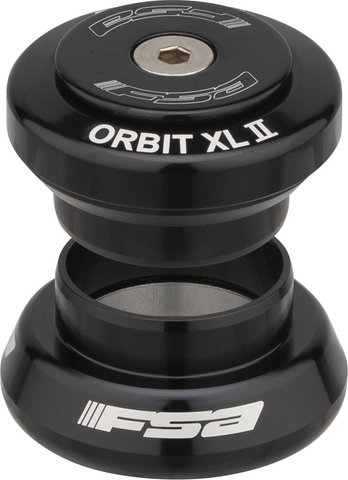

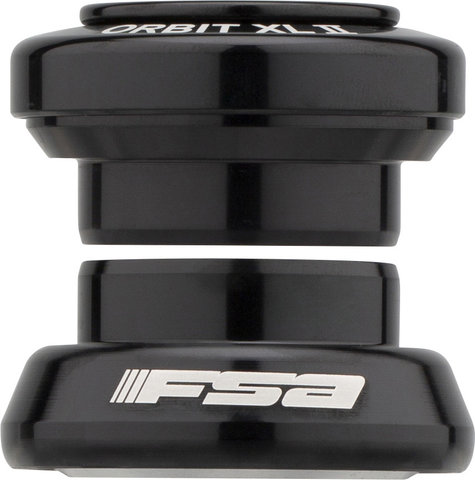

FSA Orbit XL II EC34/28.6 - EC34/30 Headset

The Orbit XL II is a classic in FSA's headset range and features forged, machined aluminium bearing cups that lowers its weight but increases its degree of accuracy.

Use:

For 1 1/8" upper and lower head tubes combined with standard 1 1/8" forks.

Specifications:

Application:

Road, All Mountain, Cross Country

Top Cup:

1 1/8"

Bottom Cup:

1 1/8"

Steerer Tube:

1 1/8"

Design:

external cup (EC)

Technical Information:

Material:

aluminium

Bearings:

Angular contact ball bearings (36°/ 36° ACB)

Upper Insert Depth:

9 mm

Lower Insert Depth:

9 mm

Top Stack Height:

13.5 mm

Bottom Stack Height:

13.9 mm

Top Outer Diameter:

34 mm

Top Inner Diameter:

28.6 mm

Bottom Outer Diameter:

34 mm

Bottom Inner Diameter:

30 mm

Seals:

Black Seal

Top Cap:

aluminium

Features:

• forged and CNC-fabricated bearing cups
• total stack height: 27.4 mm

Standardized Headset Identification System (S.H.I.S.):

In order to clarify and bring uniformity to a sea of headset standards, manufacturers Acros, Cane Creek, Hope, Race Face, Reset Racing and Ritchey have agreed upon using a shared nomenclature, which will likely include more participating companies in the future. This system takes into account a combination of frame and fork dimensions. Both the top and bottom parts of the headset are marked by two alphanumeric identifiers. The first identifier indicates the type of headset (External Cup, Zero Stack, Integrated) and head tube diameter. The second identifier - separated from the first by a backslash - indicates the diameter of the steerer tube. When referring to a complete headset, the specifications of both top and bottom parts must be combined.

Nomenclature:

EC:

Bearings contained within headset cups that are located outside of the frame (External Cup)

ZS:

Bearings contained within pressed-in headset cups where the cup and bearings rest inside the frame (Zero Stack)

IS:

Bearings that fit directly into a bonded or machined interface that is integrated into the frame (Integrated)

Manufacturer Number:

EC34/28.6 - EC34/30:

101-1005

Contents:

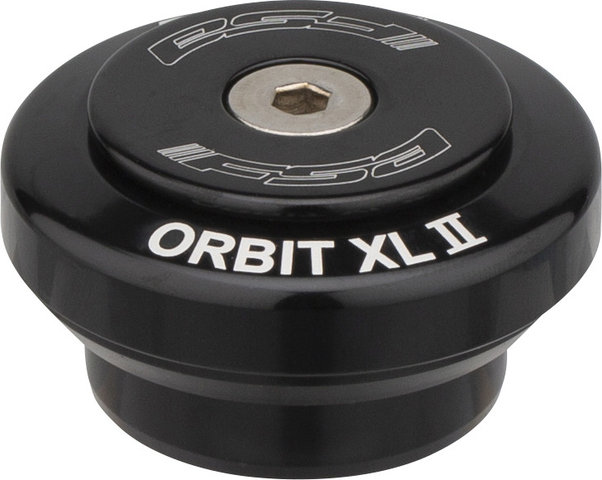

• 1 x FSA Orbit XL II top headset cup incl. bearings

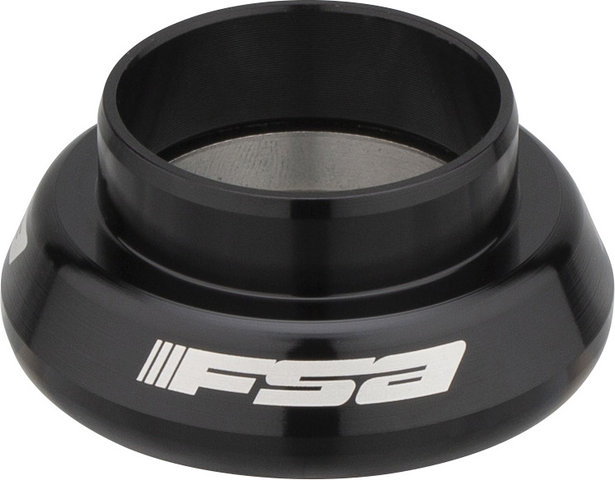

• 1 x FSA Orbit XL II bottom headset cup incl. bearings
• 1 x FSA headset cap
• 1 x compression ring
• 1 x FSA Ahead cap
• 1 x star nut with aluminium bolt
• 1 x crown race
