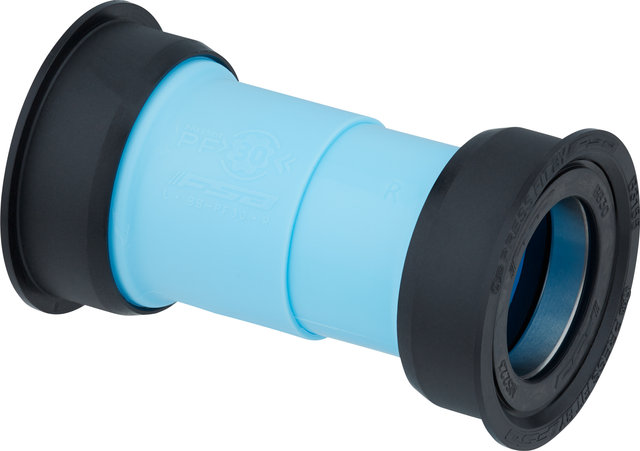

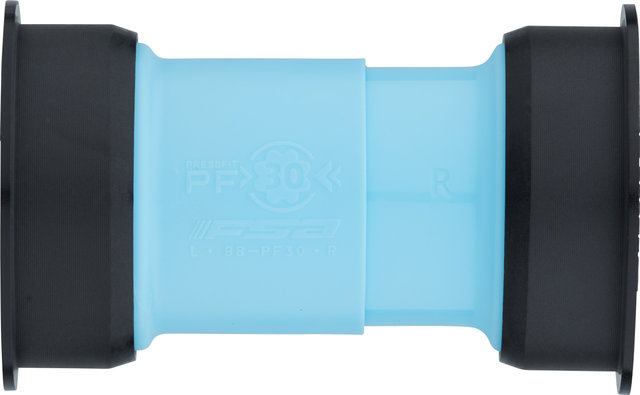

FSA PF30 Road Bottom Bracket 46 x 68-86.5 mm

A variant of the BB30 design: the Press Fit 30 Bottom Bracket by FSA

Press fit refers to one of the newer bottom bracket standards, and was first introduced to the market by SRAM as Press Fit 30. The bearings are located in bearing cups that are pressed directly into the bottom bracket shell. Characteristic is the installation dimension of 46 mm and the shell width of 68 / 73 mm or 86.5 mm. A PF30 bottom bracket always takes only one axle with 30 mm diameter - hence the name.

Specifications:

Application:

Road, Cross Country

Type:

Press Fit PF30, BB386EVO

Shell Diameter:

46 mm

Shell Width:

68-86.5 mm

Axle Diameter:

30 mm

Technical Information:

Bearings:

steel or ceramic

Compatibility:

• BB30 Road cranks
• BB386EVO cranks*

* when installed in a BB386EVO frame. If a BB386EVO crank is to be mounted in a Press Fit 30 frame, an additional MW258A adapter is required.

Note:
The 200-3112 bottom bracket also does the following:

• Installation of FSA MegaExo NBD, MegaExo Pinch Bolt, Shimano and SRAM GXP Road cranks in BB386EVO frames
• Installation of FSA MegaExo NBD, MegaExo Pinch Bolt and Shimano Road cranks in Press Fit 30 frames
• Installation of FSA BB386EVO, MegaExo NBD and MegaExo Pinch Bolt Road cranks in Cannondale press fit 30A 73 mm frames
• Installation of FSA BB386EVO Road cranks in BBRight Press Fit 79 mm frames
• Installation of FSA BB392EVO, MegaExo NBD 24 mm, MegaExo NBD 19 mm, MegaExo Pinch Bolt 24 mm and Shimano MTB cranks in 68/73 mm PF30 frames

Additional adapters and spacers are required.

The 200-3111 bottom bracket also does the following:

• Installation of FSA MegaExo NBD Road cranks in BB386EVO frames
• Installation of FSA MegaExo NBD Road cranks in Press Fit 30 frames
• Installation of FSA BB392EVO, MegaExo NBD 24 mm, MegaExo Pinch Bolt 24 mm and Shimano MTB cranks in 68/73 mm PF30 frames

Additional adapters and spacers are required.

Models:

Standard:

• Bearings: steel
• Recommended Cranks: SL-K Light, Energy, Gossamer Pro, Omega, Vision TriMax Pro
• Model Number: BB-PF6000/CZ
• Manufacturer Number: 200-3112

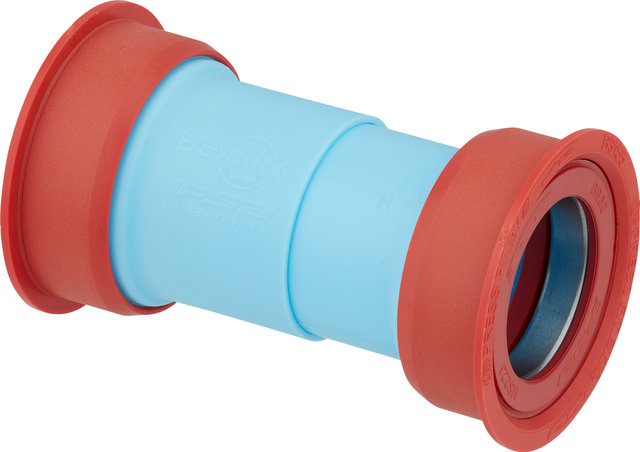

ceramic:

• Bearings: ceramic
• Recommended Cranks: K-Force Light, TriMax Carbon TT
• Model Number: BB-PF8200/CZ
• Manufacturer Number: 200-3111

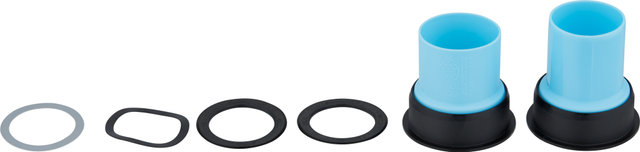

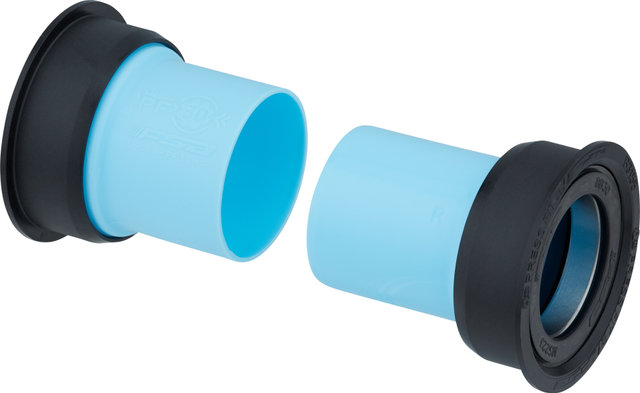

Contents:

• 1 x FSA PF 30 right bearing cup, incl. bearings and sleeve
• 1 x FSA PF 30 left bearing cup, incl. bearings and sleeve
• 1 x FSA bottom bracket centre sleeve
• 1 x spring wave washer
• incl. dust cap
