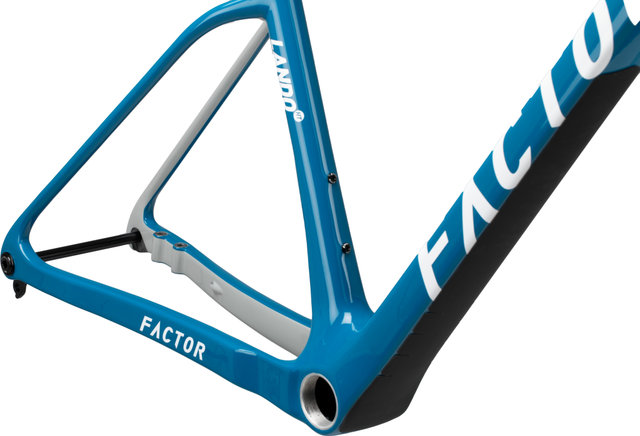

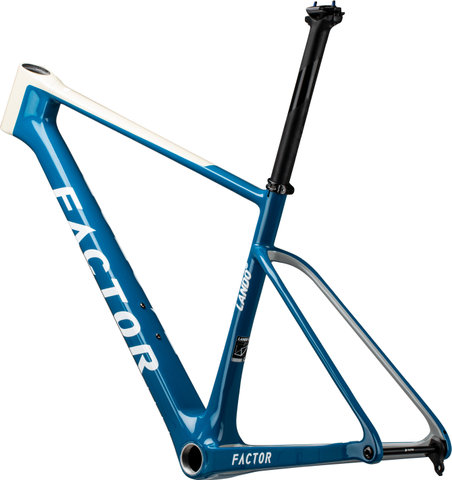

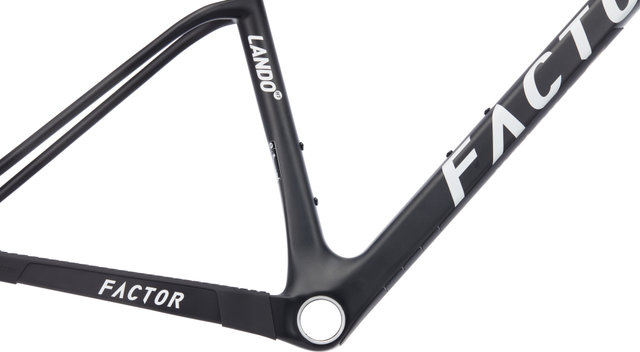

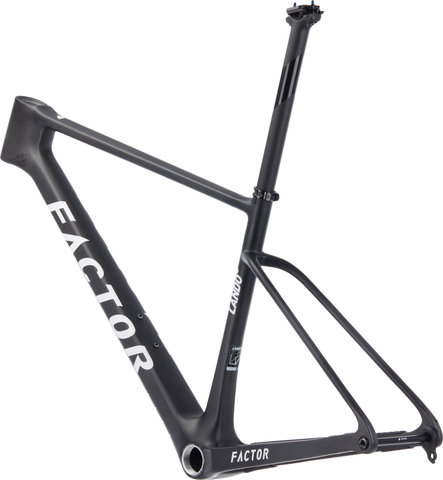

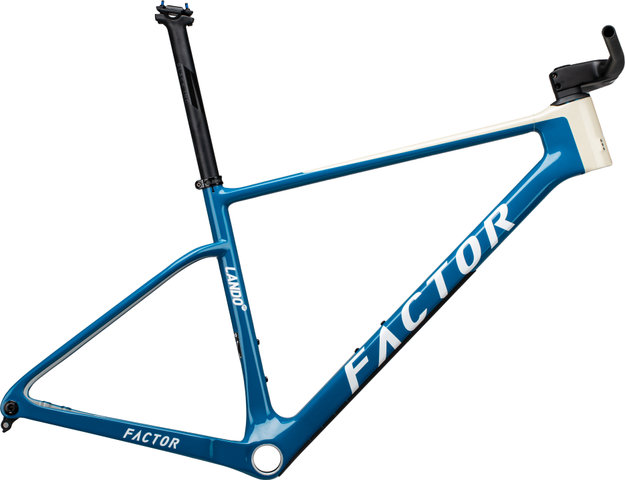

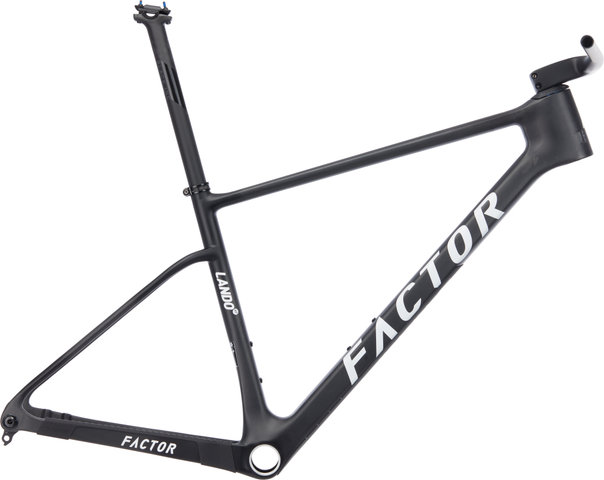

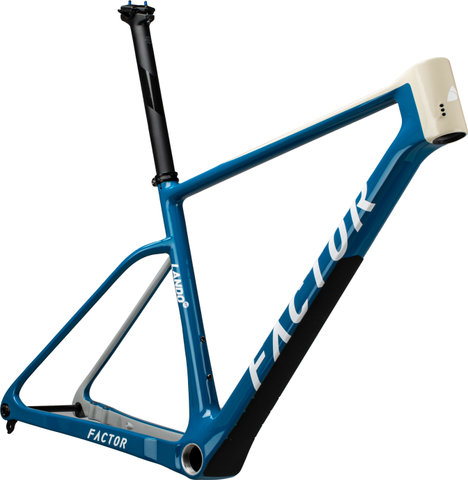

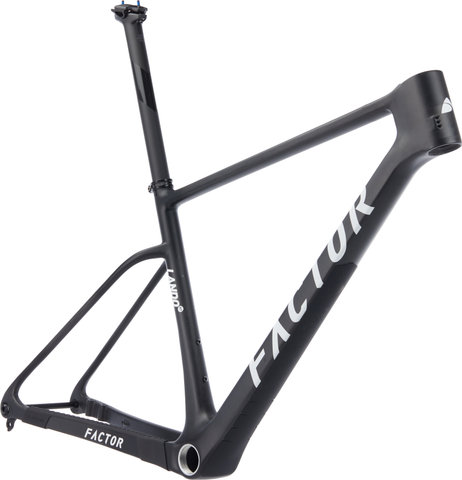

Factor Lando HT 29" Carbon Hardtail Frame

The Factor Lando HT Carbon 29" Hardtail Frame - A superlight marathon frame

The Lando HT 29-inch frame from Factor offers you ideal conditions for a high-performance cross-country marathon bike made of carbon. The CeramicSpeed bearings in the headset and bottom bracket guarantee high performance. In addition, the frame comes with an aerodynamic handlebar stem unit from Black Inc, which will make you go really fast. The holder for your bike computer can be attached under the stem. The modern geometry lets you sit in an upright position on technical trails, while going on the attack on sprints or uphill. There are no limits to your imagination when it comes to building your bike. If you choose a rigid fork instead of a suspension fork, such as the Black Inc Rigid Boost, you can transform the Lando HT into a powerful gravel bike.

Specifications:

Application:

Cross Country

Wheel Size:

29"

Size:

XS, S, M, L

Material:

Carbon

Technical Information:

Wheel Standard:

12 x 148 mm (Boost)

Axle Type:

12 mm thru-axle

Seatpost (Ø):

31.6 mm

Headset:

IS42/28.6 - IS52/40

Steerer tube rec.:

1 1/8" - 1.5" tapered

Recommended Fork Axle to Crown:

517 mm

Recommended Fork Travel:

110 mm

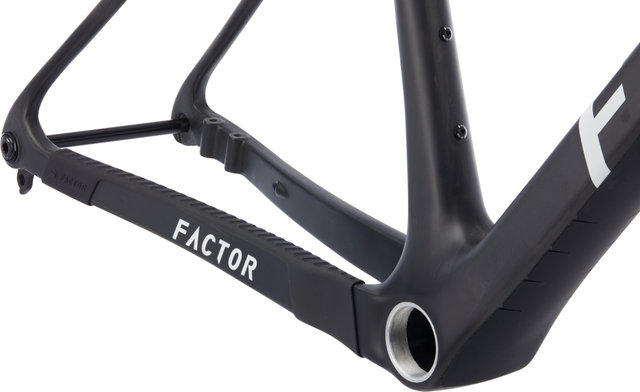

Bottom Bracket Standard:

T47

Shell Width:

88.5 mm

Chainline:

52 mm (Boost)

Brake Mount:

flat mount

Front Derailleur Mount:

not possible

Bottle Cage Mounts:

2

Approved For:

Weight Limit:

100 kg (rider weight)

Rotor Size (max.):

180 mm

Tyre Size (max.):

29 x 2.4"

Chainrings:

1x

Chainring Size (max.):

36-tooth

Features:

• carbon hardtail frame for high-performance marathon or gravel bikes

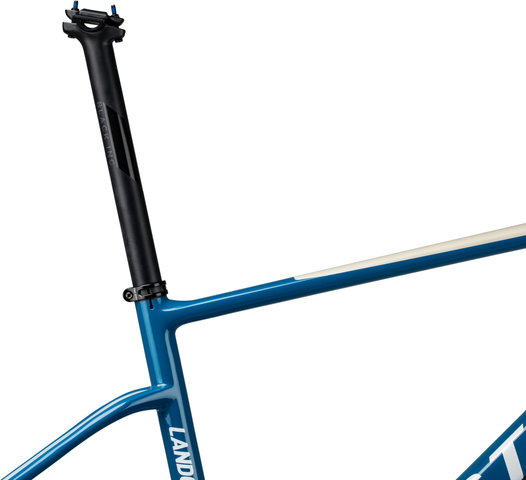

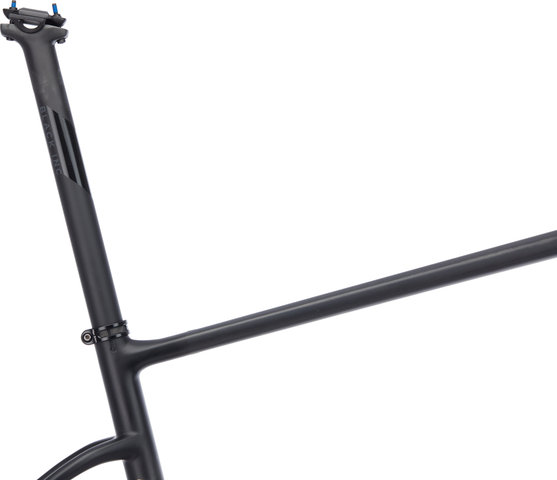

• carbon seatpost with 0 mm setback

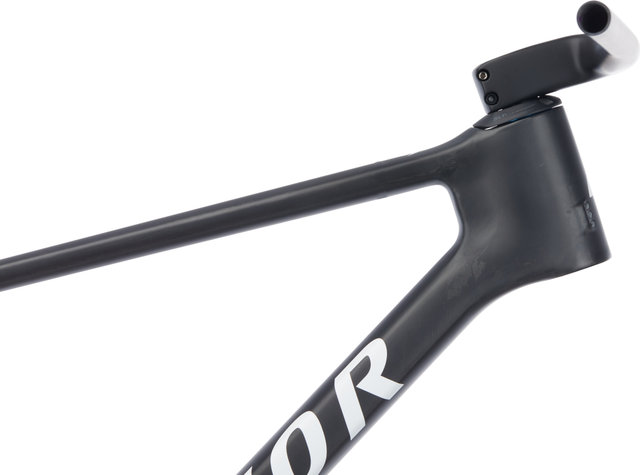

• handlebar-stem unit with 8° backsweep and -10° stem angle

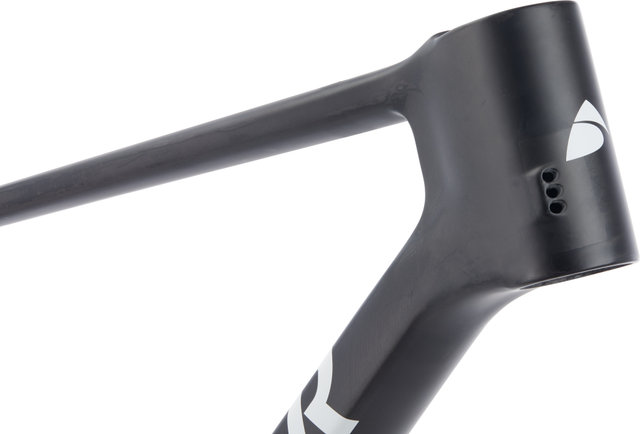

• for internal and external cable routing
• replaceable SRAM universal derailleur hanger
• two attachment points in two areas

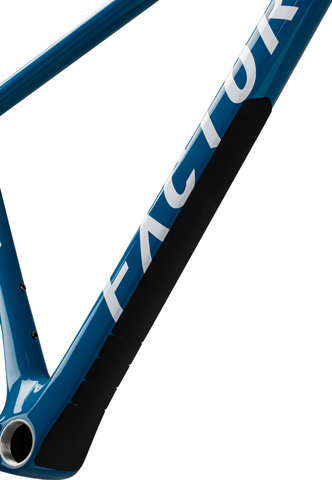

• down tube protection
• slim seat clamp
• twist protection on the down tube

Geometry:

(based on a fork axle to crown length of 517 mm)
XS:

Stack:

609 mm

Reach:

394 mm

Chainstay Length:

430 mm

Wheelbase:

1092 mm

BB Drop:

56.5 mm

Seat Tube Angle:

74.5°

Head Tube Angle:

68.5°

Stem Length:

60 mm

Handlebar Width:

760 mm

S:

Stack:

613.5 mm

Reach:

415 mm

Chainstay Length:

430 mm

Wheelbase:

1115 mm

BB Drop:

56.5 mm

Seat Tube Angle:

74°

Head Tube Angle:

68.5°

Stem Length:

70 mm

Handlebar Width:

760 mm

M:

Stack:

618.5 mm

Reach:

445 mm

Chainstay Length:

430 mm

Wheelbase:

1147 mm

BB Drop:

54.5 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

68.5°

Stem Length:

70 mm

Handlebar Width:

760 mm

L:

Stack:

633 mm

Reach:

476 mm

Chainstay Length:

430 mm

Wheelbase:

1184 mm

BB Drop:

54.5 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

68.5°

Stem Length:

80 mm

Handlebar Width:

760 mm

Contents:

• 1 x Factor Lando HT Carbon 29" Frame
• 1 x Black Inc handlebar stem unit

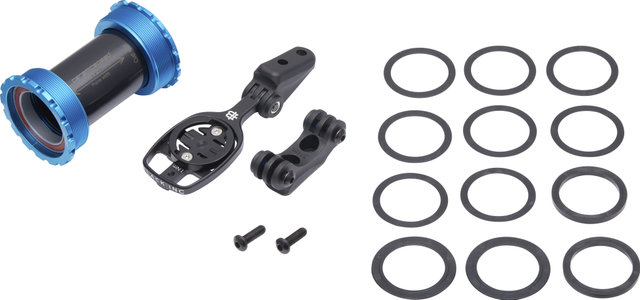

• 1 x CeramicSpeed bottom bracket

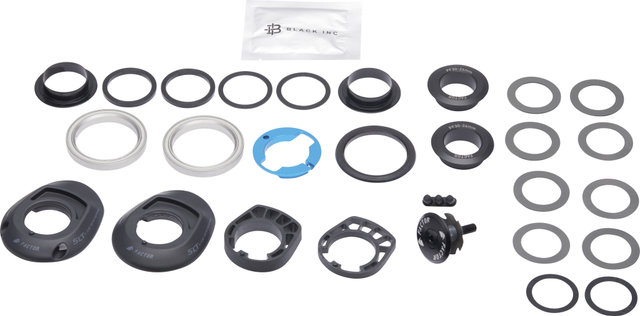

• 1 x CeramicSpeed SLT headset
• 1 x Black Inc spacer set
• 1 x assembly paste
