Factor OSTRO V.A.M. Disc T47a SRAM DUB tint over chrome carbon frame kit
Item number: 94533

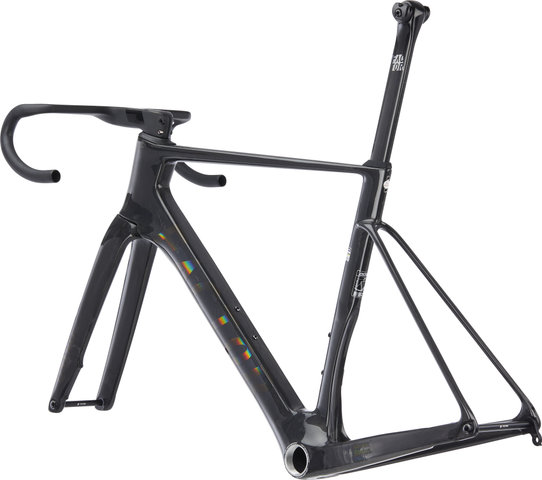

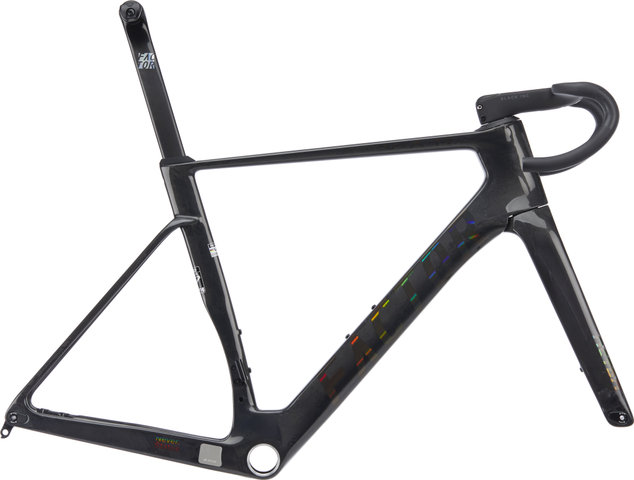

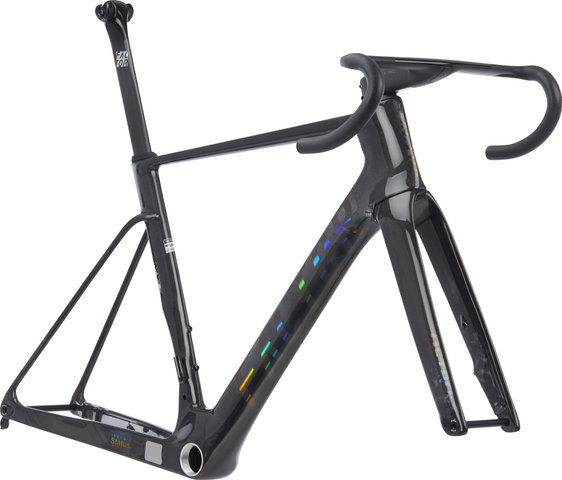

The Factor OSTRO V.A.M. Disc T47a SRAM DUB frame kit in tint over chrome
The unique design of the OSTRO V.A.M. T74a SRAM DUB frame kit has been further evolved for high performance. It is now even lighter, stiffer, and more aerodynamic than its predecessor.
The OSTRO V.A.M. represents the unparalleled precision and quality of Factor and allows you to build a super lightweight, aerodynamic racing bike with disc brakes. Both the frame and the fork and the seat post have been specifically optimized for optimum aerodynamics. The lightweight frame kit impresses with its outstanding stiffness, thanks to the use of TeXtreme carbon fibers. TeXtreme consists of flat fibers that can be laid wide, leading to an efficient use of materials. These fibers are supported by pitch-based carbon fibers. The frame offers a tire clearance of up to 32 mm, while the specially developed fork can also accommodate tires up to 32 mm wide.
You can easily mount wide tires to enjoy more riding comfort. With a high-end headset and bottom bracket from CeramicSpeed, you experience minimal friction losses during your ride. The aerodynamic handlebar stem unit from Black Inc contributes to the frame kit living up to its name. After all, OSTRO is one of the main Mediterranean winds.
Specifications:
- Application:
- Road
- Wheel Size:
- 28"
- Size:
- 49 cm, 52 cm, 54 cm, 56 cm, 58 cm, 61 cm
- Frame Material:
- carbon
- Fork Material:
- carbon
Technical Information - Frame:
- Wheel Standard:
- 12 x 142 mm (standard)
- Axle Type:
- 12 mm thru-axle
- Headset:
- IS41/28.6 – IS49/37(36) (top to bottom)

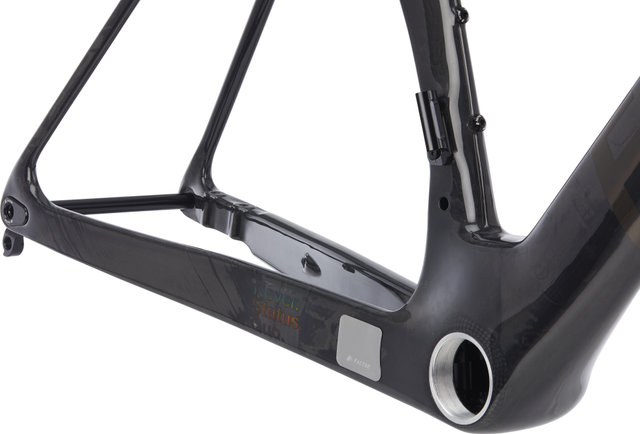

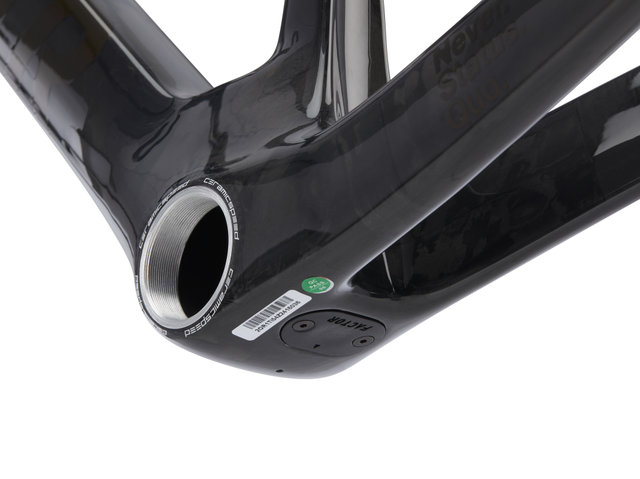

- Bottom Bracket Standard:
- T47a
- Shell Width:
- 77 mm
- Brake Mount:
- flat mount
- Front Derailleur Mount:
- Direct Mount (High Direct)
- Cable Routing:
- internal electronic

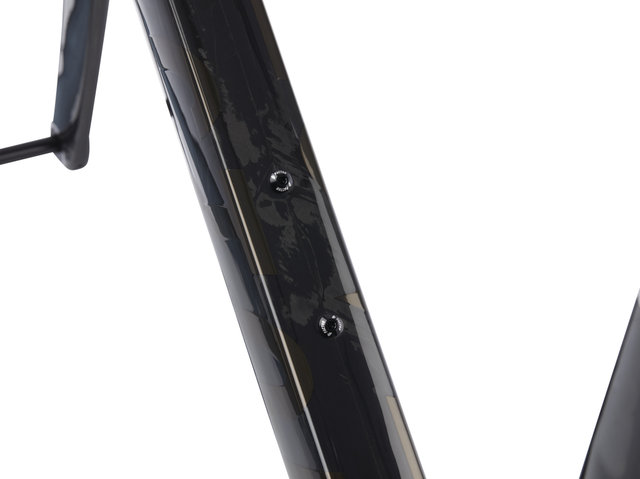

- Bottle Cage Mounts:
- 2
Technical Information - Fork:
- Steerer Tube:
- 1 1/8" - 1 3/8" tapered
- Wheel Standard:
- 12 x 100 mm (Standard)
- Axle Type:
- 12 mm thru-axle
- Brake Mount:
- flat mount
- Offset:
- 58 mm, 58.6 mm
- Trail:
- 43mm, 48 mm, 53 mm
- Over Locknut Dimension:
- 100 mm
- Material Steerer Tube:
- carbon
- Crown Material:
- carbon
- Blade Material:
- carbon
- Dropout Material:
- carbon
Approved For:
- Weight Limit:
- 110 kg (system weight)
- Rotor Size (max.):
- 160 mm
- Tyre Size (max.):
- 32-622 (700x32c)
- Chainrings:
- 1x, 2x
- Chainring Size (max.):
- 55 teeth
Features:
- Lightweight, aerodynamic frame-fork kit for high-performance road racing
- With tint over chrome paint finish
- Even stiffer, lighter, more aerodynamic than its predecessor
- Wind-optimized frame with tapered head tube
- High stiffness with low material usage through special carbon fiber setup

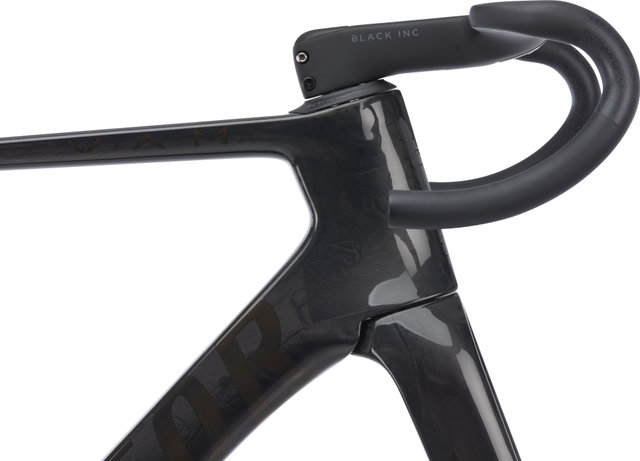

- Aerodynamic handlebar stem unit (120 mm drop, 80 mm reach, -6° angle)
- Friction-reducing headset and smooth-running bottom bracket from CeramicSpeed
- Generous tire clearance for more comfort
Geometry:
49 cm:- Stack:
- 503 mm
- Reach:
- 370 mm
- Seat Tube Length:
- 425 mm
- Chainstay Length:
- 405 mm
- Wheelbase:
- 970 mm
- BB Drop:
- 72 mm
- Seat Tube Angle:
- 74.5°
- Head Tube Angle:
- 71.7°
- Standover Height:
- 737 mm
- Fork Trail:
- 53 mm
52 cm:
- Stack:
- 523 mm
- Reach:
- 376 mm
- Seat Tube Length:
- 465 mm
- Chainstay Length:
- 405 mm
- Wheelbase:
- 971 mm
- BB Drop:
- 72 mm
- Seat Tube Angle:
- 74°
- Head Tube Angle:
- 72.5°
- Standover Height:
- 762 mm
- Fork Trail:
- 48 mm
54 cm:
- Stack:
- 542 mm
- Reach:
- 384 mm
- Seat Tube Length:
- 495 mm
- Chainstay Length:
- 405 mm
- Wheelbase:
- 985 mm
- BB Drop:
- 70 mm
- Seat Tube Angle:
- 74°
- Head Tube Angle:
- 72.5°
- Standover Height:
- 781 mm
- Fork Trail:
- 48 mm
56 cm:
- Stack:
- 565 mm
- Reach:
- 392 mm
- Seat Tube Length:
- 525 mm
- Chainstay Length:
- 405 mm
- Wheelbase:
- 987 mm
- BB Drop:
- 70 mm
- Seat Tube Angle:
- 73.5°
- Head Tube Angle:
- 73.3°
- Standover Height:
- 804 mm
- Fork Trail:
- 43 mm
58 cm:
- Stack:
- 587 mm
- Reach:
- 401 mm
- Seat Tube Length:
- 545 mm
- Chainstay Length:
- 408 mm
- Wheelbase:
- 1006 mm
- BB Drop:
- 70 mm
- Seat Tube Angle:
- 73.5°
- Head Tube Angle:
- 73.3°
- Standover Height:
- 817 mm
- Fork Trail:
- 43 mm
61 cm:
- Stack:
- 611 mm
- Reach:
- 409 mm
- Seat Tube Length:
- 570 mm
- Chainstay Length:
- 410 mm
- Wheelbase:
- 1022 mm
- BB Drop:
- 70 mm
- Seat Tube Angle:
- 73.5°
- Head Tube Angle:
- 73.3°
- Standover Height:
- 840 mm
- Fork Trail:
- 43 mm
Models:
The frameset is supplied with a bottom bracket (T47a SRAM DUB), handlebar/stem unit and a 350 mm seatpost. Accordingly, the selection size is made up of frame size, stem length x handlebar width and setback (always 25 mm).For example, 49 cm, 90 mm x 40 cm, SB 25 mm means: frame in size 49 cm, stem length 90 mm, handlebar width 40 cm, seatpost setback 25 mm.

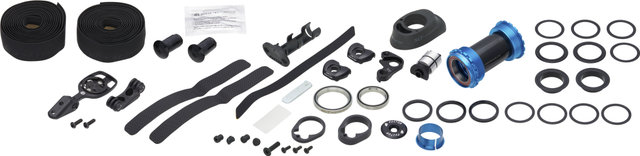

Contents:
- 1 x Factor OSTRO V.A.M. frame tint over chrome

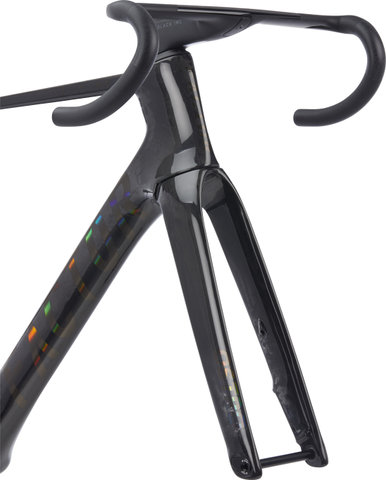

- 1 x Factor OSTRO V.A.M. fork

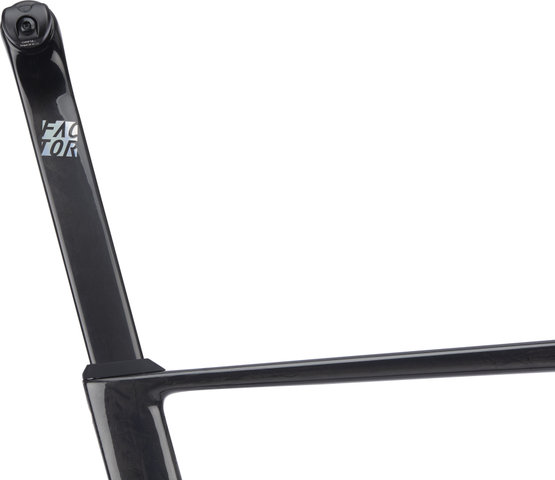

- 1 x Factor OSTRO V.A.M. seat post
- 1 x Black Inc Aero Integrated handlebar stem unit
- 1 x CeramicSpeed SRAM DUB T47a bottom bracket
- 1 x CeramicSpeed headset
- 1 x Spacer kit for bottom bracket
- 2 x dust caps
- 2 x Black Inc OSTRO V.A.M. bottle cages
- 1 x pair of handlebar tape
- 1 x pair of bar end plugs
- 1 x 5 mm headset cover
- 1 x 20 mm headset cap
- 1 x 2.5 mm Factor spacer
- 1 x 5 mm Factor spacer
- 1 x 10 mm Factor spacer
- 1 x derailleur hanger
- 1 x assembly paste
