Factor OSTRO V.A.M. Disc T47a Shimano geometric stripe carbon frame kit

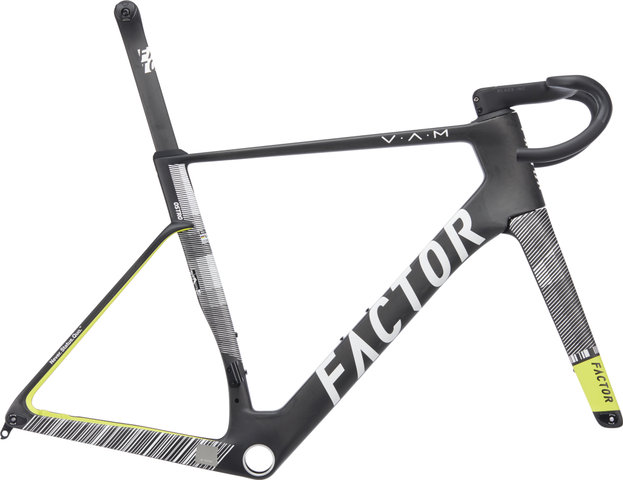

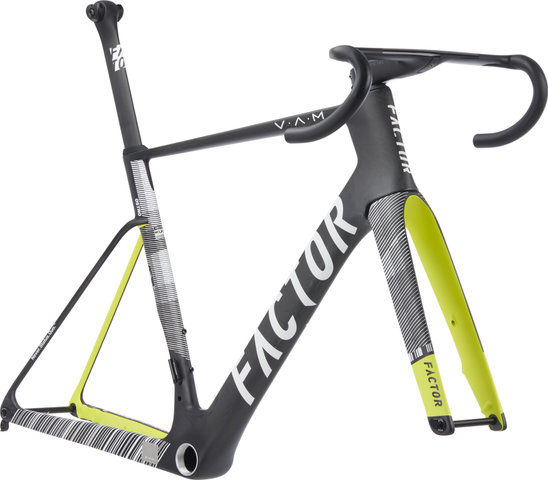

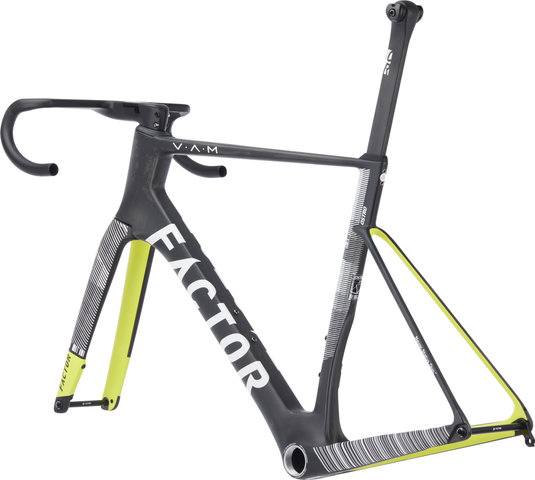

The Factor OSTRO V.A.M. Disc T47a Shimano frame kit in geometric stripe

The unique design of the OSTRO V.A.M. T74a Shimano frame kit has been further developed for even higher performance. It is now even lighter, stiffer, and more aerodynamic than its predecessor.
The OSTRO V.A.M. stands for Factor's unparalleled precision and quality, allowing you to build a super light, aerodynamic racing bike with disc brakes. Both the frame and the fork, as well as the seat post, have been specifically optimized for optimal aerodynamics. The lightweight frame kit impresses with its outstanding stiffness, thanks to the use of TeXtreme carbon fibers. TeXtreme consists of flat fibers that can be laid broadly, leading to an efficient use of material. These fibers are supported by pitch-based carbon fibers. The frame offers tire clearance of up to 32 mm, while the specially developed fork can also accommodate tires up to 32 mm wide.

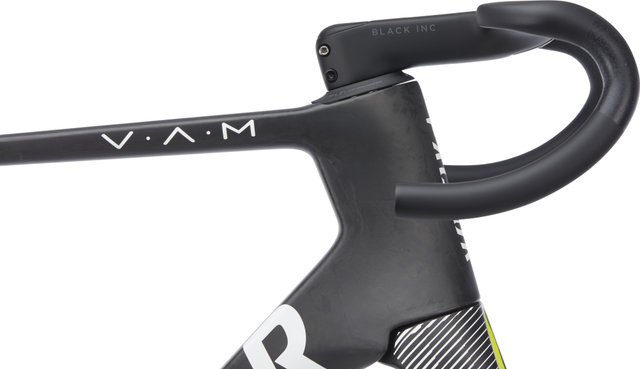

Therefore, you can easily mount wide tires to enjoy more riding comfort. With a high-end headset and bottom bracket from CeramicSpeed, you experience minimal friction losses during your ride. The aerodynamic handlebar-stem unit from Black Inc ensures that the frame kit lives up to its name. After all, OSTRO is one of the main Mediterranean winds.

Comfortable, fast, in pursuit of classics, and a style icon – the Factor OSTRO V.A.M. is all in one and will excite you on every ride.

Specifications:

Application:

Road

Wheel Size:

28"

Size:

49 cm, 52 cm, 54 cm, 56 cm, 58 cm, 61 cm

Frame Material:

carbon

Fork Material:

carbon

Technical Information - Frame:

Wheel Standard:

12 x 142 mm (standard)

Axle Type:

12 mm thru-axle

Headset:

IS41/28.6 – IS49/37(36) (top to bottom)

Bottom Bracket Standard:

T47a

Shell Width:

77 mm

Brake Mount:

flat mount

Chainstay Thickness:

Front Derailleur Mount:

Direct Mount (High Direct)

Cable Routing:

internal electronic

Bottle Cage Mounts:

2

Technical Information - Fork:

Steerer Tube:

1 1/8" - 1 3/8" tapered

Wheel Standard:

12 x 100 mm (Standard)

Axle Type:

12 mm thru-axle

Brake Mount:

flat mount

Offset:

58 mm, 58.6 mm

Trail:

43mm, 48 mm, 53 mm

Over Locknut Dimension:

100 mm

Material Steerer Tube:

carbon

Crown Material:

carbon

Blade Material:

carbon

Dropout Material:

carbon

Approved For:

Weight Limit:

110 kg (system weight)

Rotor Size (max.):

160 mm

Tyre Size (max.):

32-622 (700x32c)

Chainrings:

1x, 2x

Chainring Size (max.):

55 teeth

Features:

• Lightweight, aerodynamic frame-fork kit for high-performance road racing
• With geometric stripe paintwork
• Even stiffer, lighter, more aerodynamic than the predecessor
• Wind-optimized frame with tapered head tube
• High stiffness with low material usage through special carbon fiber setup
• Aerodynamic handlebar stem unit (120 mm drop, 80 mm reach, -6° angle)
• Friction-reducing headset and smooth-running bottom bracket from CeramicSpeed
• Generous tyre clearance for more comfort

Geometry:

49 cm:

Stack:

503 mm

Reach:

370 mm

Seat Tube Length:

425 mm

Chainstay Length:

405 mm

Wheelbase:

970 mm

BB Drop:

72 mm

Seat Tube Angle:

74.5°

Head Tube Angle:

71.7°

Standover Height:

737 mm

Gabel Offset: 58 mm

Gabel Trail:

53 mm

52 cm:

Stack:

523 mm

Reach:

376 mm

Seat Tube Length:

465 mm

Chainstay Length:

405 mm

Wheelbase:

971 mm

BB Drop:

72 mm

Seat Tube Angle:

74°

Head Tube Angle:

72.5°

Standover Height:

762 mm

Gabel Offset: 58 mm

Gabel Trail:

48 mm

54 cm:

Stack:

542 mm

Reach:

384 mm

Seat Tube Length:

495 mm

Chainstay Length:

405 mm

Wheelbase:

985 mm

BB Drop:

70 mm

Seat Tube Angle:

74°

Head Tube Angle:

72.5°

Standover Height:

781 mm

Gabel Offset: 58 mm

Gabel Trail:

48 mm

56 cm:

Stack:

565 mm

Reach:

392 mm

Seat Tube Length:

525 mm

Chainstay Length:

405 mm

Wheelbase:

987 mm

BB Drop:

70 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

73.3°

Standover Height:

804 mm

Gabel Offset: 58.6 mm

Gabel Trail:

43 mm

58 cm:

Stack:

587 mm

Reach:

401 mm

Seat Tube Length:

545 mm

Chainstay Length:

408 mm

Wheelbase:

1006 mm

BB Drop:

70 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

73.3°

Standover Height:

817 mm

Gabel Offset: 58.6 mm

Gabel Trail:

43 mm

61 cm:

Stack:

611 mm

Reach:

409 mm

Seat Tube Length:

570 mm

Chainstay Length:

410 mm

Wheelbase:

1022 mm

BB Drop:

70 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

73.3°

Standover Height:

840 mm

Gabel Offset: 58.6 mm

Gabel Trail:

43 mm

Models:

The frameset comes with a bottom bracket (T47a Shimano), handlebar/stem unit, and a 350 mm seatpost. Thus, the size selection consists of frame size, stem length x handlebar width, and setback (always 25 mm).
For example, 49 cm, 90 mm x 40 cm, SB 25 mm means: Frame in size 49 cm, stem length 90 mm, handlebar width 40 cm, seatpost setback 25 mm.

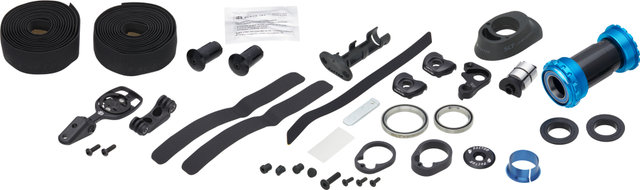

Contents:

• 1 x Factor OSTRO V.A.M. frame geometric stripe
• 1 x Fork Factor OSTRO V.A.M.
• 1 x Seatpost Factor OSTRO V.A.M.
• 1 x Black Inc Aero Integrated handlebar stem unit
• 1 x Bottom bracket CeramicSpeed Shimano T47a
• 1 x CeramicSpeed headset
• 1 x Spacer kit for bottom bracket
• 2 x dust caps
• 2 x Bottle cages Black Inc OSTRO V.A.M.
• 1 x pair of handlebar tape
• 1 x pair of bar end plugs
• 1 x headset cover 5 mm
• 1 x Headset cover 20 mm
• 1 x Factor spacer 2.5 mm
• 1 x Spacer Factor 5 mm
• 1 x Spacer Factor 10 mm
• 1 x derailleur hanger
• 1 x assembly paste
