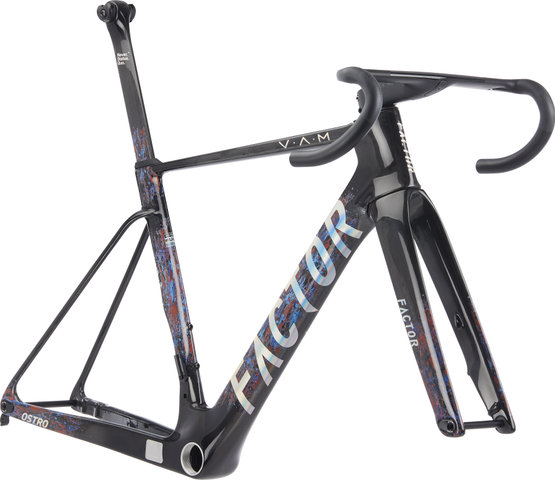

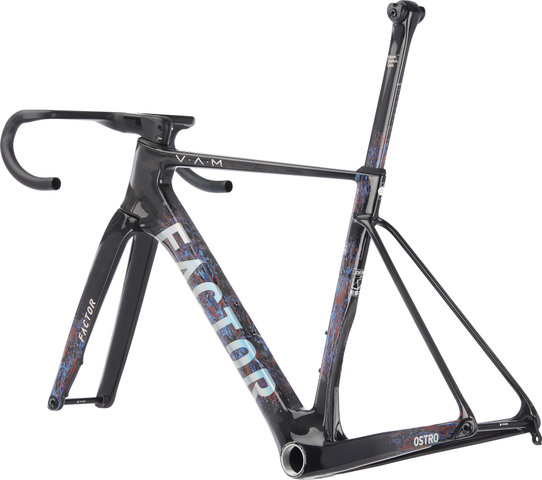

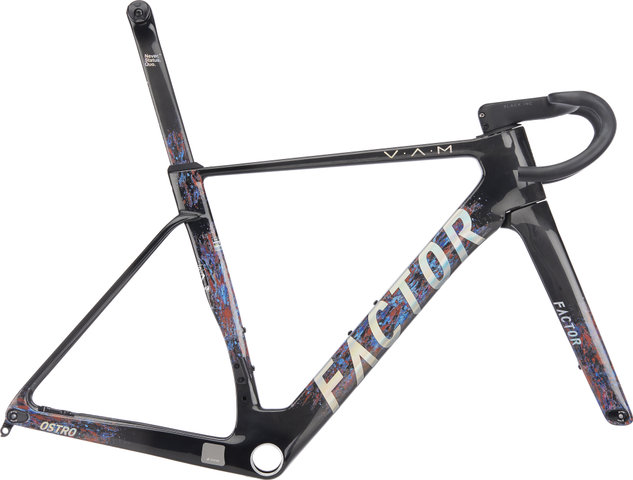

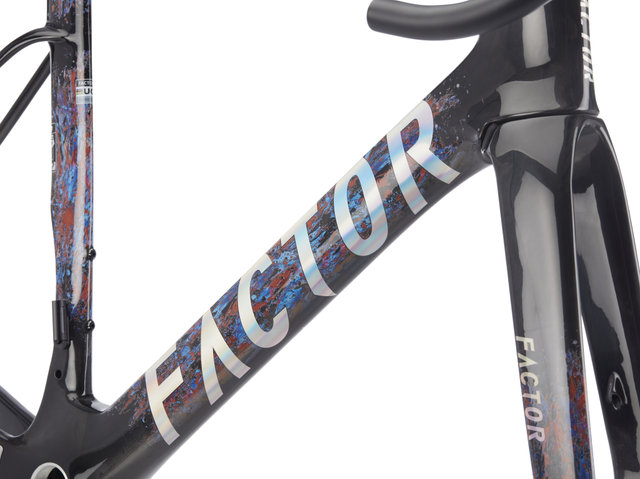

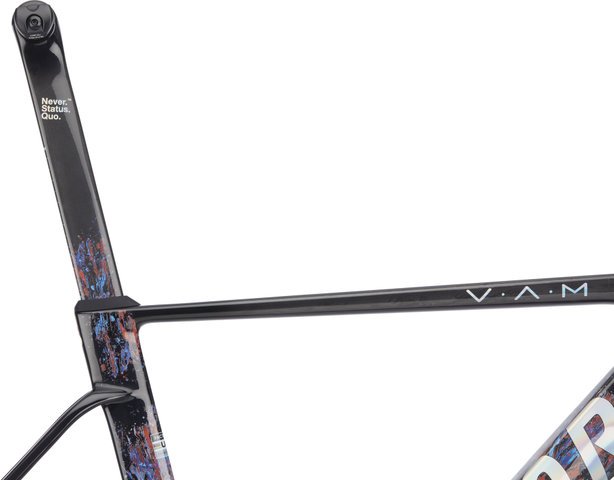

Factor OSTRO V.A.M Disc TdF Limited Edition Carbon Frame Kit

Specifications:

Application:

Road

Wheel Size:

28"

Size:

49 cm, 52 cm, 54 cm, 56 cm, 58 cm, 61 cm

Frame Material:

carbon

Fork Material:

carbon

Technical Information - Frame:

Wheel Standard:

12 x 142 mm (standard)

Axle Type:

12 mm thru-axle

Headset:

IS41/28.6 – IS49/37(36) (top to bottom)

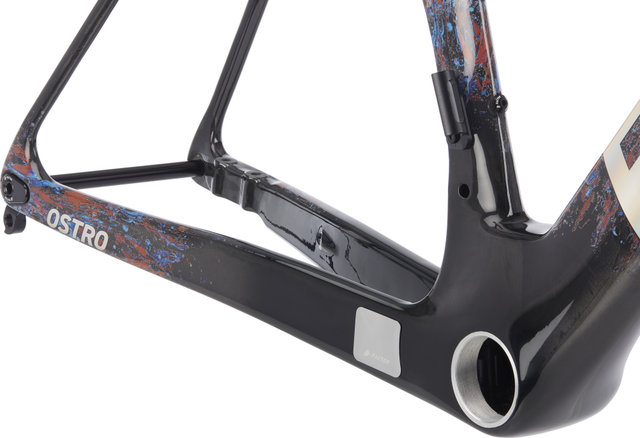

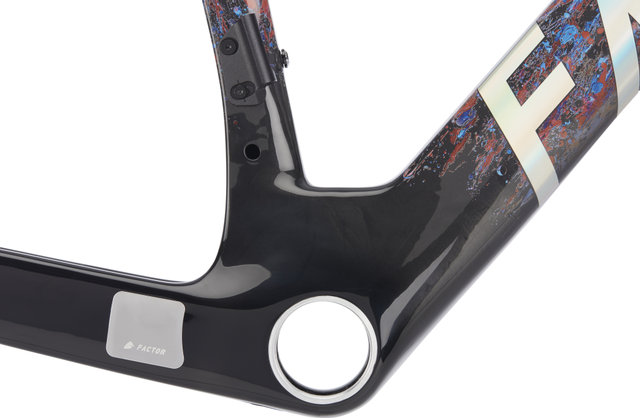

Bottom Bracket Standard:

T47a

Shell Width:

77 mm

Brake Mount:

flat mount

Front Derailleur Mount:

Direct Mount (High Direct)

Cable Routing:

internal electronic

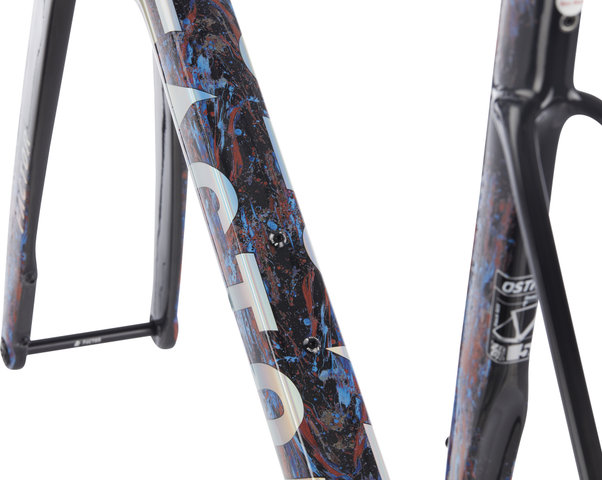

Bottle Cage Mounts:

2

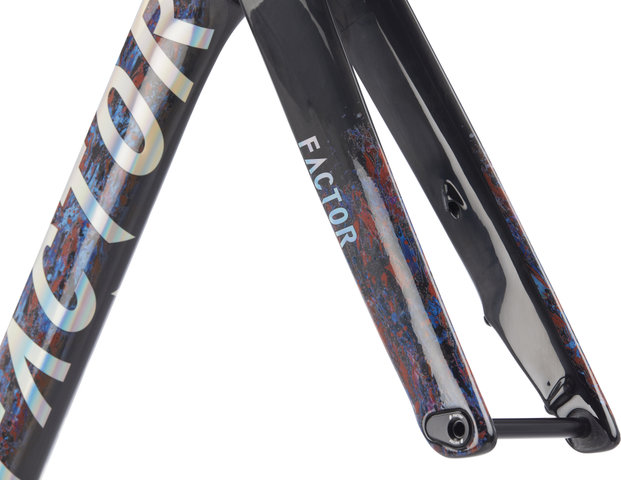

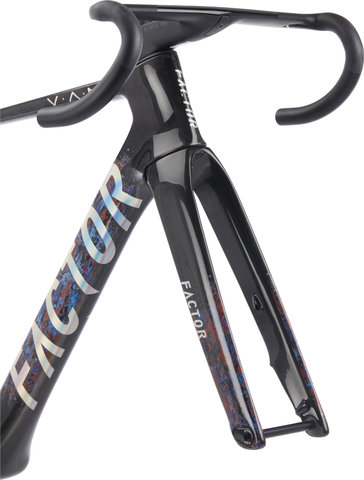

Technical Information - Fork:

Steerer Tube:

1 1/8" - 1 3/8" tapered

Wheel Standard:

12 x 100 mm (Standard)

Axle Type:

12 mm thru-axle

Brake Mount:

flat mount

Over Locknut Dimension:

100 mm

Material Steerer Tube:

carbon

Crown Material:

carbon

Blade Material:

carbon

Dropout Material:

carbon

Approved For:

Weight Limit:

110 kg (system weight)

Rotor Size (max.):

160 mm

Tyre Size (max.):

32-622 (700x32c)

Chainrings:

1x, 2x

Chainring Size (max.):

54 teeth

Features:

• Lightweight, aerodynamic frame-fork kit for high-performance road racing
• Even stiffer, lighter, and more aerodynamic than its predecessor
• Wind-optimized frame with tapered head tube
• High stiffness with low material usage through special carbon fiber setup

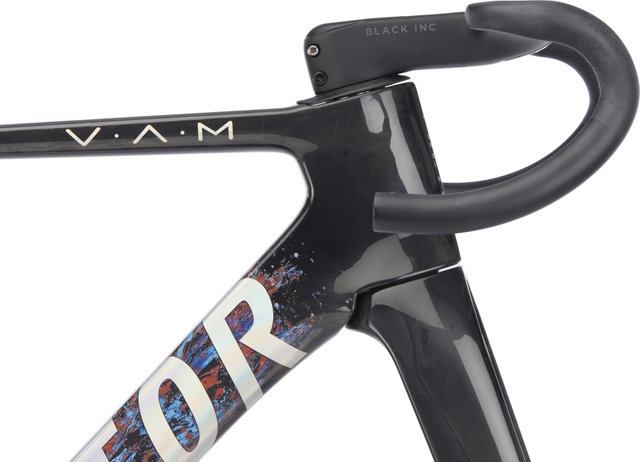

• Aerodynamic handlebar stem unit (120 mm drop, 80 mm reach, -6° angle)
• Friction-reducing headset and smooth-running bottom bracket from CeramicSpeed
• Generous tyre clearance for more comfort

Geometry:

49 cm:

Stack:

503 mm

Reach:

370 mm

Seat Tube Length:

454 mm

Chainstay Length:

405 mm

Wheelbase:

969 mm

BB Drop:

72 mm

Seat Tube Angle:

74.5°

Head Tube Angle:

71.1°

Standover Height:

737 mm

Fork Offset: 58 mm

Fork Rake:

48 mm

Stem Length:

90 mm

Handlebar Width:

380 mm

Seatpost Setback:

0 mm

52 cm:

Stack:

523 mm

Reach:

376 mm

Seat Tube Length:

483 mm

Chainstay Length:

405 mm

Wheelbase:

971 mm

BB Drop:

72 mm

Seat Tube Angle:

74°

Head Tube Angle:

72.5°

Standover Height:

762 mm

Fork Offset: 58 mm

Fork Rake:

48 mm

Stem Length:

100 mm

Handlebar Width:

380 mm

Seatpost Setback:

0 mm

54 cm:

Stack:

542 mm

Reach:

384 mm

Seat Tube Length:

502 mm

Chainstay Length:

405 mm

Wheelbase:

985 mm

BB Drop:

70 mm

Seat Tube Angle:

74°

Head Tube Angle:

72.5°

Standover Height:

781 mm

Fork Offset: 58 mm

Fork Rake:

48 mm

Stem Length:

110 mm

Handlebar Width:

380 mm

Seatpost Setback:

0 mm

56 cm:

Stack:

565 mm

Reach:

392 mm

Seat Tube Length:

524 mm

Chainstay Length:

405 mm

Wheelbase:

987 mm

BB Drop:

70 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

73.3°

Standover Height:

804 mm

Fork Offset: 58.6 mm

Fork Rake:

43 mm

Stem Length:

110 mm

Handlebar Width:

400 mm

Seatpost Setback:

0 mm

58 cm:

Stack:

587 mm

Reach:

401 mm

Seat Tube Length:

531 mm

Chainstay Length:

408 mm

Wheelbase:

1006 mm

BB Drop:

70 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

73.3°

Standover Height:

817 mm

Fork Offset: 58.6 mm

Fork Rake:

43 mm

Stem Length:

120 mm

Handlebar Width:

400 mm

Seatpost Setback:

0 mm

61 cm:

Stack:

611 mm

Reach:

409 mm

Seat Tube Length:

554 mm

Chainstay Length:

410 mm

Wheelbase:

1022 mm

BB Drop:

70 mm

Seat Tube Angle:

73.3°

Head Tube Angle:

73.5°

Standover Height:

840 mm

Fork Offset: 58.6 mm

Fork Rake:

43 mm

Stem Length:

120 mm

Handlebar Width:

420 mm

Seatpost Setback:

0 mm

Models:

The frame set comes with a bottom bracket (T47a SRAM DUB or Shimano), handlebar-stem unit, and a seatpost in 350 mm length.

Contents:

• 1 x Factor OSTRO V.A.M. frame geometric stripe
• 1 x Factor OSTRO V.A.M. fork
• 1 x Factor OSTRO V.A.M. seatpost
• 1 x Black Inc Aero Integrated handlebar stem unit
• 1 x CeramicSpeed SRAM DUB T47a or Shimano T47a bottom bracket
• 1 x CeramicSpeed headset
• 1 x Spacer kit for bottom bracket
• 2 x dust caps
• 2 x Black Inc OSTRO V.A.M. bottle cages
• 1 x pair handlebar tape
• 1 x pair bar end plugs
• 1 x 5 mm headset cover
• 1 x 20 mm headset cover
• 1 x Factor spacer 2.5 mm
• 1 x Factor spacer 5 mm
• 1 x Factor spacer 10 mm
• 1 x derailleur hanger
• 1 x assembly paste
