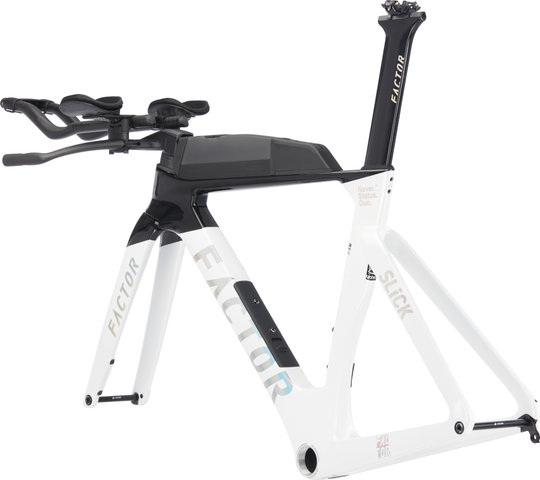

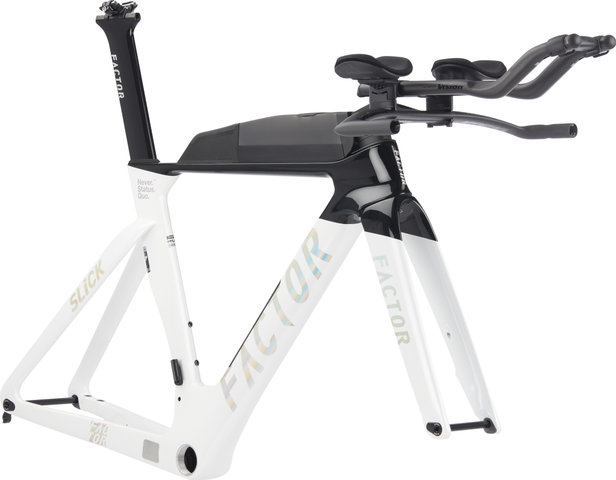

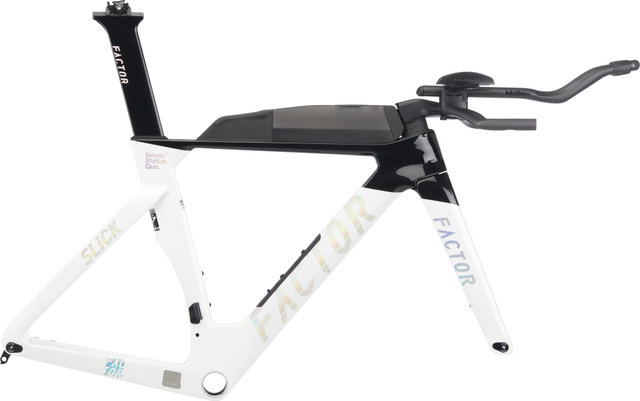

Factor Slick Frame Kit

Specifications:

Application:

Triathlon, Time Trial

Wheel Size:

28"

Size:

54 cm, 56 cm, 58 cm

Frame Material:

carbon

Fork Material:

carbon

Frame Technical Data:

Wheel Standard:

12 x 142 mm (standard)

Axle Type:

12 mm thru-axle

Headset:

CeramicSpeed IS41/28,6 - IS49/37(36) (top to bottom)

Bottom Bracket Standard:

T47

Shell Width:

77 mm

Brake Mount:

flat mount

Front Derailleur Mount:

Direct Mount (High Direct)

Cable Routing:

internal electronic

Bottle Cage Mounts:

2

Fork Technical Data:

Steerer Tube:

1 1/8" - 1 3/8" tapered

Wheel Standard:

12 x 100 mm (Standard)

Axle Type:

12 mm thru-axle

Brake Mount:

flat mount

Over Locknut Dimension:

100 mm

Material Steerer Tube:

carbon

Crown Material:

carbon

Blade Material:

carbon

Dropout Material:

carbon

Approved For:

Rotor Size (max.):

160 mm

Tyre Size (max.):

32-622 (700x32c)

Chainrings:

1x, 2x

Chainring Size (max.):

56 teeth

Features:

• Lightweight, aerodynamic frame-fork kit for high-performance competition
• Stiffer, lighter, more aerodynamic than its predecessor
• Wind-optimized frame with tapered head tube
• High stiffness with low material usage through special carbon fiber setup
• Friction-reducing headset and smooth-running bottom bracket from CeramicSpeed
• Generous tyre clearance for more comfort
• 600 ml hydration reservoir on the top tube
• Storage compartment on the top tube
• Additional storage space in the downtube

Geometry:

Stack:

520 mm

Reach:

415 mm

Chainstay Length:

405 mm

Wheelbase:

998 mm

BB Drop:

76 mm

Seat Tube Angle:

76°

Head Tube Angle:

72.5°

Stem Length:

90mm

Handlebar Width:

400 mm

Setback Seatpost:

0 mm

Stack:

545 mm

Reach:

430 mm

Chainstay Length:

405 mm

Wheelbase:

1021 mm

BB Drop:

76 mm

Seat Tube Angle:

76°

Head Tube Angle:

72.5°

Stem Length:

90 mm

Handlebar Width:

400 mm

Setback Seatpost:

0 mm

Stack:

570 mm

Reach:

445 mm

Chainstay Length:

405 mm

Wheelbase:

1044 mm

BB Drop:

76 mm

Seat Tube Angle:

76°

Head Tube Angle:

72.5°

Stem Length:

90 mm

Handlebar Width:

400 mm

Setback Seatpost:

0 mm

Manufacturer Numbers:

54 cm:

FS-P154SW00400

56 cm:

FS-P156SW00400

58 cm:

FS-P156SW00400

Contents:

• 1 x Factor Slick frame
• 1 x Factor Slick carbon fork
• 1 x Factor Slick carbon seatpost

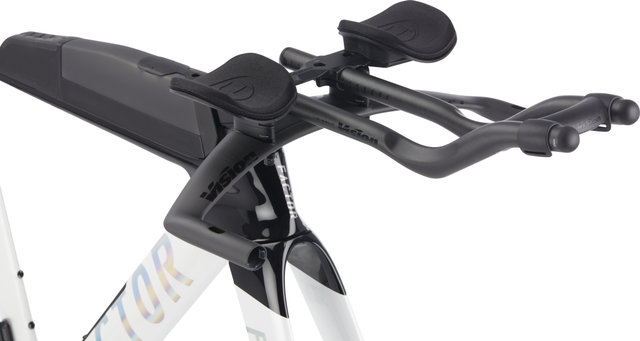

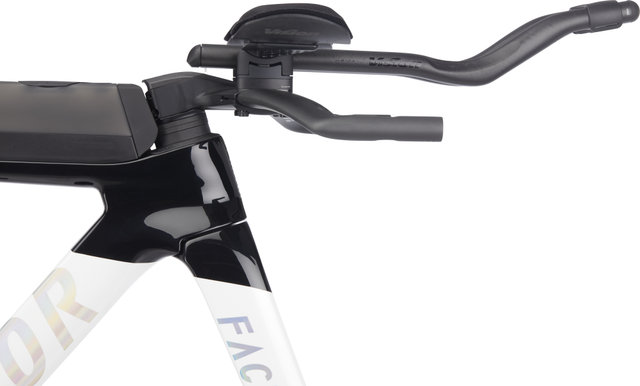

• 1 x Vision Metron TFA carbon handlebar-stem unit with extensions

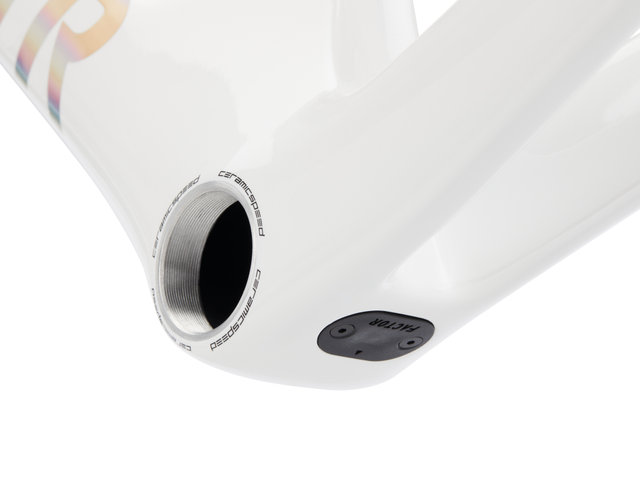

• 1 x CeramicSpeed T47 bottom bracket for 30 mm axle
• 1 x CeramicSpeed headset
• 2 x dust caps
• 1 pair of handlebar tape
• 1 x pair of bar end plugs
• 1 x seatpost seal cover
• 1 x headset cover 5 mm
• 1 x headset cover 20 mm
• 1 x Factor spacer 2.5 mm
• 1 x Factor spacer 5 mm
• 1 x Factor spacer 10 mm
• 1 x battery holder
• 1 x hydration hose port
• 1 x derailleur hanger
• 1 x chainstay protector
• 1 x assembly paste
