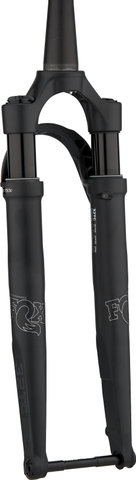

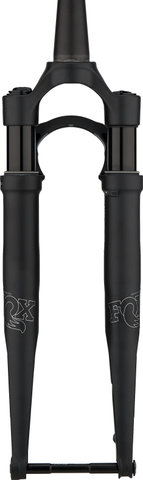

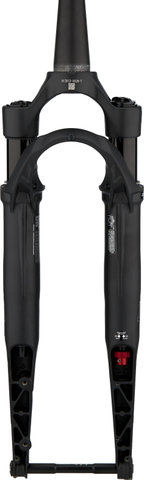

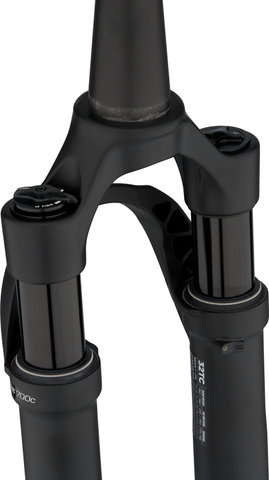

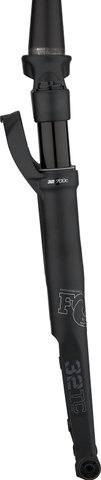

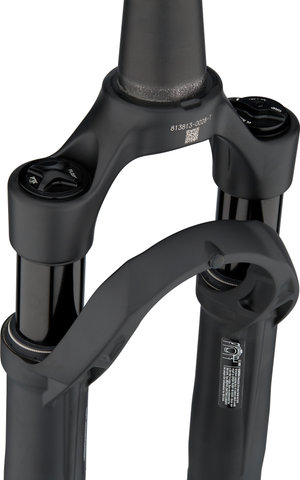

Fox Racing Shox 32 Float TC 28" GRIP Performance Suspension Fork - 2022 Model

Specifications:

Application:

Gravel

Wheel Size:

28"

Suspension Type:

air

Travel:

40 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle

Wheel Standard:

12 x 100 mm (standard)

Brake Mount:

flat mount

Technical Information:

Offset:

45 mm

Steerer Tube Length:

264 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Axle to Crown:

435.5 mm

Over Locknut Dimension:

100 mm

Stanchion Tube Diameter:

32 mm

Steerer Tube Material:

aluminium

Crown Material:

aluminium

Stanchion Tube Material:

aluminium

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

3-position lever (Open / Medium / Firm) with Micro Adjust

Rebound:

yes (10 levels)

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

700c x 45 mm (with fender) / 700c x 50 mm (without fender)

Note:

The tyre clearance must be checked with the fork fully compressed every time you change the tyre or the rim. It should be at least 8.5 mm all around.

Rotor Size (max.):

180 mm

Air Pressure (max.):

150 psi (10.3 bar)

Features:

• GRIP damping cartridge with three-position lever
• lightweight, aerodynamic design with narrow crown for sufficient space to the down tube
• Micro Adjust: rasters between Open, Medium and Firm mode allow for intermediate settings
• discreet adjustment knobs
• air and oil channels in the dip tubes for continuous lubrication of the foam rings and prevention of excessive pressure increase
• Flat Mount for 160 or 180 mm brake rotor size

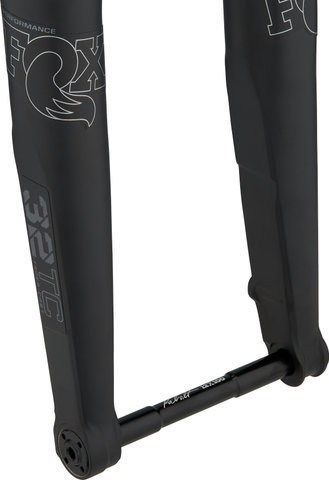

• with light Kabolt thru-axle
• performance series with black anodised uprights

Manufacturer Number:

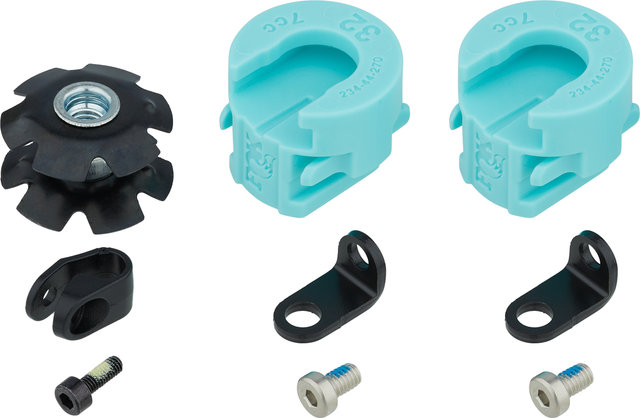

Contents:

• 1 x Fox Racing Shox 32 Float TC 28" GRIP Performance suspension fork
• 1 x Fox Racing Shox Kabolt thru-axle
• 2 x Fox Racing Shox volume spacers
• 1 x hose guides
• 1 x cable guide bolt
• 2 x fender mounts
• 2 x bolts for fender mounts
• 1 x star nut
