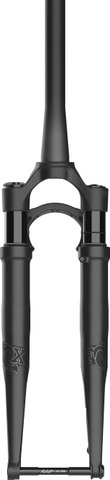

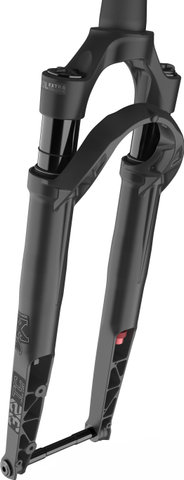

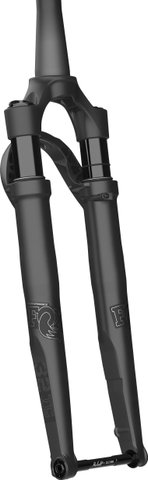

Fox Racing Shox 32 Float TC 28" GRIP Performance Suspension Fork

Specifications:

Application:

Gravel

Wheel Size:

28"

Suspension Type:

air

Travel:

40 mm

Steerer Tube:

1 1/8" – 1.5" tapered

Axle Type:

thru-axle

Wheel Standard:

12 x 100 mm

Brake Mount:

disc PM6 (direct mount 160 mm)

Technical Information:

Offset:

45 mm

Steerer Tube Length:

329 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Axle to Crown:

435 mm

Over Locknut Dimension:

100 mm

Stanchion Tube Diameter:

32 mm

Material Steerer Tube:

aluminium

Crown Material:

aluminium

Stanchion Tube Material:

aluminium

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

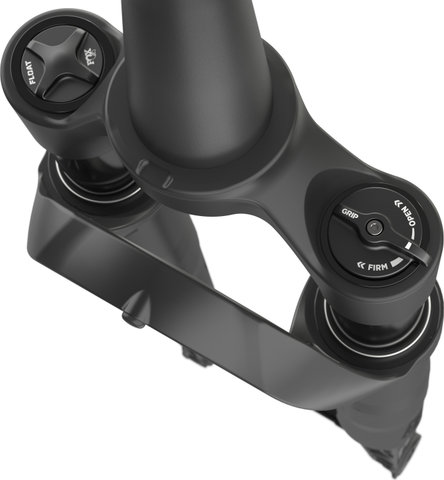

Low Speed, 3-position (Open, Medium, Firm)

Rebound:

Low Speed (10 steps)

Suspension Stiffness:

via air pressure

remote:

no

Travel Adjustment:

no

Approved For:

Note:

The tyre clearance must be checked with the fork fully compressed every time you change the tyre or the rim. It should be at least 8.5 mm all around.

Rotor Size (max.):

180 mm

Manufacturer Number:

910-21-316

Manufacturer:

FOX Factory GmbH
Gewerbepark 6
66989 Höhfröschen
Germany
info@ridefox.com

Contents:

• 1 x Fox Racing Shox 32 Float TC 28" GRIP Performance suspension fork

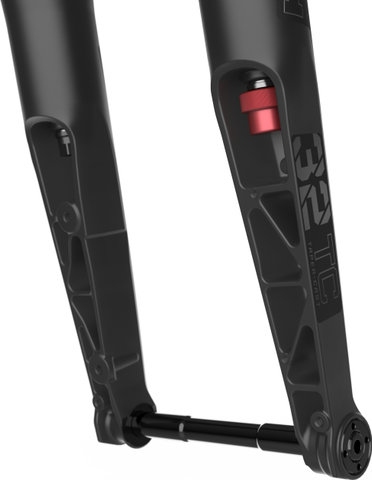

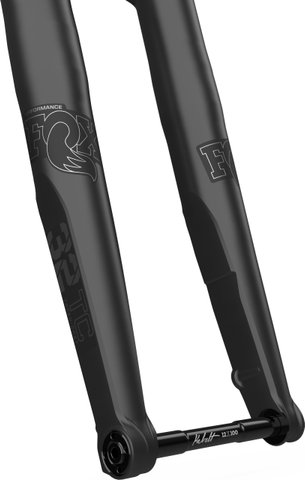

• 1 x thru-axle Fox Racing Shox Kabolt
